16 Inch Cast Steel Trunnion Ball Valve

16 Inch Cast Steel Trunnion Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 16-inch-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 16 INCH FLANGE CAST STEEL TRUNNION BALL VALVE Trunnion Mounted Ball......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 16-inch-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 16 INCH FLANGE CAST STEEL TRUNNION BALL VALVE Trunnion Mounted Ball...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 16-inch-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

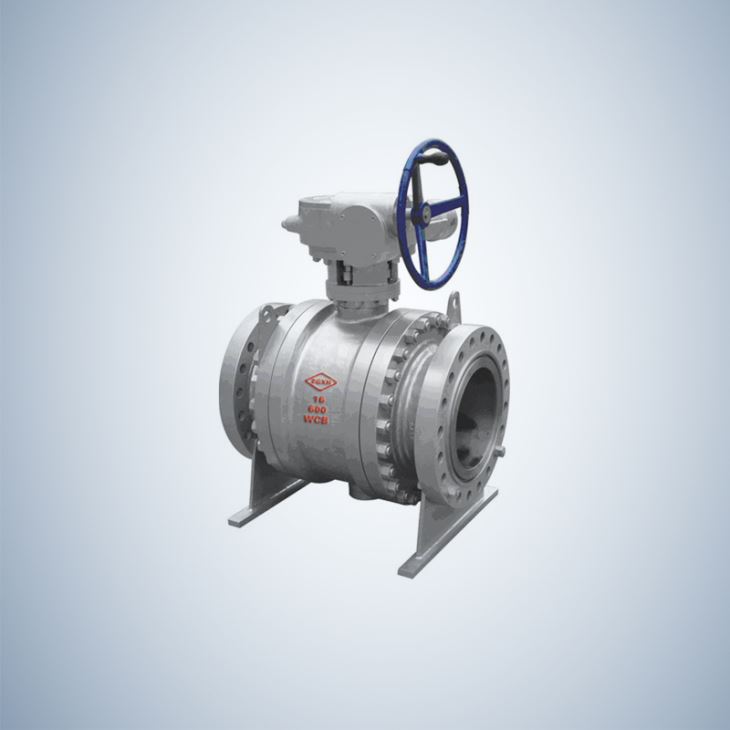

16 INCH FLANGE CAST STEEL TRUNNION BALL VALVE

Product Specifications :

Trunnion Mounted Ball Valve

Two Pieces/Three Pieces Cast Steel Body Ball Valve

Full Bore & Reduced Bore

Anti-static Device

Blow-out Proof Stem

Fire Safe Design

Emergency Sealant Injector

Vent Valve, Drain Valve

Lifting lugs and supporting feet (8" & larger)

Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic


STANDARDS

1. DESIGN AND MANUFACTURE:

BS 5351/API 608/API 6D/ASME B16.34

2. FACE TO FACE DIMENSIONS:

ASME B16.10/API 6D

3. FLANGE ENDS DIMENSIONS:

NPS1/2”-24”


ASME B16.5


4. NPS 26”& ABOVE:

ASME B16.47

5. BW ENDS DIMENSIONS:

ASME B16.25

6. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

7. FIRE SAFE DESIGN:

API 607/API 6FA

8. NORMAL PRESSURE:

CLASS 150~1500

9. NORMAL DIAMETER:

NPS 2″~36″


Materials

BODY:

Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys, Other materials under request

SOFT SEATS: PTFE, RPTFE, PEEK, DEVLON, NYLON, Other materials under request

METAL SEAT: Tungsten Carbide (TC), Ni60...Other materials under request.

TRIM: A105+EP, 304, 316, 410, MONEL, Other materials under request



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
