WCB Cast Steel Trunnion Mounted Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China Wcb cast steel trunnion ball valve, carbon steel ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WCB CAST STEEL TRUNNION BALL VALVE (1)... Products...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China Wcb cast steel trunnion ball valve, carbon steel ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WCB CAST STEEL TRUNNION BALL VALVE (1)...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China wcb cast steel trunnion ball valve, carbon steel ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

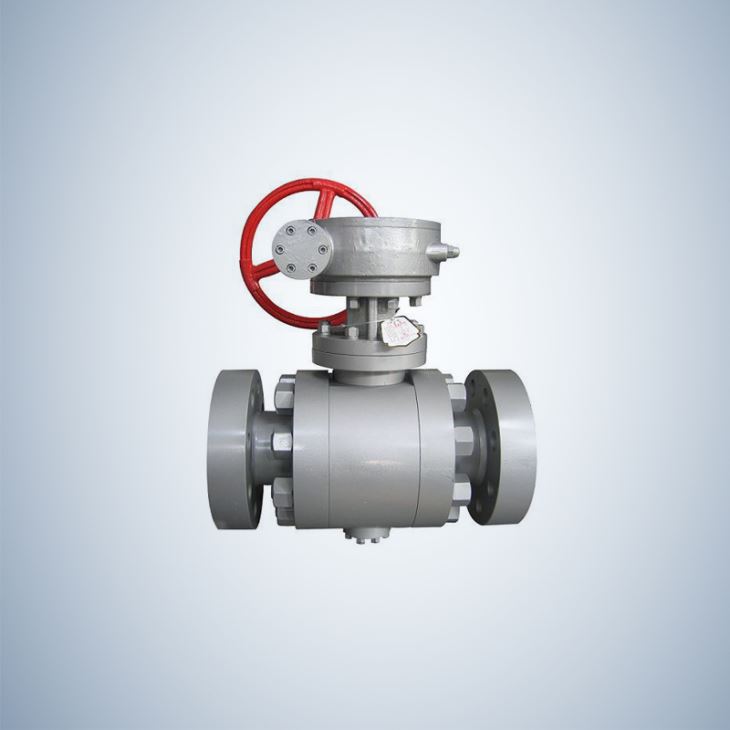

WCB CAST STEEL TRUNNION BALL VALVE
Features :
The functions of products: high pressure trunnion ball valve is to cut off or connect the medium,is suitable for petroleum,chemical industry,fire and power station and different conditions pipe systems .
Suitable medium :
water ,gas,oil,citric acid,acetic acid ,urea medium, corrosive &strong oxidizing medium.
Operation method :
Level,pneumatic,electric,hydraulic and pneumatic_hydraulic.
Product Specifications :
Model no. : QG4
1. Size:2"~36",DN50~900
2. Pressure:300LB/600LB/900LB
3. Material:cast steel
4. Medium:water,oil,gas,etc.
5. Driving mode:gear operated
Design description :
1. Full port design
2. BB,Bolted bonnet ,split body
3. Trunnion mounted ball type
4. Blow-out proof stem
5. Fire durable construction
6. Anti static device
7. Stopper device
8. ISO5211 mounting pad
9. Flange ends
10.Available with gear box
API Series main connection size
Class 150Lb
DN(inch) | L | D | K | d | Y | b | Z-do | WS | HS | HW | HD |
6 | 394 | 279 | 241.5 | 216 | - | 26 | 8-22 | 1000 | 305 | 470 | 540 |
8 | 457 | 343 | 298.5 | 270 | - | 29 | 8-22 | - | - | 520 | 580 |
10 | 533 | 406 | 362 | 324 | - | 31 | 12-25 | - | - | 610 | 640 |
12 | 610 | 483 | 432 | 381 | - | 32 | 12-25 | - | - | 650 | 690 |
14 | 686 | 533 | 476 | 413 | - | 35 | 12-29 | - | - | 740 | 785 |
16 | 762 | 597 | 540 | 470 | - | 37 | 16-29 | - | - | 795 | 830 |
18 | 864 | 635 | 578 | 533 | - | 40 | 16-32 | - | - | 860 | 910 |
20 | 914 | 699 | 635 | 584 | - | 43 | 20-32 | - | - | 945 | 990 |
24 | 1067 | 813 | 749.5 | 692 | - | 48 | 20-35 | - | - | 1040 | 1090 |
28 | 1245 | 927 | 864 | 800 | - | 71 | 28-35 | - | - | 1150 | 1210 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
