API 6D Forged Steel Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China api 6d forged steel trunnion ball valve, api ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API6D FORGED STEEL TRUNNION BALL VALVE Technical.....
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China api 6d forged steel trunnion ball valve, api ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API6D FORGED STEEL TRUNNION BALL VALVE Technical..
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China api 6d forged steel trunnion ball valve, api ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

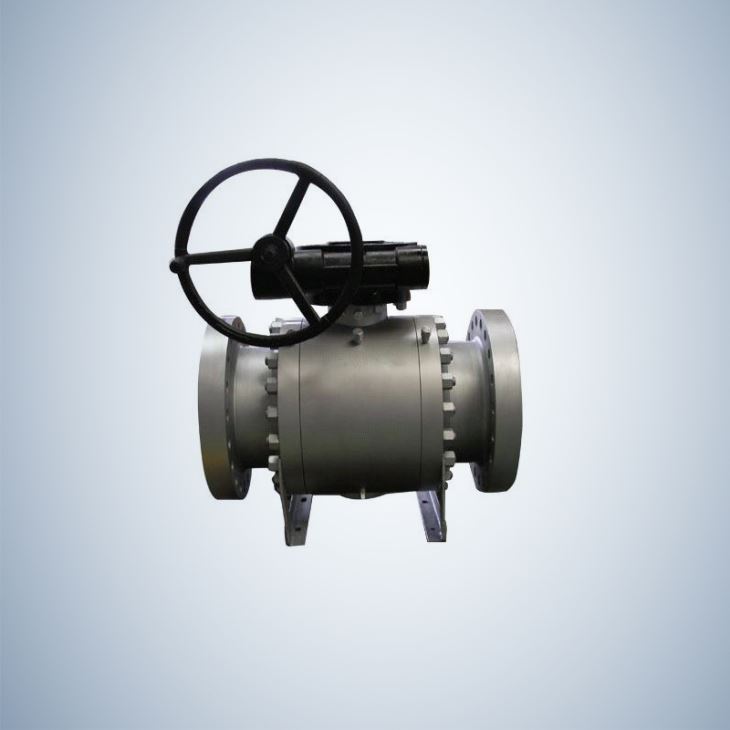

API6D FORGED STEEL TRUNNION BALL VALVE

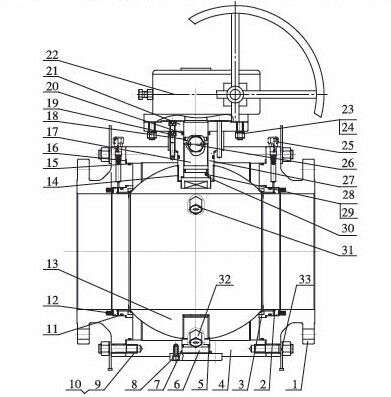

ITEM | PART NAME | MATERIAL |
1 | ADAPTER | A105 |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | BODY | A105 |
5 | O-RING | VITON |
6 | TRUNNION | A105+ENP |
7 | GASKET | 304SS/316SS+GRAPHITE |
8 | SCREW | A193 B7/BM |
9 | BOLT | ASTM A193 B7/BM |
10 | NUT | ASTM A194 2H/2HM |
11 | O-RING | VITON |
12 | SPRING | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | BEARING | AISI 1045+RPTFE聽 |
15 | O-RING | VITON |
16 | GASKET | 304SS/316SS+GRAPHITE |
17 | STEM | AISI 1040+ENP/AISI 1045+ENP |
18 | O-RING | VITON |
19 | SCREW | CARBON STEEL |
20 | PACKING | GRAPHITE/PTFE |
21 | CONNECTING PLATE | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | NUT | CARBON STEEL |
25 | GREASE FITTING(SEAT) | CARBON STEEL |
26 | GREASE FITTING(STEM) | CARBON STEEL |
27 | PACKING BOX | A105+ENP |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | THRUST WASHER | PTFE |
31 | DRAIN VALVE | CARBON STEEL |
32 | PLUG | CARBON STEEL |
33 | SUPPORT | CARBON STEEL |
Product Specifications :
Technical Specifications
1. Design specifications: GB/T 12237,API608,API 6D,ASME B16.34
2. Face to face: GB/T 12221,ASME B16.10,API 6D,ASME B16.10
3. Connection: Flange: GB/T 9113, ASME B16.5. Butt-welding: GB/T 12224, ASME B16.25
4. Size: 1" to 60"
5. Pressure Class: Class 150 ~ Class 1500
6. Material : (NACE MR0175) Carbon steel, stainless steel
7. Inspection: KB/T 9092, GB/T 19672, API 598, API 6D, ASME B16,34
8. Fire test: API 6FA/API607
9. Actuator: Hand wheel, Worm gear, Electric, Pneumatic etc
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
