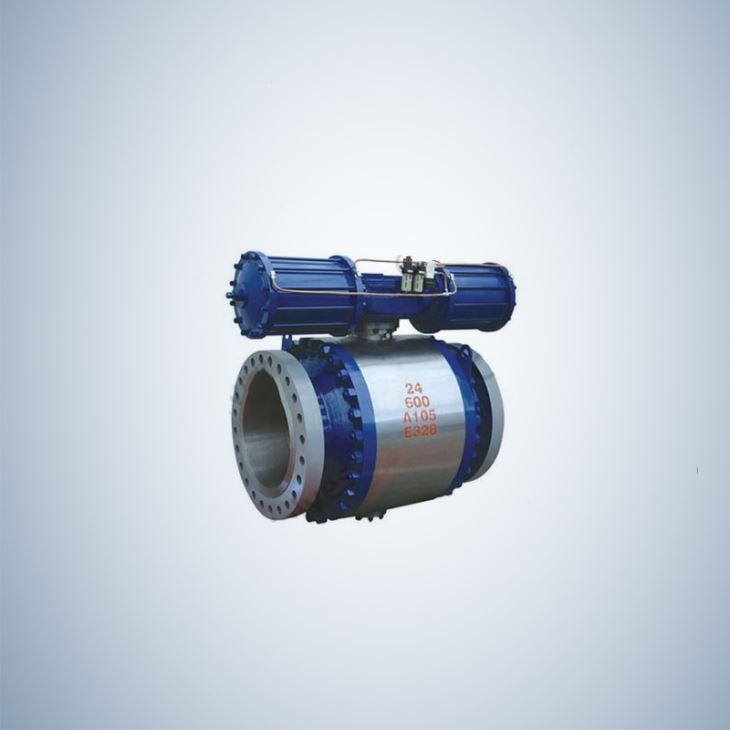

RF Flange 24 Inch Forged Steel Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China rf flange 24 inch forged steel trunnion ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. RF flange 24 INCH FORGED STEEL TRUNNION BALL VALVE......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China rf flange 24 inch forged steel trunnion ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. RF flange 24 INCH FORGED STEEL TRUNNION BALL VALVE...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China rf flange 24 inch forged steel trunnion ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
RF flange 24 INCH FORGED STEEL TRUNNION BALL VALVE

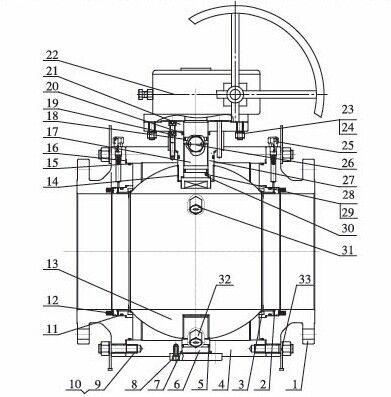

ITEM | PART NAME | MATERIAL |
1 | ADAPTER | A105 |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | BODY | A105 |
5 | O-RING | VITON |
6 | TRUNNION | A105+ENP |
7 | GASKET | 304SS/316SS+GRAPHITE |
8 | SCREW | A193 B7/BM |
9 | BOLT | ASTM A193 B7/BM |
10 | NUT | ASTM A194 2H/2HM |
11 | O-RING | VITON |
12 | SPRING | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | BEARING | AISI 1045+RPTFE聽 |
15 | O-RING | VITON |
16 | GASKET | 304SS/316SS+GRAPHITE |
17 | STEM | AISI 1040+ENP/AISI 1045+ENP |
18 | O-RING | VITON |
19 | SCREW | CARBON STEEL |
20 | PACKING | GRAPHITE/PTFE |
21 | CONNECTING PLATE | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | NUT | CARBON STEEL |
25 | GREASE FITTING(SEAT) | CARBON STEEL |
26 | GREASE FITTING(STEM) | CARBON STEEL |
27 | PACKING BOX | A105+ENP |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | THRUST WASHER | PTFE |
31 | DRAIN VALVE | CARBON STEEL |
32 | PLUG | CARBON STEEL |
33 | SUPPORT | CARBON STEEL |
Product Specifications :
Standard:
1.Steel ball valves:API608/API6D
2.Fire durable:API607
3.Anti static:API608
4.Steel valves:ASME B16.34
5.Face to face:ASME B16.10
6.End flanges:ASME B16.5
7.Butt welding ends:ASME B 16.25
8.Inspection and test:API 598/API6D
API Series main connection size
Full port class 300
NPS | in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 |
DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
L(RF) | mm | 108 | 117 | 127 | 140 | 165 | 178 | 191 | 203 | 229 | 394 | 457 |
L(BW) | mm | - | - | 165 | 178 | 191 | 216 | 241 | 283 | 305 | 457 | 521 |
L(RTJ) | mm | 119 | 130 | 140 | 152 | 178 | 191 | 203 | 216 | 241 | 406 | 470 |
H | mm6 | 70 | 93 | 93 | 102 | 118 | 145 | 148 | 152 | 203 | 338 | 456 |
W | mm | 130 | 130 | 160 | 180 | 200 | 230 | 300 | 350 | 400 | 750 | 300 |
WT(RF) | kg | 3 | 4 | 5.5 | 7.6 | 8.5 | 12 | 18 | 24 | 40 | 82 | 185 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
