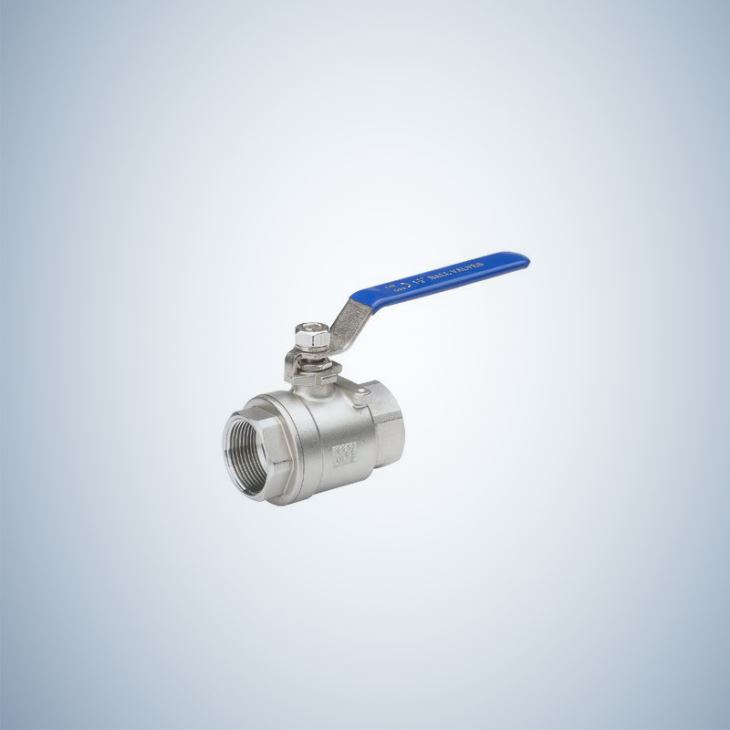

Flow 2 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China flow 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. FLOW TWO PIECE THREADED BALL VALVE Features 1. Blow-out Proof Stem 2.......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China flow 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. FLOW TWO PIECE THREADED BALL VALVE Features 1. Blow-out Proof Stem 2....
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China flow 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
FLOW TWO PIECE THREADED BALL VALVE
Product Specifications :
Features
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Available Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flange
8). Port: Full Port, Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598
Material list
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | BONNET | A216 WCB |
5 | THRUST WASHER | RPTFE |
6 | STEM | A276 410 |
7 | PACKING | GRAPHITE/PTFE |
8 | GLAND FLANGE | A216 WCB |
9 | LEVER | STAIN LESS |
800PSI~1000PSI
NPS | in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 |
DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
L | mm | 65 | 78 | 88 | 105 | 40 | 125 | 165 | 184 |
NPT | in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 |
H | mm | 68 | 70 | 80 | 85 | 100 | 110 | 130 | 150 |
W | mm | 110 | 110 | 140 | 140 | 180 | 180 | 200 | 250 |
WT | kg | 0.4 | 0.6 | 1.0 | 1.6 | 2.3 | 3.3 | 6.0 | 9.8 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
