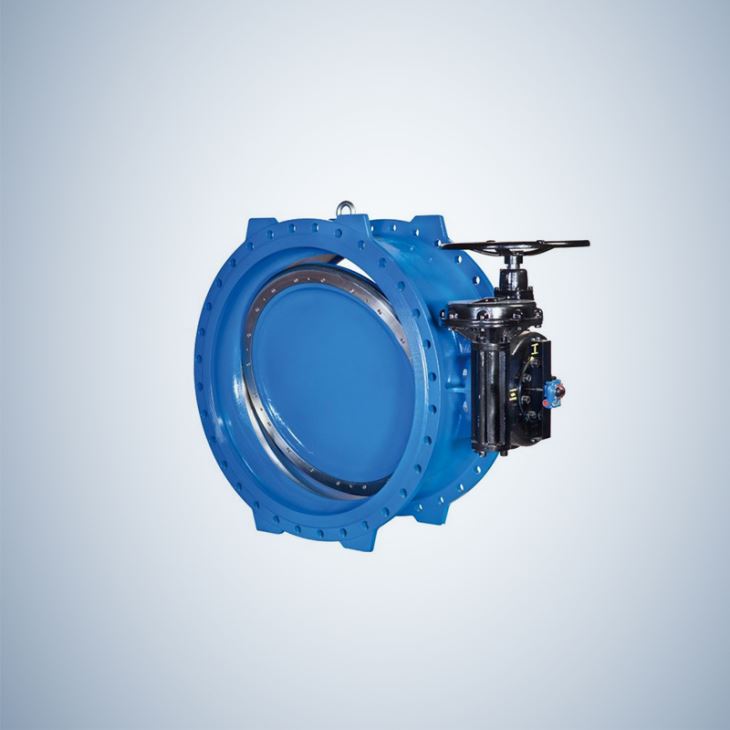

Eccentric Double Offset Butterfly Valve

Eccentric Double Offset Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China eccentric double offset butterfly valve, grooved butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. ECCENTRIC GEAR DOUBLE OFFSET BUTTERFLY......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China eccentric double offset butterfly valve, grooved butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. ECCENTRIC GEAR DOUBLE OFFSET BUTTERFLY...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China eccentric double offset butterfly valve, grooved butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

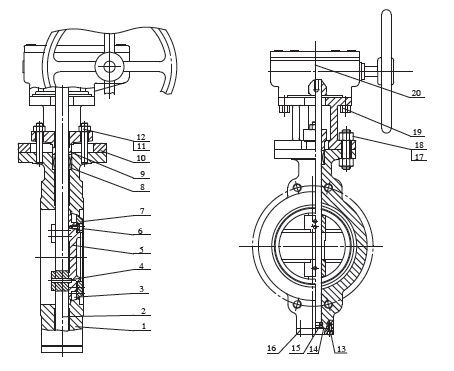

ECCENTRIC GEAR DOUBLE OFFSET BUTTERFLY VALVE


ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM

A182 F6

3

SEAT

PTFE/RUBBER

4

PIN

A276 410

5

DISC

A216 WCB

6

SCREW

CARBON STEEL

7

SEAT GLAND

CARBON STEEL

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY


Product Specifications :

1) It is reliable in sealing. The more it closes, the tighter the sealing. It is suitable for medium pressure pipes with t he nominal pressure between 16MPa and 4MPa

2) At the time of opening, the disc can separate itself from the seat promptly, thus the friction torque is low

3) The adjustment can be done for compensation if the valve seat is worn, thus prolonging the service life

4) The sealing face of the valve seat is made of PTFE, which is suitable for a temperature between -30º C and 230º C



STANDARDS :

1. DESIGN AND MANUFACTURE: API 609

2. FACE TO FACE DIMENSIONS: API 609

3. FLANGE ENDS DIMENSIONS: NPS1/2”~24”: ASME B16.5

4. PRESSURE-TEMPEARTURE RATINGS:  ASME B16.34

5. PRESSURE: CLASS 150

6. SIZE: NPS 2″~16″


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
