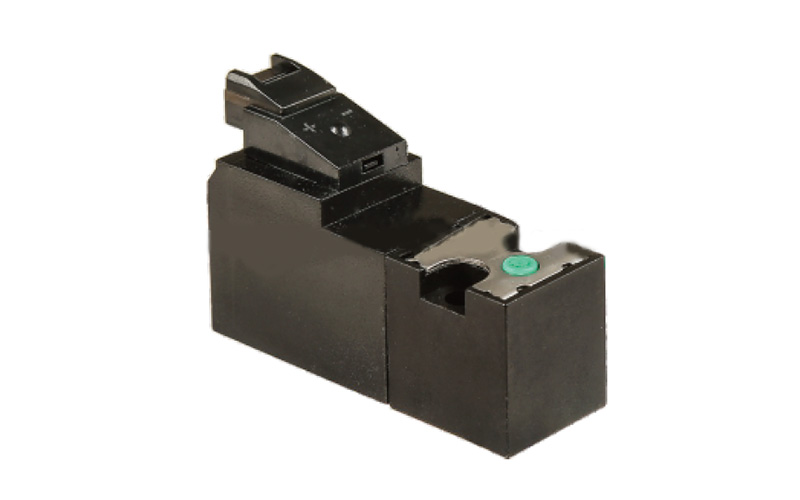

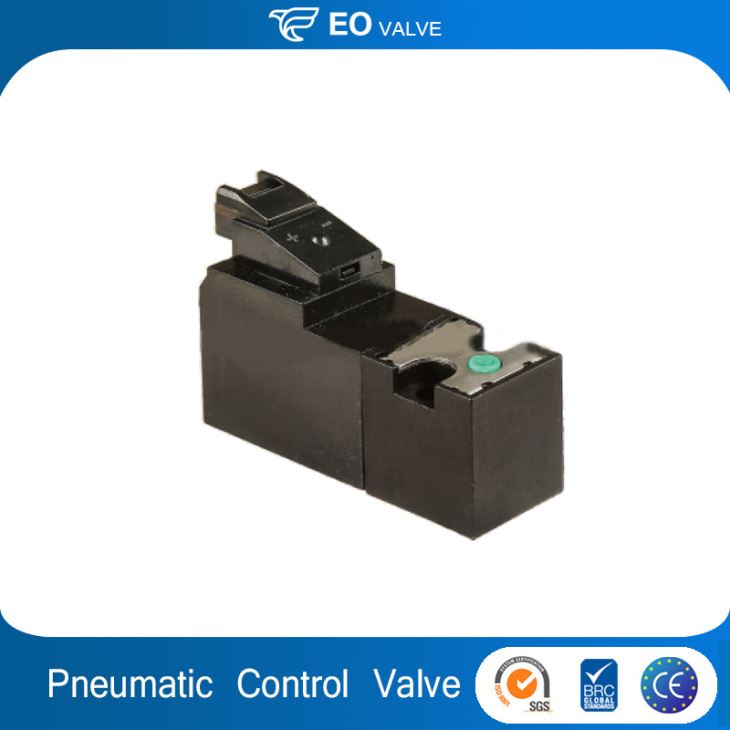

Pneumatic Button-type Manual Switch Electric Control Miniature Solenoid Valve
Pneumatic Button-type Manual Switch Electric Control Miniature Solenoid Valve;Power:Solenoid,Media:Filtered compressed gas or inert gas,Place of Origin:China (Mainland),Brand Name:EO,Application:General.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | 0-6 bar (NO), 0-7 bar (NC), 0-10bar (NC), -100bar |
| Power: | Solenoid |
| Material: | body: Engineering plastics PA66, PA12 |
| Temperature of Media: | -5℃ - 50℃ (But Unfrozen) |
| Media: | Filtered compressed gas or inert gas |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | 331series |
| Brand Name: | EO |
| Application: | General |

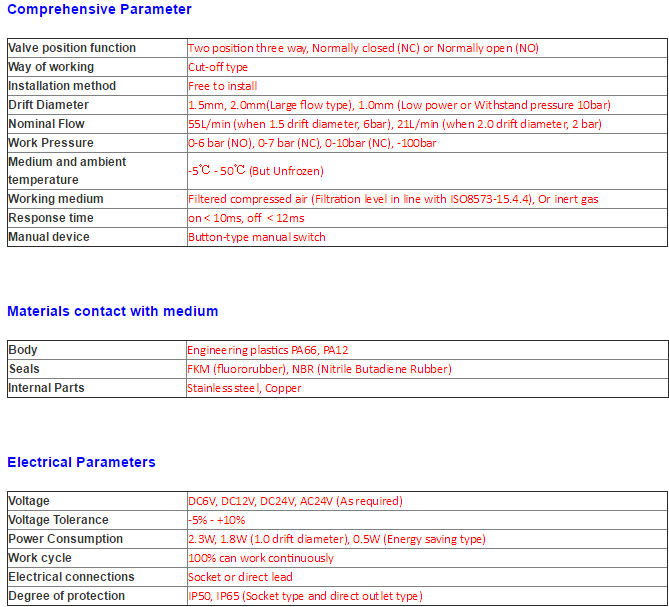

| Valve position function: | Two position three way, Normally closed (NC) or Normally open (NO) |
| Way of working: | Cut-off type |
| Installation method: | free to install |
| Drift Diameter: | 1.5/2.0mm(Large flow type), 1.0mm (Low power/Withstand pressure 10bar) |
| Nominal Flow: | 55L/min (1.5 drift dia, 6bar), 21L/min (2.0 drift dia, 2 bar) |
| Work Pressure: | 0-6 bar (NO), 0-7 bar (NC), 0-10bar (NC), -100bar |
| Response time: | on < 10ms, off < 12ms |
| Manual device: | Button-type manual switch |
