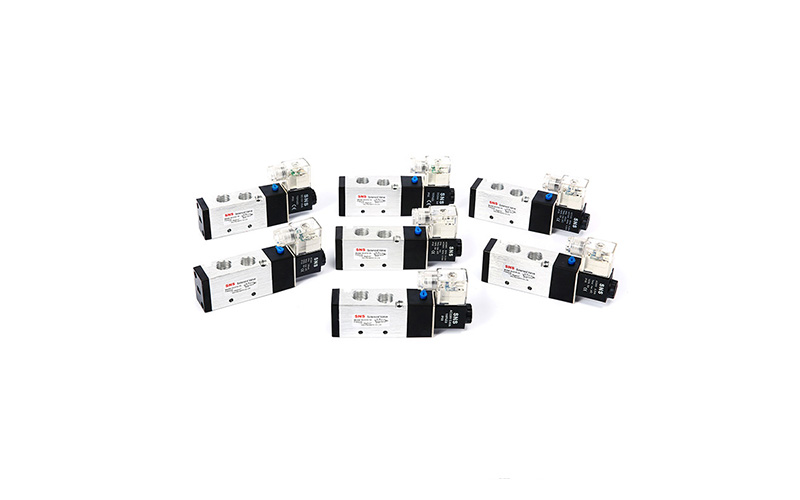

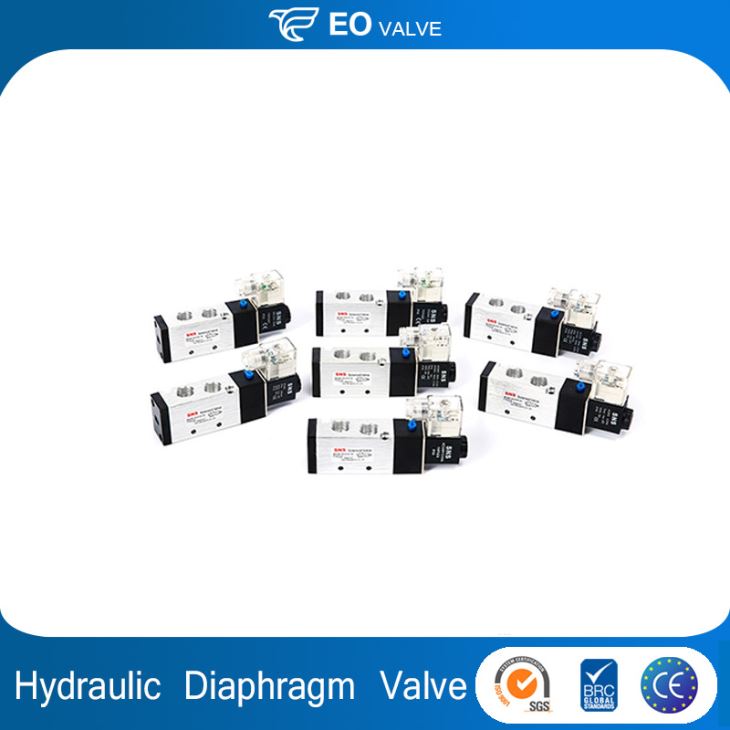

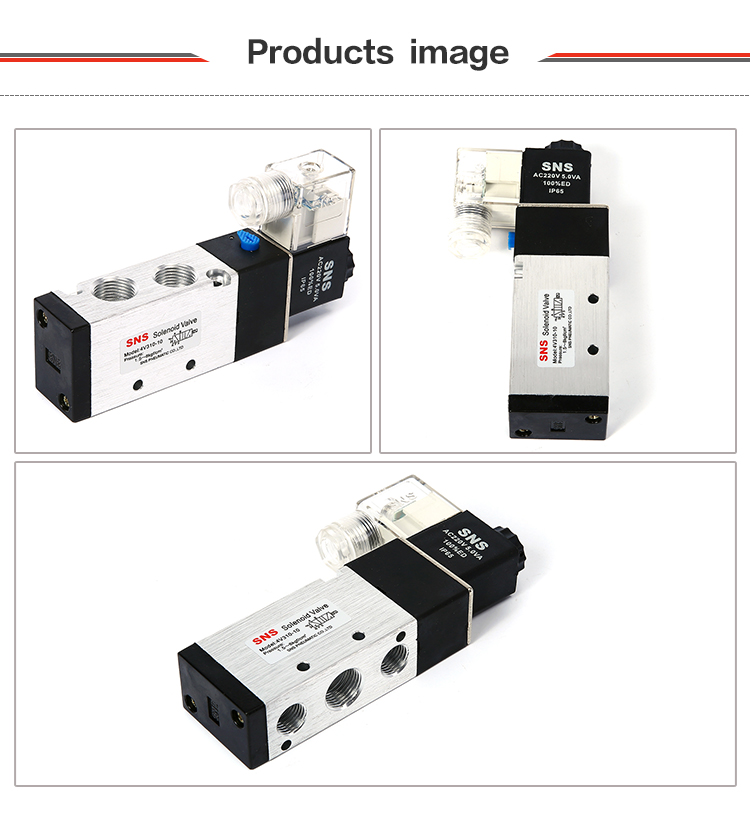

Hydraulic Pressure Relief Diaphragm Electric Pneumatic Solenoid Valve
Hydraulic Pressure Relief Diaphragm Electric Pneumatic Solenoid Valve;Connecting Type:Plug Type,Protection Class:IP65(DIN40050),Insulation Grade:F Level,Power Consumption:AC:5.5VA DC:4.8W.

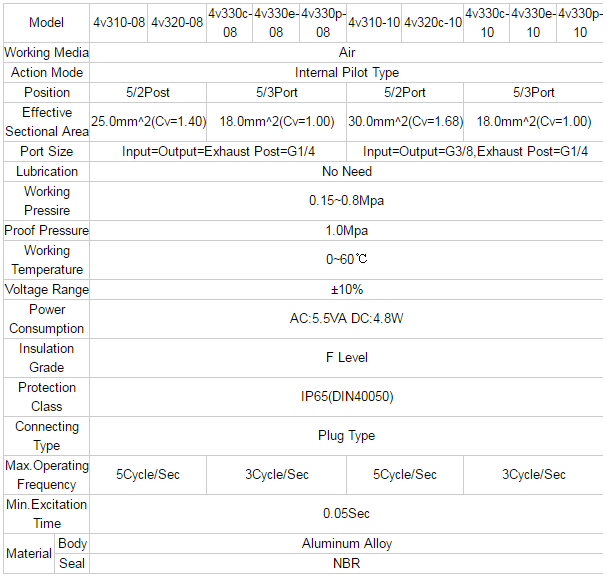

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Other |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Aluminum Alloy |
| Temperature of Media: | Medium Temperature |
| Media: | Air |
| Port Size: | other |
| Place of Origin: | China (Mainland) |
| Model Number: | 4V310-10 DC24V |
| Brand Name: | EO |
| Application: | Other |
| Certification: | ISO9001,ROHS |
| Min.Excitation Time: | 0.05Sec |
| Connecting Type: | Plug Type |
| Protection Class: | IP65(DIN40050) |
| Insulation Grade: | F Level |
| Power Consumption: | AC:5.5VA DC:4.8W |
| Voltage Range: | ±10% |
| Lubrication: | No Need |
| Working Pressire: | 0.15~0.8Mpa |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
Hot Tags: hydraulic pressure relief diaphragm electric pneumatic solenoid valve, China, manufacturers, suppliers, factory, company, price, customized, buy, cheap, in stock
