Wheel Handle Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China wheel handle gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 600 Cast Steel Bolted Bonnet flange ends Gate Valve Products D escription :...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China wheel handle gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 600 Cast Steel Bolted Bonnet flange ends Gate Valve
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China wheel handle gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

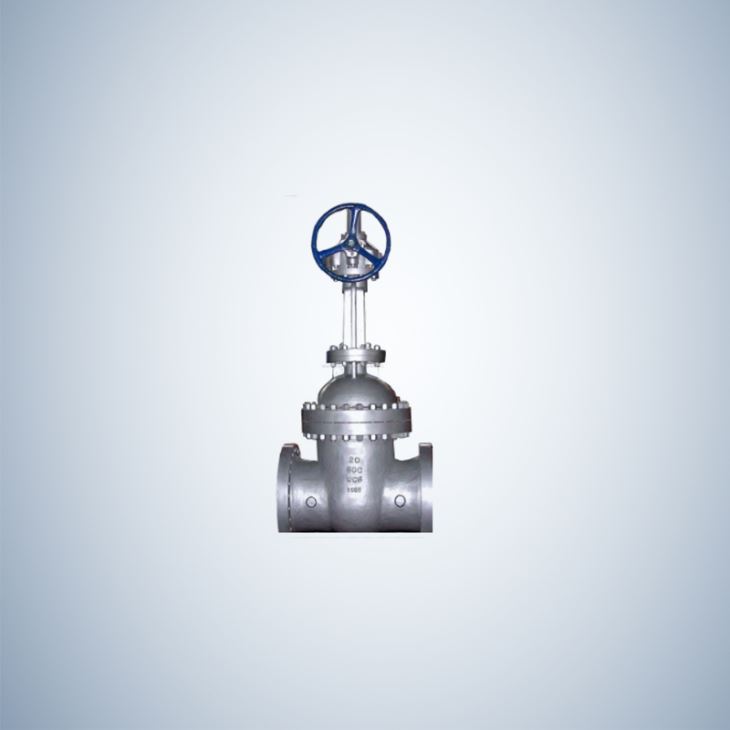

API 600 Cast Steel Bolted Bonnet Flange Ends Gate Valve
Product Specifications :
Design Features:
1.Material: Cast Stainless Steel,WCB,CF8M,CF8 etc
2.Size:≥2"
3.Pressure: Class 150LB~Class 2500LB
4.Design and Manufacture:API 600,API603
5.Connection Ends:
1)Socket Welded Dimension:ANSI B16.11
2)Butt Welded:ANSI B16.25
3)Flanged Ends:ANSI B16.5(for NPS≤24"),ASME B16.47 SERIES B,API 605,
ASME B16.47 SERIES A,MSS SP-44(for NPS>24").
6.Test and Inspection:API598,API600/API 6D
7.Face to Face:ASME B16.10
8.Pressure-temperature ratings:ASME B16.34
7.Structure Features:
B.B(Bolted Bonnet) /Pressure Sealing
Bill of Material:
1 | PARTNAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A216 WCB | A352 LCC | A351 CF8M |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE /304SS/316SS METAL RING | ||
6 | BONNET | A216 WCB | A352 LCC | A351 CF8M |
7 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8M |
8 | NUT | A194 2H/2HM | A194 7/7M | A194 8M |
9 | BACKSEAT BUSHING | A276 410 | A276 304 | A276 316 |
10 | PACKING | GRAPHITE/PTFE | ||
11* | LANTERN RING | A276 410 | A276 304 | A276 316 |
12 | GLAND FLANGE | A216 WCB | ASTM A352 LCC | A351 CF8 |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
15 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
16 | STEM NUT | A439 D2/Cu-ALLOY | ||
17 | YOKE | A216 WCB | A352 LCC | A351 CF8 |
18 | HANDWHEEL | STEEL/DUCTILE IRON | ||
SEALING FACE OVERLAY | API TRIMS AVAILABLE | |||
*AVAILABLE UPON REQUEST FOR CLASS 150,300 AND ABOVE GATE VALVE.
GEAR OPERATOR, ELECTRICAL OPERATOR, PNEUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC. ARE AVALIABLE FOR OUR 4 INCH GATE VALVE
NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
