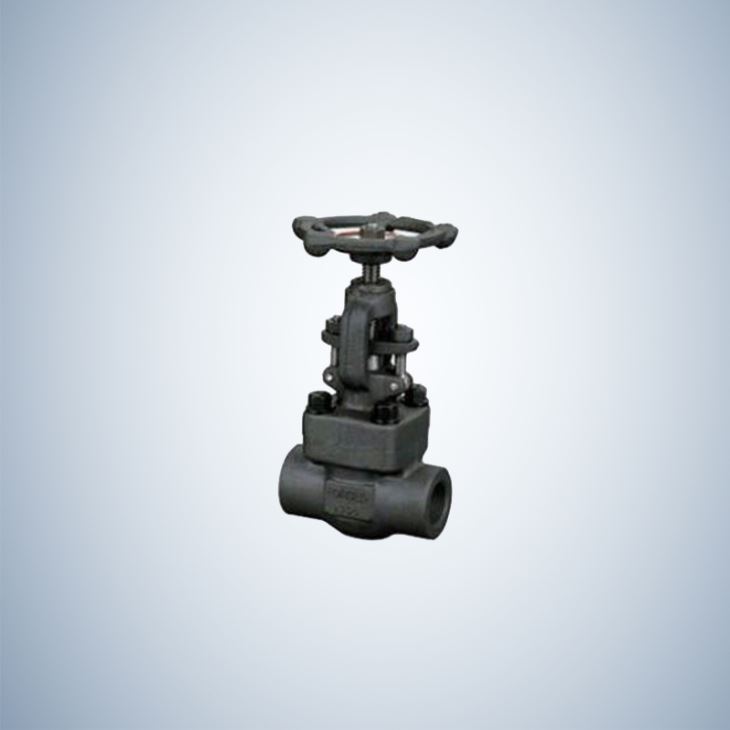

Socket Weld Forged Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China socket weld forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China socket weld...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China socket weld forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China socket weld forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Product Specifications :
Standard:
· Design : API 602
· Face to face : ASME B 16.10
· End Flange : ASME B 16.5
· Butt welding ends : ASME B 16.25
· Socket Welding ends :ASME B 16.11
· Screw ends : ASME B 16.20.1
· Inspection and test : API 6D , API 598.
Design feature:
Size Range | NPS 1/4"~2" |
Class | 150LB~1500LB |
Material | A105,LF2,F11,F22,F304,F316,F304L,F316L |
Connection | Flanged,Socket Welded,Screwed,Butt Weld |
Feature | Rising Stem,bolted bonnet or welded bonnet or pressure seal bonnet. Full port or reduced port. |
Temperature | -30ºC~425ºC |
Actuator | Manual operated |
Application | Oil and gas pipeline |

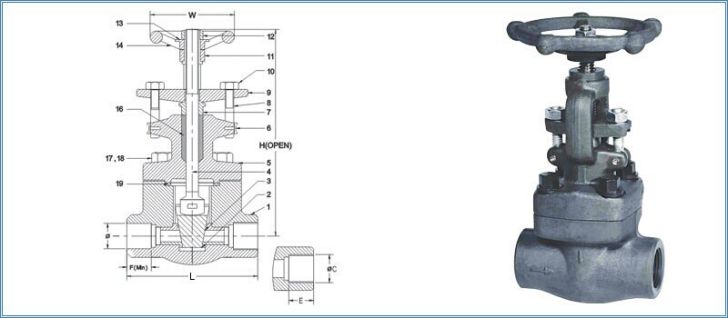

Main Parts Material:
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A105 | A350 LF2 | A182 F316 |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A105 | A350 LF2 | A182 F316 |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING | ||
6 | BONNET | A105 | A350 LF2 | A182 F316 |
7 | BOLT | A193 B7/B7M | A320 L7/ L7M | A193 B8M |
8 | STEM PACKING | GRAPHITE / PTFE | ||
9 | GLAND | 276 410 | 276 410 | A276 316 |
10 | GLAND FLANGE | A105 | A350 LF2 | A182 F316 |
11 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
12 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
13 | STEM NUT | A276 420 /Cu-ALLOY | ||
14* | HANDWHEEL | STEEL/ DUCTILE IRON | ||
* ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE
NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST
Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
