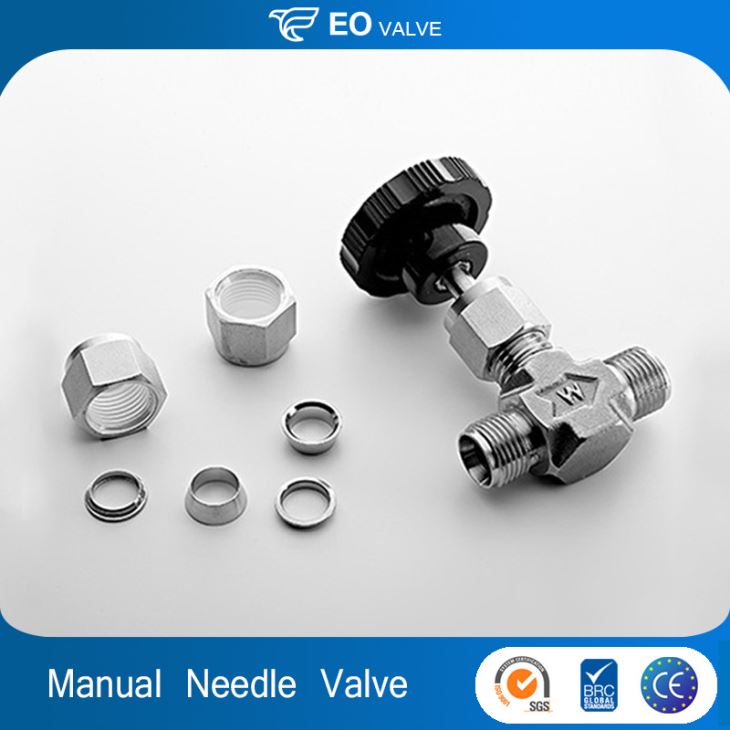

Super Duplex Titanium Inconel Needle Valve

Super Duplex Titanium Inconel Needle Valve

Super Duplex Titanium Inconel Needle Valve;Pressure:High Pressure,Temperature of Media:High Temperature,Application:General, General,MOQ:20 Pcs,Connection:tube fitings.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Needle, 6000 psi monel Customize material needle valve for gas
Pressure:High Pressure
Power:Manual
Material:Stainless Steel
Temperature of Media:High Temperature
Media:Gas
Port Size:1/8"-1/4"(3-8mm)
Place of Origin:China (Mainland)
Model Number:MI-05
Brand Name:EO
Application:General, General
Advantage:6000 psi monel Customize material needle valve for gas
Customed:Available
Use:oil,, water,etc.
MOQ:20 Pcs
Name:6000 psi monel Customize material needle valve for gas
Connection:tube fitings
Certificate:CCS ABS CE

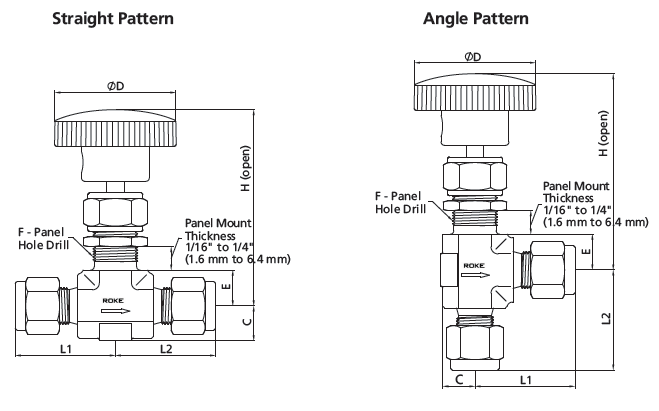

Straight and angle pattern.

Compact design.

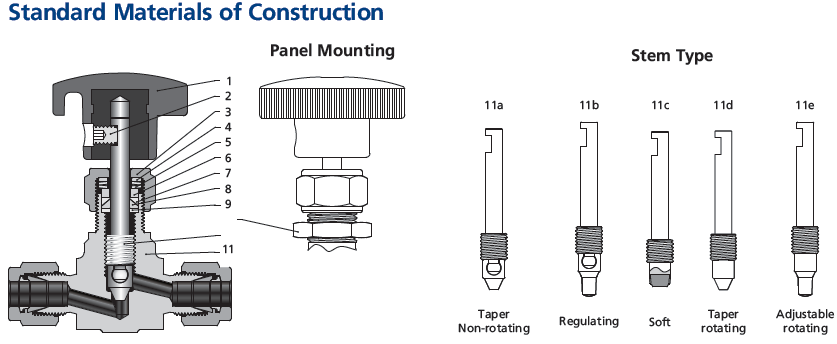

Nonrotating stem.

Special designed handle to stop contamination

entering into the valve.

Leak-tight performance testing for every valve

with nitrogen at the maximum working pressure.

Maximum working pressure: 3000 psig (207 bar)

Working temperature:

PCTFE stem tip: -20°F to 200°F (-28°C to 93°C)

PEEK stem tip: -20°F to 450°F (-28°C to 232°C)

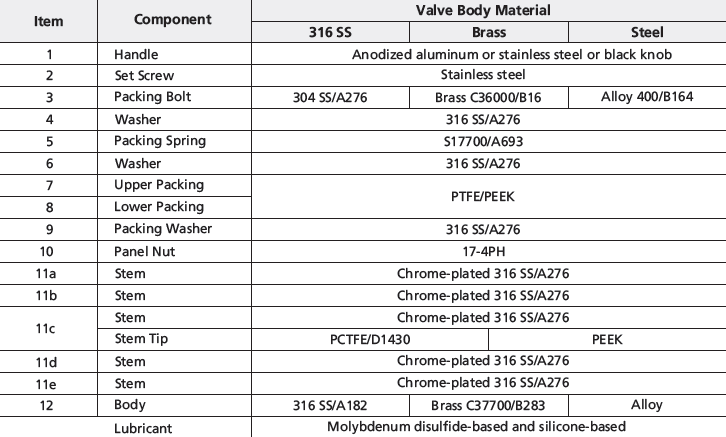

super duplex 2507, Titanium,Inconel , Monel,Hastelloy Needle Valve

超级双相2507,钛,铬镍铁合金,蒙乃尔,哈氏合金针阀

超级双相2507,钛,铬镍铁合金,蒙乃尔,哈氏合金针阀

超级双相2507,钛,铬镍铁合金,蒙乃尔,哈氏合金针阀

Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
