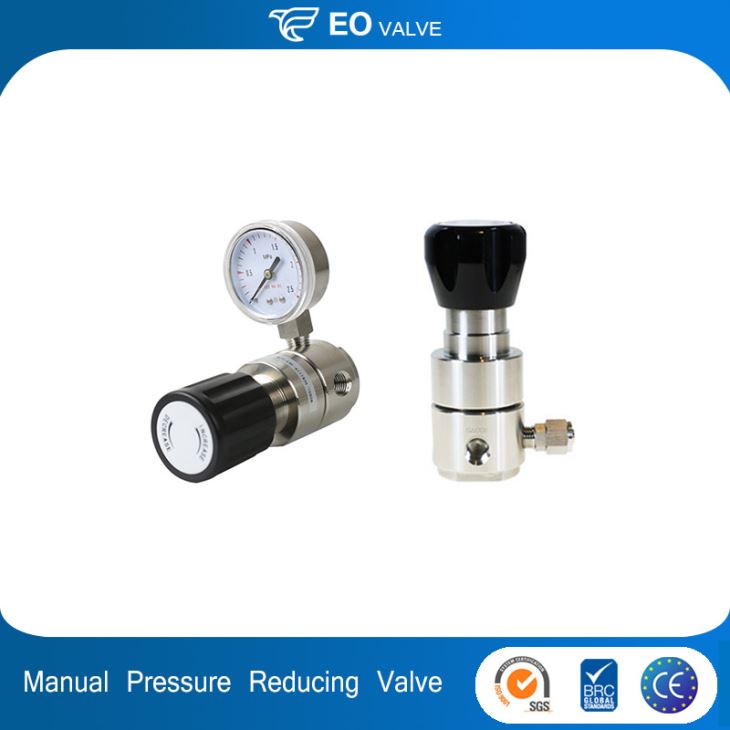

Safe Pressure Regulation Valve For Gas Cylinders Switching Device Price
YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Pressure Reducing |
| Pressure: | high or low pressure |
| Power: | Manual |
| Material: | Stainless Steel, 316 stainless steel valve,304 stainless steel supporting structure |
| Temperature of Media: | High Temperature |
| Media: | Gas |
| Port Size: | 1/2 npt or 1/4npt |
| Place of Origin: | China (Mainland) |
| Model Number: | YR31 |
| Brand Name: | EO |
| Application: | General |
| Model: | YR31 |
| Model description: | 316 material pressure regulation valve,6000PSIG,20-500psig,Cv0.06 |
| Export pressure regulation range: | 10,25, 50, 100 ,250,500 psig |
| Max using pressure: | 6000PSIG |
| Pressure switched setting range: | 20-500psig |
| Sealing material: | PCTFE and PEEK |
| Cv value: | 0.025,0.06 and 0.2 |
| MOQ: | 1 PC |
| Warranty: | 1 year |
Specification Safe pressure regulation valve for gas cylinders switching device price
| Material | 316 stainless steel |
| Max inlet pressure | 6000psi(413.7bar) |
| Outlet pressure range | 0 to 2500psi(172.4bar) |
| Discharge coefficient | (Cv)0.025 0.06(standard) 0.2 0.5 |
| Weight | 1.55kg |
| Max using temperature | ℃(℉):Teflon:66(150) PCTFE:80(175) PEEK: 260 (500). |
| Max inlet pressure | psi(bar ):Teflon:3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2). |
Features Safe pressure regulation valve for gas cylinders switching device price
1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
