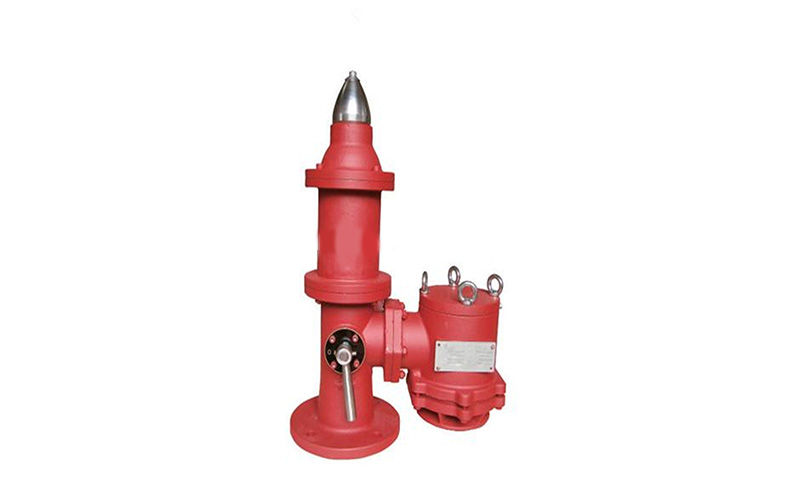

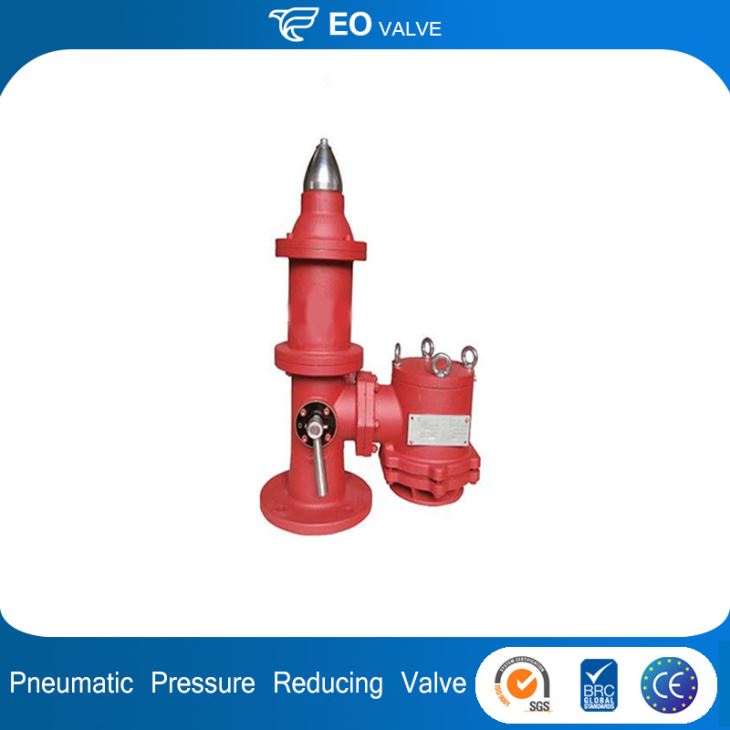

Stainless Steel Or Carbon Steel Pressure Vacuum Valve

Stainless Steel Or Carbon Steel Pressure Vacuum Valve

Stainless Steel or Carbon Steel Pressure Vacuum Valve;Structure:Pressure Reducing,Pressure:Low Pressure,Power:Pneumatic,Temperature of Media:Normal Temperature,Place of Origin:China (Mainland).

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Pressure Reducing
Pressure:Low Pressure
Power:Pneumatic
Material:Forged
Temperature of Media:Normal Temperature
Media:Gas
Port Size:Standard
Place of Origin:China (Mainland)
Brand Name:EO
Application:marine
Certificate:CCS /BV /RINA/ABS
Type:Normal Close
Connection:Flanges Universal Standard
Medium:GAS
Working pressure:14-21KPA
Color:Customer's Request
Body material:Carbon Steel
Size:EO50-EO250
Valve type:DF




Pressure/Vacuum Valve


High-velocity relief valve (pressure vacuum valve) is the controlled venting system the safest production for oil tanker and chemical tanker.


He series of CF-type P/V valve is a new generation production without vibration and anti-collision. It is installed on the vent pipe of oil tanker and chemicals tanker. It is the only entry and exit for liquid cargo tank. 1. When loading the liquid cargo or ballasting, the pressure valve in the high velocity relief will open, then jet out combustible liquid cargo vapour/air-mixture in liquid cargo tank with the rate of more than 30m/s, and dilute in the air so that it will never drop on the deck. 2. When unloading the liquid cargo, the vacuum valve in the high velocity relief valve will open, then supply air to cabin safely so as to avoid the cabin is over-vacuumed. 3. When the tank navigate on sea, the high velocity valve can automatically adjust the pressure oscillation in the cabin which caused by temperature changes.
