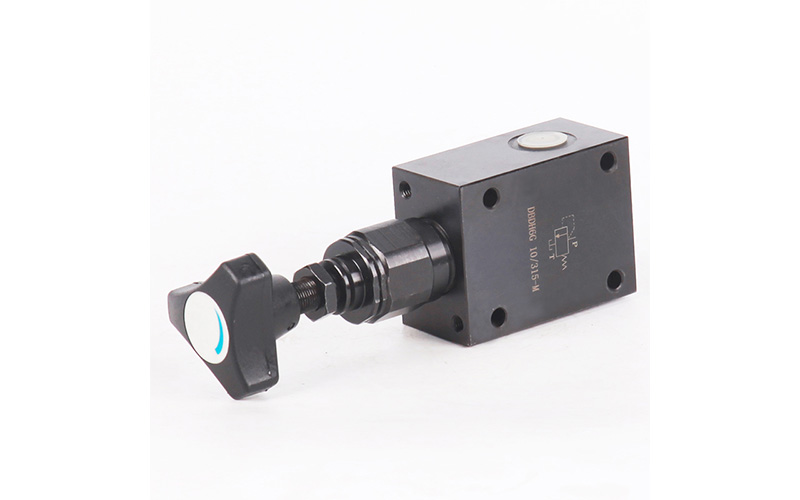

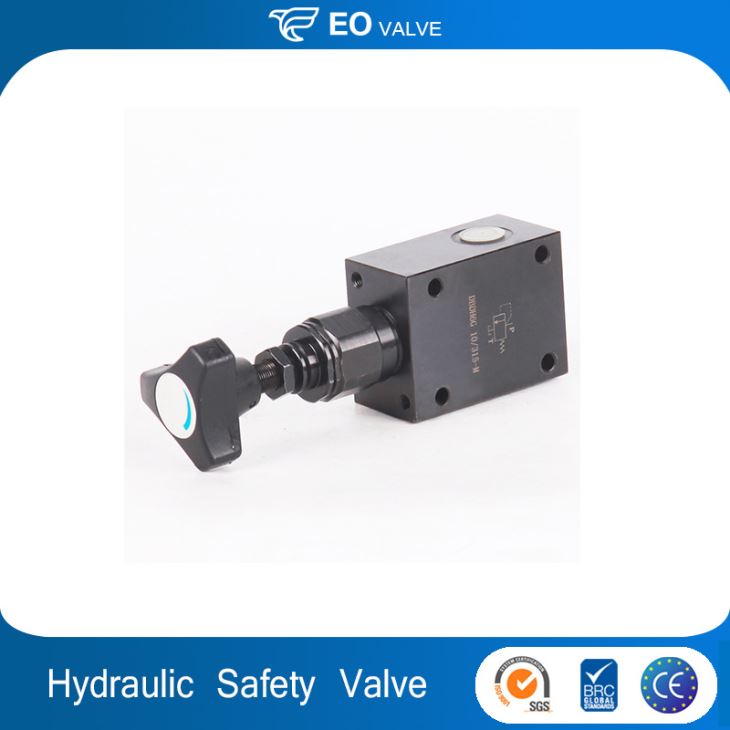

High Pressure Safety Relief Valve Hydraulic Valve
High Pressure Safety Relief Valve Hydraulic Valve;Pressure:High Pressure,Power:Hydraulic,Temperature of Media:High Temperature,Port Size:Standard,Application:General.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Safety |
| Pressure: | High Pressure |
| Power: | Hydraulic |
| Material: | Casting |
| Temperature of Media: | High Temperature |
| Media: | Oil |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | DBDS6G |
| Brand Name: | EO |
| Application: | General |
| Size: | 6,8,10,15,20,25,30 |
| Max operating pressure(MPa): | P port 6:40, 8/10:63, 15/20:40, 25/30: 31.5 |
| T port Max operating pressure: | 31.5MPa |
| Flow (L/min): | 6:50, 8/10:120, 15/20:250, 25/30:350 |
| Fluid: | Phospate ester |
| Oil temperature range: | -30-+80℃ |
| Viscosity range: | 10~800 m㎡/s |
| Color: | Customer's Request |
| Certificate: | ISO9001 |

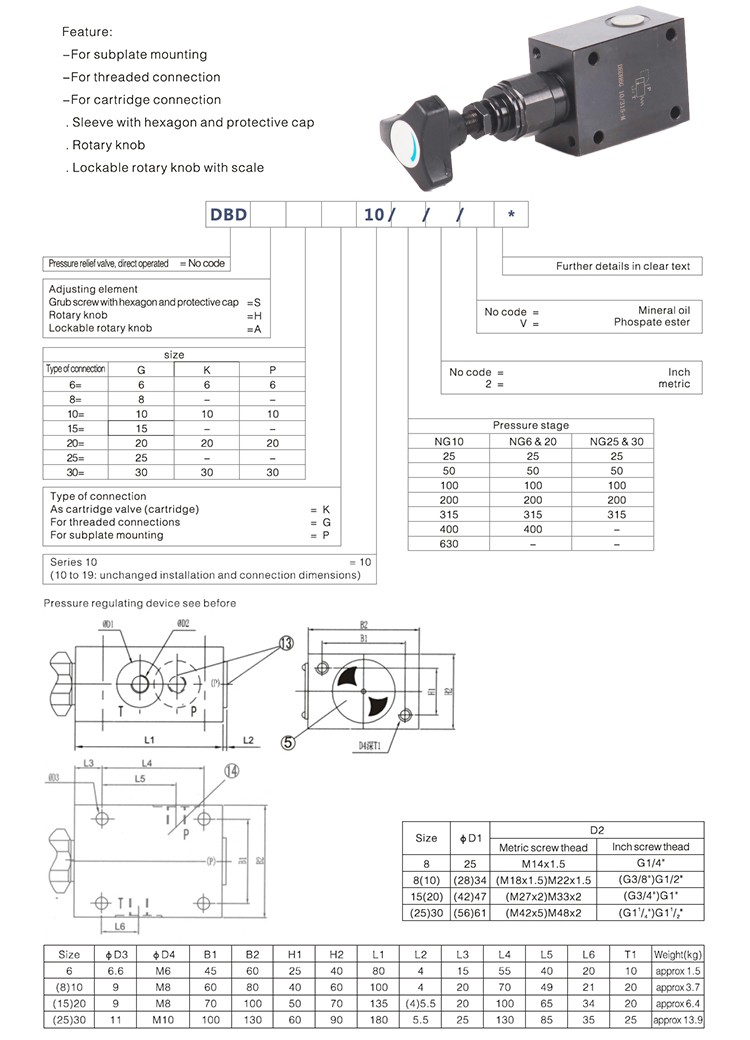

The DBD pressure relief valves are direct operated type relief valves. They are used to limit the pressure in a hydraulic system. DBD type relief valves offer line contact sealing for minimal leakage at closure and a full array of pressure capacities are available.
Features
Sizes 6 to 20
For threaded connection (“G”)
As cartridge valve (“K”)
Optional adjustment types:
- Screw with hexagon socket and protective cap
- Rotary knob / hand wheel
