Flange Ends Pressure Sealing Swing Check Valve

Flange Ends Pressure Sealing Swing Check Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China flange ends pressure sealing swing check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China flange ends pressure sealing swing check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China flange ends pressure sealing swing check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

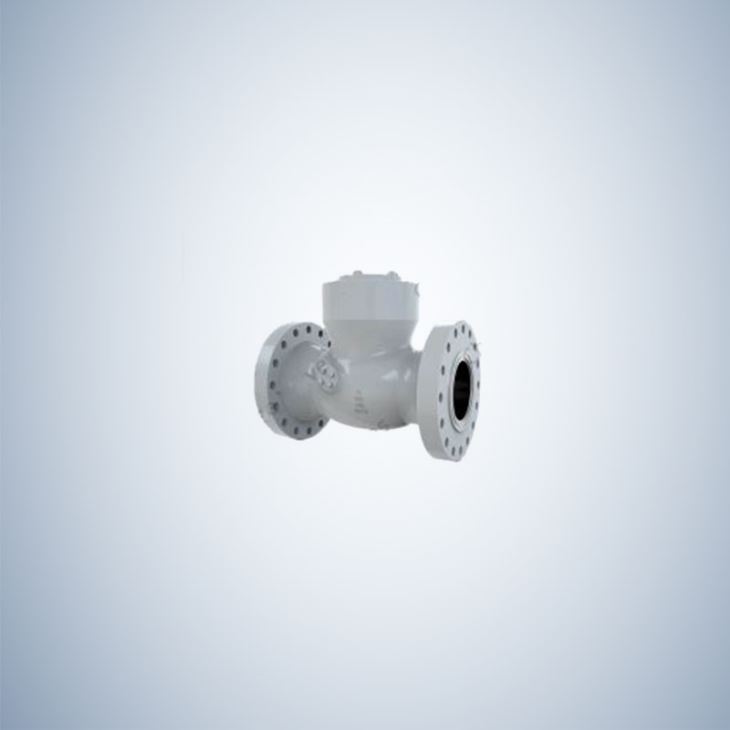

Cast Steel Flanged Ends Pressure SealSwing Check Valve.

Product Specifications :

Size: 2"-16"
Pressure: 900Lb-2500Lb
End:Flange, Butt weld, Socket weld are available
Features: Pressure Cover, Swing Type Disc,
Renewable Seat Rings, Low Emission
Cryogenic, Full Bore
Standards ComplianceBS 1868/ASME B16.34/API 6D
Basic Design to API 600
Face to Face to ANSI B16.10
Flange Design to ANSI B16.5
Butt Welding Design to ANSI B16.25
Pressure-Temperature Rating to ASME B16.34


Design Feature:

1. Pressure Seal Bonnet(PSB) Design

2. Swing Disc: Disc Is Fastened Securely To Disc Hanger With a Lock Nut And Copter Pin

3. Seat Type: Welder Seat Or Integral Seat

4.Main Material:ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M etc.

5.Application:Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.

6.Temperature rating:-45°C - + 650 °C or above

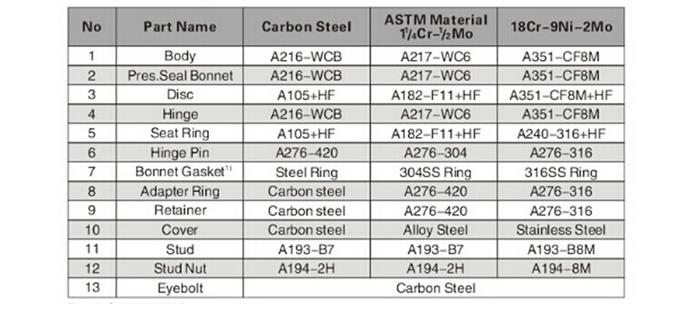

Main Material:

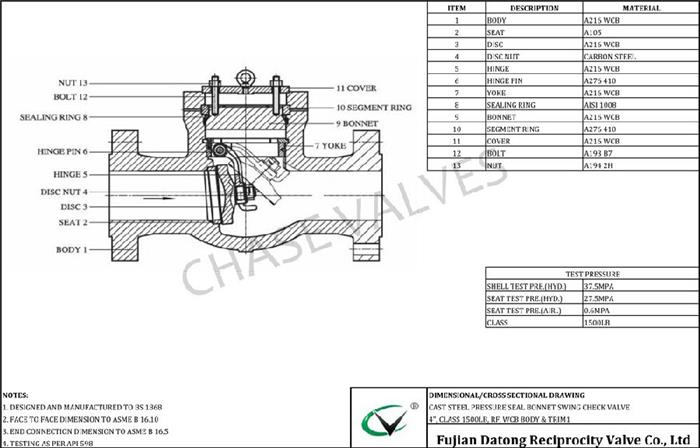

Technical Drawing(For reference):



Our Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
