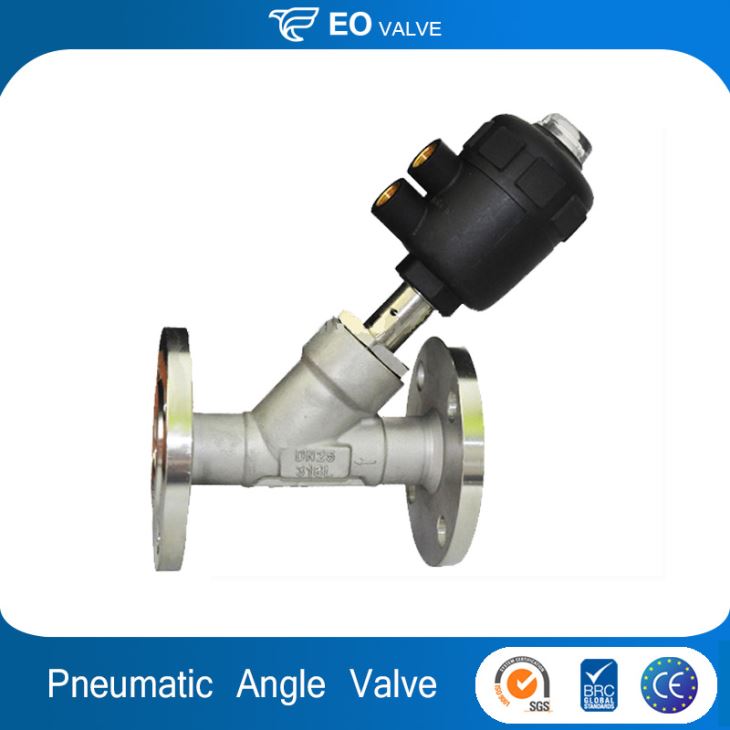

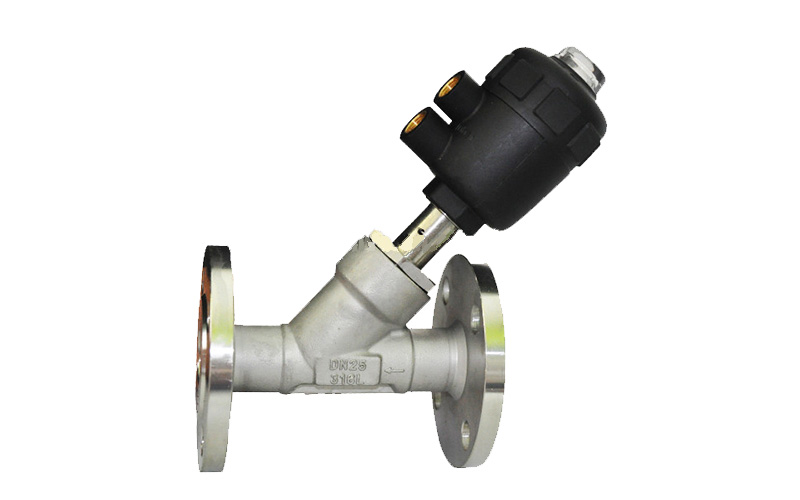

Professional Design Pneumatic Flanged Angle Seat Valve
Professional Design Pneumatic Flanged Angle Seat Valve;Structure:Ball,Power:Electric,Temperature of Media:-10℃~180℃,Port Size:G3/8"~G4",Place of Origin:China (Mainland).
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | 0~1.6Mpa |
| Power: | Electric |
| Material: | Stainless steel, Stainless steel |
| Temperature of Media: | -10℃~180℃ |
| Media: | water, liquid, neutral gas, oil, steam, weak acid or week alkali solut |
| Port Size: | G3/8"~G4" |
| Place of Origin: | China (Mainland) |
| Model Number: | DH2000 |
| Brand Name: | EO |
| Application: | General |
| Certifications: | CE, ROHS, ISO, TUV |
| Quality warranty: | One year guarantee |
| Staff: | 200-500 |
| Connection: | Threaded/Weld/ANSI flange/Tri-clamp |
| Order lead time: | 7~15 day after the payment is finished |
| Sample leadtime: | 2-3 days |

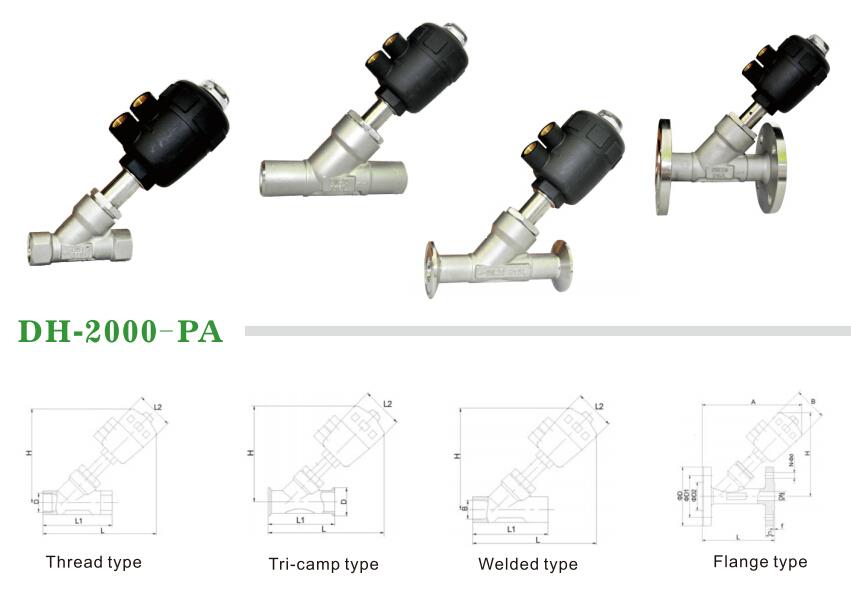

Pneumatic Angle Seat Valve DH2000 Series
Design Character
High flow rate due to the angle seat configuration.
Anti-water hammer feature with the fluid entry below the seat.
Stainless steel body and corrosion resistant actuator.
The pneumatic actuator can be rotated through 360 degrees.
Optical position indicator
Internal seals are self adjusting for long life, no need maintenance
Easily convertible from N.C. to N.O. or double acting
Universal mounting-any mounting orientation is acceptable
Application
Steam Applications
Air Drying equipment
Process Control Applications
Sterilizers and autoclaves
Laundry Equipment
Textile Dyeing & Drying
Bottling & Dispensing Equipment
Industrial project
Ink & Paint Dispensing
Chemical and Petrochemical Industries
Paper and pulp Industries
Cooling system
Nuclear Energy
Specifications:
Orifice: DN10-DN100
Thread: G3/8”~G4”
Port connection: Threaded/Weld/ANSI flange/Tri-clamp
Body material: Stainless steel
Actuator material: Plastic or stainless steel
Valve core seal: PTFE
Valve steam seal: PTPE, Viton
Application medium: water, liquid, neutral gas, oil, steam, weak acid or week alkali solution
Medium temperature: -10℃~180℃
Environment temperature: 10℃~60℃
Viscidity: Max.600mm2/s
Installation: any position
Controlling medium: air or neutral gas
Controlling pressure range: 0.3~1Mpa
Liquid Working pressure: 0~1.6Mpa
