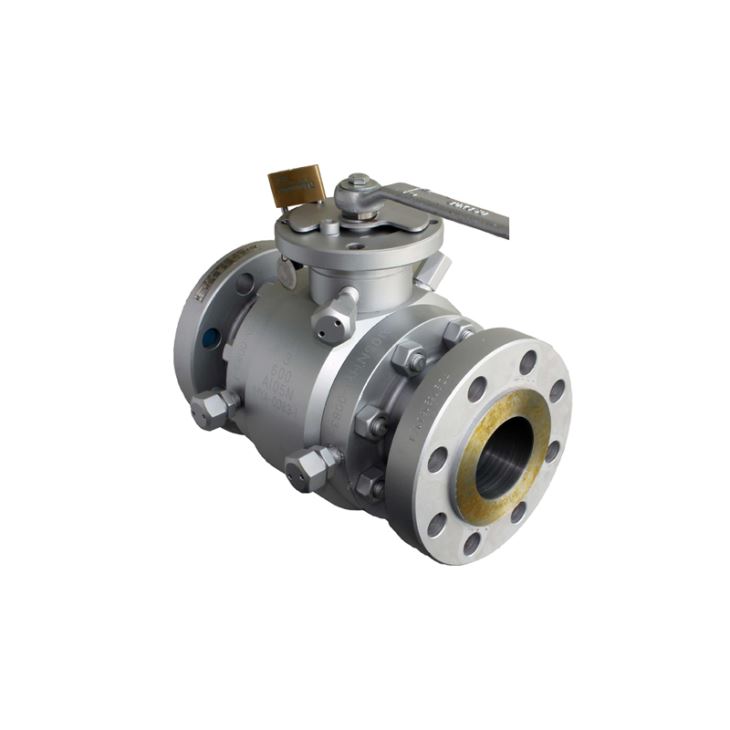

Inch 600Lb Forged Steel Floating Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 3 inch 600lb forged steel floating ball valve, 3 inch ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 3 INCH 600LB FORGED STEEL FLOATING BALL......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 3 inch 600lb forged steel floating ball valve, 3 inch ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 3 INCH 600LB FORGED STEEL FLOATING BALL...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 3 inch 600lb forged steel floating ball valve, 3 inch ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

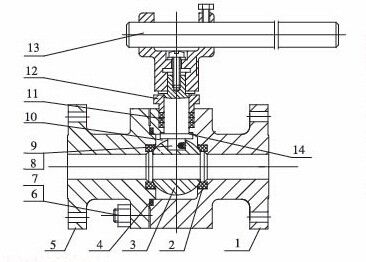

3 INCH 600LB FORGED STEEL FLOATING BALL VALVE
ITEM | PART NAME | MATERIAL |
1 | BODY | A105 |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | GASKET | 304SS/316SS+GRAPHITE |
5 | BONNET | A105 |
6 | BOLT | A193 B7 |
7 | NUT | A194 2H |
8 | ANTI STATIC BALL | 304SS |
9 | ANTI STATIC SPRING | 304SS |
10 | STEM | A1040+ENP |
11 | PACKING | GRAPHITE/PTFE |
12 | GLAND FLANGE | A276 410 |
13 | LEVER | CARBON STEEL |
14 | THRUST WASHER | PTFE |
Product Specifications :
API Series main connection size :
Class 150Lb :
DN(inch) | L | D | K | d | Y | b | Z-do | WS | HS | HW | HD |
6 | 394 | 279 | 241.5 | 216 | - | 26 | 8-22 | 1000 | 305 | 470 | 540 |
8 | 457 | 343 | 298.5 | 270 | - | 29 | 8-22 | - | - | 520 | 580 |
10 | 533 | 406 | 362 | 324 | - | 31 | 12-25 | - | - | 610 | 640 |
12 | 610 | 483 | 432 | 381 | - | 32 | 12-25 | - | - | 650 | 690 |
14 | 686 | 533 | 476 | 413 | - | 35 | 12-29 | - | - | 740 | 785 |
16 | 762 | 597 | 540 | 470 | - | 37 | 16-29 | - | - | 795 | 830 |
18 | 864 | 635 | 578 | 533 | - | 40 | 16-32 | - | - | 860 | 910 |
20 | 914 | 699 | 635 | 584 | - | 43 | 20-32 | - | - | 945 | 990 |
24 | 1067 | 813 | 749.5 | 692 | - | 48 | 20-35 | - | - | 1040 | 1090 |
28 | 1245 | 927 | 864 | 800 | - | 71 | 28-35 | - | - | 1150 | 1210 |
Main parts and materials :
Bady Bonnet | ASTM | A126 WCB | CF8 | CF8M |
Ball | ASTM | 420+HF | 304+HF | 316+HF |
Stem | ASTM | 420 | 304 | 316 |
Seat | ASTM | 420/PTFE | 304/PTFE | 316/PTFE |
Packing | ASTM | Expanded Graphite/PTFE | Expanded Graphite/PTFE | Expanded Graphite/PTFE |
Bolt | ASTM | A193-B7 | A320-B8 | A320-B8 |
Nut | ASTM | A194 2H | A194-8 | A194-8 |
STANDARDS :
1. DESIGN AND MANUFACTURE: | BS 5351/API 608/API 6D/ASME B16.34 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10/API 6D |
3. FLANGE ENDS DIMENSION NPS 1/2”-24” | ASME B16.5 |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
6.FIRE SAFE DESIGN | API 607/API 6FA |
7. NORMAL PRESSURE: | CLASS 150~1500 |
8. NORMAL DIAMETER: | NPS 1/2″~10″ |
Design features :
1. BOLTED BONNET DESIGN
2. WEDGE TYPE:FLEXIBLE WEDGE,SOLID WEDGE,DOUBLE WEDGE
3. BODY GASKET: CLASS 150-SMOOTH ELLIPSE COMPOSITE GASKET; CLASS 300-HALF-GROOVE SPIRAL WOUND GASKET; CLASS 600-FULL-GROOVE SPIRAL WOUND GASKET; CLASS 900~1500-OCTAGONAL RING GASKET AND OVAL RING GASKET
4. BACK SEAT DESIGN
The functions of products: high pressure trunnion ball valve is to cut off or connect the medium,is suitable for petroleum,chemical industry,fire and power station and different conditions pipe systems .
Suitable medium : water ,gas,oil,citric acid,acetic acid ,urea medium, corrosive &strong oxidizing medium.Operation method :Level,pneumatic,electric,hydraulic and pneumatic_hydraulic.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment : T/T, L/C, Western Union and PayPal
