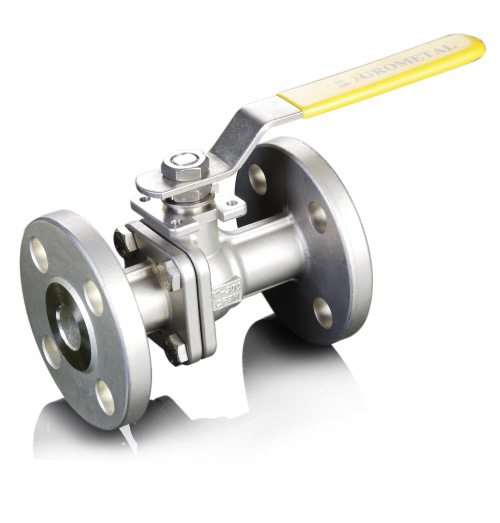

2 PC Ball Valve Flanged End
Products D escription : 2 PC Automatic Reset Ball Valves are widely used in industrial applications because they are very versatile and easy to maintain and operate. 1 PC Reduced Bore Ball Valve Female thread is designed to reduce holes. The valve body is made of investment casting, and the valve...
Products Description :
2 PC Ball Valve Flanged End Features:
Size Range: ½” – 8”
CF8M and WCB Bodies/316SS Trim
Fire Safe to API 607 6th Edition
Built-in ISO 5211 Mounting Pad for Easy Automation
ATEX 94/9/EC (Ex II 2 G-D EX-c II) Anti-static Design
TFM 50/50 Seat Material
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
TA-Luft (VDI 2440, Sec. 3.3.1.3) Certified Live-loaded
2 PC Ball Valve Flanged End Stem Packing
Lockable Lever Handle or “T” Handle
IEC 61508, SIL 2 capable
2 PC Ball Valve Flanged End Standards
Design: ASME B16.34, API 608
Fire Safe: API 607, ISO 10497
Face to Face: ASME B16.10
Wall Thickness: ASME B16.34
End Flange: ASME B16.5
Inspection and Testing: API 598
PACKAGING & DELIVERY :
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
