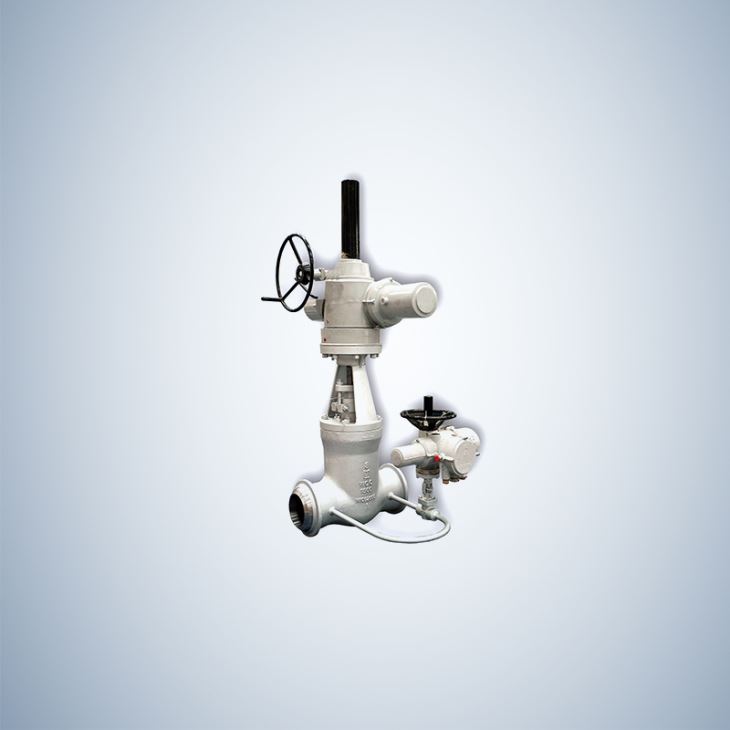

API Class 1500 Pressure Seal Bonnet Gate Valve With Bypass.

Product Specifications :

Standards:

DESIGN AND MANUFACTURE

API 600

FACE TO FACE DIMENSIONS

ASME B16.10

FLANGE ENDS DIMENSIONS

NPS 1/2''~24''

NPS 26''~36''

ASME B16.5

ASME B16.47

BW ENDS DIMENSIONS

ASME B16.25

PRESSURE-TEMPERATURE RATINGS

ASME B16.34

NORMAL PRESSURE

CLASS 900-2500

NORMAL DIAMETER

NPS 2''-16''


Design Features:

1. Pressure Sealing design

2. Wedge type: flexible wedge

, double Wedge

3. Back seat design

4. Outsied screw and yoke(O.S&Y)

5. Body gasket: smooth ellipse composite gasket for class 150; half-groove spiral wound gasket for class 300;

Full-groove spiral wound gasket for class 600; octagonal ring gasket and oval ring gasket for class 900~class 1500


Main Part Material:

ITEM

PARTNAME

STANDARD

ALLOY CARBON STEEL

STAINLESS STEEL

1

BODY

A216 WCB

A217 WC6

A351 CF8M

2

SEAT

A105

A182 F11

A182 F316

3

WEDGE

A216 WCB

A217 WC6

A351 CF8M

4

STEM

A182 F6

AISI 4140/4340

A182 F316

5

SEALING RING

AISI 1008/SS304L/SS316

6

BONNET

A216 WCB

A217 WC6

A351 CF8M

7

THRUST RING

A276 410

A276 410

A276 316

8

SEGMENT RING

A276 410

A276 410

A276 316

9*

LANTERN RING

276 410

276 410

A276 316

10

RETAINER

AISI 1025

182 F11

182 F316

11

BOLT/NUT

A193 B7,B7M/A194 2H,2HM

A193 B16/A194 4

A193 B8M/A194 8M

12

PACKING

GRAPHITE/PTF

13

GLAND

276 410

276 410

A276 316

14

GLAND FLANGE

A216 WCB

A217 WC6

A351 CF8

15

GLAND NUT

A194 2H/2HM

A194 4

A194 8

16

EYEBOLT

A193 B7/B7M

A193 B16

A193 B8

17

YOKE

A216 WCB

A217 WC6

A351 CF8

18*

GEAR

ASSEMBLY


*AVAILABLE UPON REQUEST FOR CLASS 300 AND ABOVE

*GEAR OPERATOR, ELECTRICAL OPERATOR, PNEUMATIC OPERATOR, HUDRAULIC OPERATOR ARE AVAILABLE
