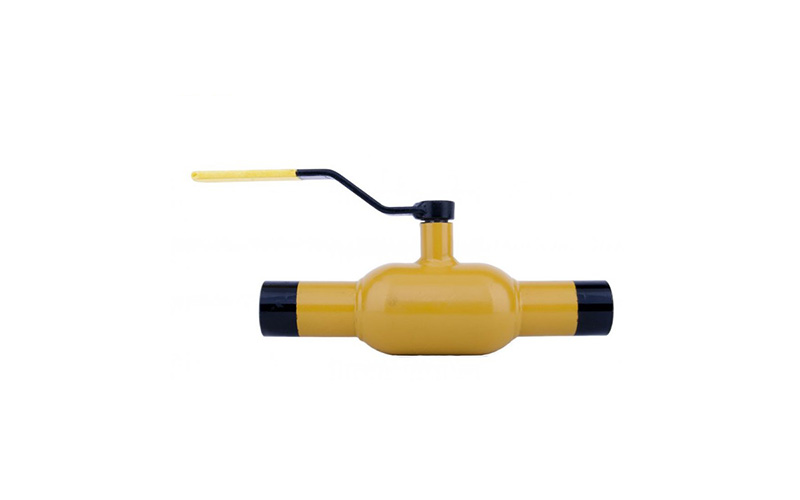

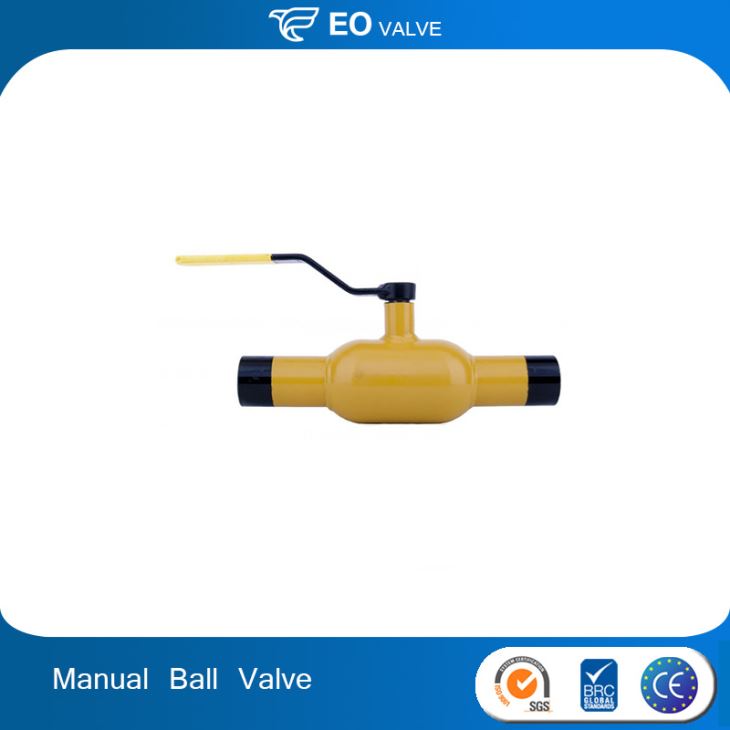

Manual Cast Steel All-welded Ball Valve
Full weld ball valve is widely used in city gas, city heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other types of pipeline equipment. Its superior quality and high performance is the ordinary cast steel ball valve can not be achieved , Its service life is far greater than the ordinary cast steel ball valve.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | Medium Pressure |
| Power: | Worm Gear |
| Material: | Casting |
| Temperature of Media: | -10℃ ~ 130℃ |
| Media: | Water |
| Port Size: | DN15-DN1400 |
| Place of Origin: | China (Mainland) |
| Model Number: | Q61F |
| Brand Name: | EO |
| Application: | General |
| Connection: | Welded |
| Body material: | Cast Steel |
| Ball Material: | Stainless Steel |
| Surface Coating: | Epoxy Coated |
| Suitable Medium: | Water, Gas, Oil...etc. |
| Standard: | DIN, JIS, ANSI, BS, GB, JB...etc. |
| Certification: | CE / ISO9001 / ISO14001 / TS / OHSAS18001 |
| Color: | According to customers requirements except red |
| Guarantee: | 12 months |
Manual Cast Steel All-welded Ball Valve
Full weld ball valve is widely used in city gas, city heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other types of pipeline equipment. Its superior quality and high performance is the ordinary cast steel ball valve can not be achieved , Its service life is far greater than the ordinary cast steel ball valve.
Technical Data of Full Welded Ball Valve
| Size | DN15-DN1400 |
| End Connection | Welded |
| Body Material | WCB |
| Ball Material | Stainless Steel |
| Working Pressure | PN10 ~ PN40 |
| Working Temperature | -10℃ to 130℃ |
| Suitable Medium | Water, Gas, Oil...etc. |
| Standard | DIN, JIS, ANSI, BS, GB, JB...etc. |
| Actuator | Handle, Worm Gear, Electric Actuator, Pneumatic Actuator...etc. |
| Color | According to customers' requirements except red |
| Inspection and Test | 100% quantity be tested before delivery |
Product Features of Full Welded Ball Valve
| 1. Does not require maintenance, adjustment and lubrication, easy to install, long-term reliable operation under the low running costs. |
| 2. The surface used the spray treatment process, beautiful gloss, the leading domestic level. |

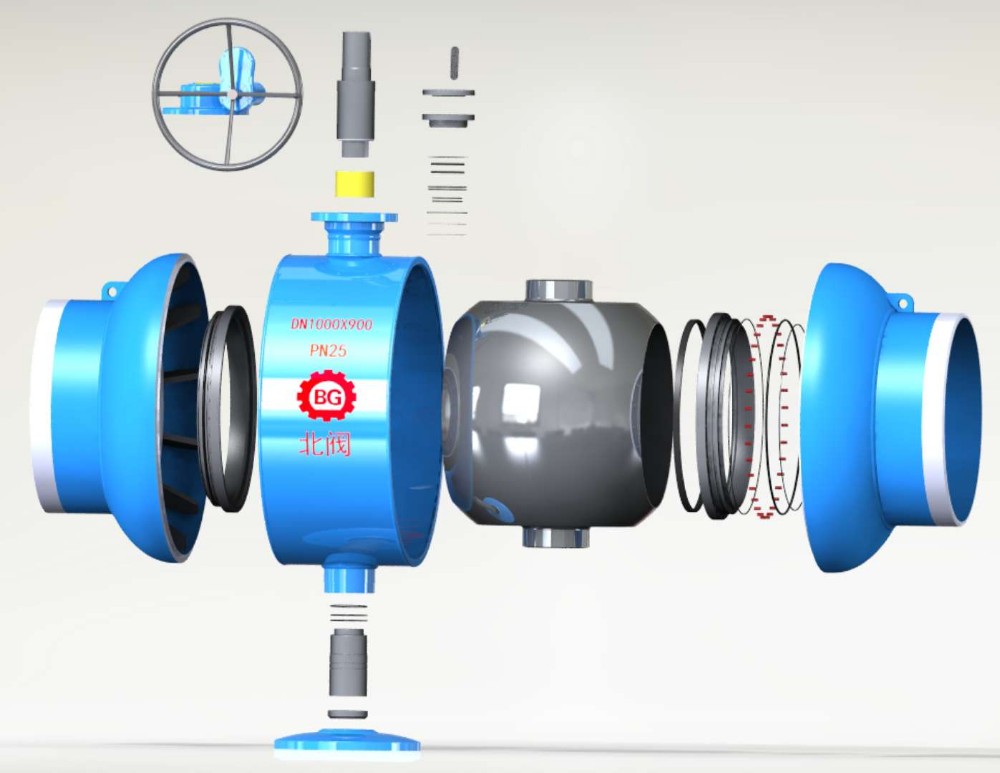

| 3. Body is welded structure, so the valve is light and easy to insulate. |
| 4. The valve seat is made of carbon fiber reinforced Teflon seal and disc spring without any leakage in the marked pressure and temperature range. |
| 5. Sphere processing process has advanced computer detector tracking test, ball have high processing accuracy. |
