PNEUMATIC ACTUATOR TRIPLE OFFSET BUTTERFLY VALVE

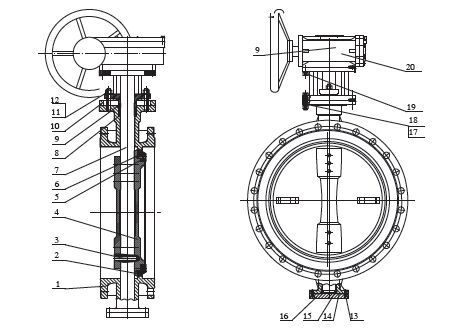

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM RING

SS+GRAPHITE/PTFE

3

PIN

A276 410

4

DISC

A216 WCB

5

SCREW

CARBON STEEL

6

SEAT GLAND

CARBON STEEL

7

STEM

A182 F6A

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY


APPLICATION :

1. Water Treatment Plant

2. Breweries

3. Drilling Rigs

4. Heating & Air Conditioning

5. Paper Industry

6. Chemical Industry


Product Specifications :

Standard: API1609.

Connection size: flange, wafer, lug.

Suitable medium: water, oil and air etc.

Suitable temperature: -20~425°c

Size: DN100--DN1500

Class: 150lb, 300lb



PRODUCT DESCRIPTION :

Nominal Diameter: DN80~DN4000, NPS3~NPS160;

Nominal Pressure: PN6~PN100, CL150~CL600;

Design Standard:  EN593, API609, ASME B16.34

End Connection: Flange, wafer, butt weld

Body Material:  A216 WCB, A352 LCB, A217 WC6, A351 CF8, A351 CF8M

Working temp:  -196℃~570℃.


STANDARD :

1. DESIGN AND MANUFACTURE: API 190/MSS SP-67/MSS SP-68

2. FACE TO FACE DIMENSIONS: API 609/BS 5155

3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”/NPS 26”~36”): ASME B16.5/AMSE B16.47

4. BW ENDS DIMENSIONS: ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34

6. PRESSURE: CLASS 150~CLASS600

7. SIZE: NPS 2″~36″
