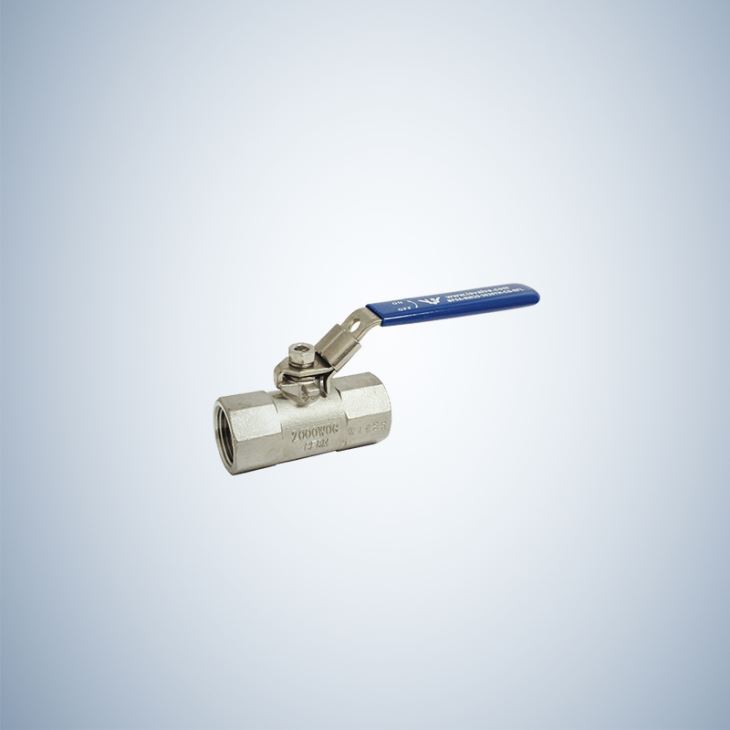

2000 WOG 1 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 2000 wog 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2000 WOG ONE PIECE THREADED BALL VALVE Specifications Stainless Steel......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 2000 wog 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2000 WOG ONE PIECE THREADED BALL VALVE Specifications Stainless Steel...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 2000 wog 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
2000 WOG ONE PIECE THREADED BALL VALVE
Product Specifications :
Stainless Steel Ball Valve Threaded
1)Material:SS201,SS304, SS316, WCB
2)Threaded:NPT,BSP,BSPT,DIN2999
3)Pressure:1000psi
Advantages
1) Investment casting.
2) Competitive Prices
3) Prompt Delivery
4) We can produce low-cost stainless steel 202 & 201.
Material:
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | BONNET | A216 WCB |
5 | THRUST WASHER | RPTFE |
6 | STEM | A276 410 |
7 | PACKING | GRAPHITE/PTFE |
8 | GLAND FLANGE | A216 WCB |
9 | LEVER | STAIN LESS |
Stainless Steel: 1) SS316 / ASTM A351-CF8M / DIN1.4408
2) SS304 / ASTM A351-CF8 / DIN1,4401
3) SS202 / ISO A-3
4) SS201 / ISO A-2
Carbon Steel : WCB / ASTM A216-WCB / DIN1.0619
Thread: ASME B 1.20.1(NPT), BS21(BSP), DIN 2999(PT)/259, ISO 228/1.
Size: 1/4", 3/8", 1/2", 3/4", 1", 11/4", 1.1/2", 2" ,2.1/2", 3", 4"
Investment casting body & caps.
Bottom-loaded Blow-out proof stem
Bore: Reduce / Full bore
Working pressure: 1000PSI ( PN63 ) WOG
Locking Device available.
CE marking available.
Inspection Test: API 598.
Suitable media: water, oil, air and some corrosive liquids.
Package: in plastic bags then in cartons then on veneer pallets or as per customers requirement
Designs
Full or reduced port design
Mono block (bar stock), two or three pieces split body design
Fire safe certification
Blowout-proof stem
Anti-static
Low emission control
Optional locking device
SO 5211 top flange
End Connections: RF, RTJ, BW, SW, NPT (2-pieces) - SW, NPT (3-pieces)
Standards
1. DESIGN AND MANUFACTURE: BS 5351/ ASME B16.34
2. FACE TO FACE DIMENSIONS: MANUFACTURER’S SPECIFICATION
3. THREAD ENDS DIMENSION: ASME B1.20.1
4. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
5. NORMAL PRESSURE: ASME B16.34
6. NORMAL PRESSURE: ASME B16.34
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
