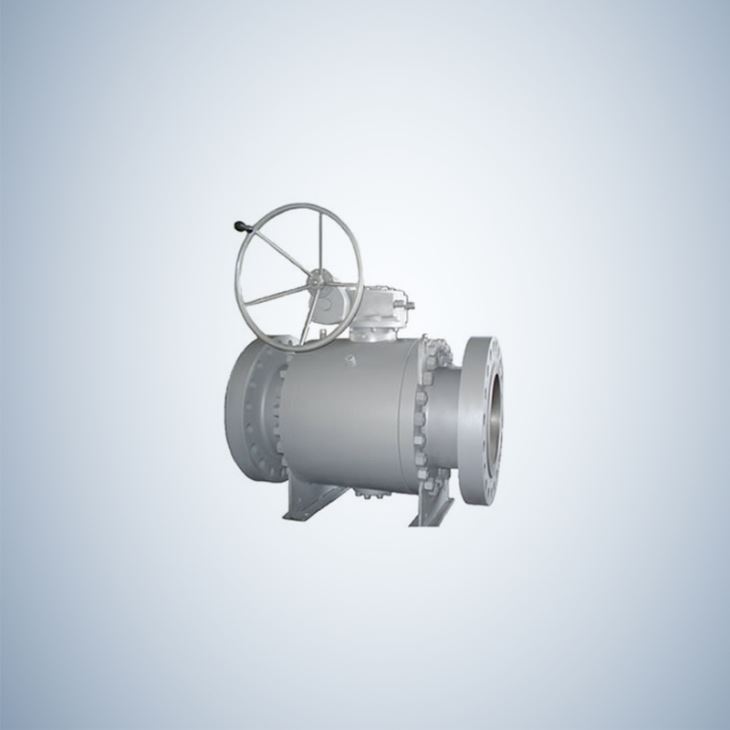

3 Piece forged Steel Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 3 piece forged steel trunnion ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 PIECE FORGED STEEL TRUNNION BALL VALVE API Series main... Products...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 3 piece forged steel trunnion ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 PIECE FORGED STEEL TRUNNION BALL VALVE API Series main...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 3 piece forged steel trunnion ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

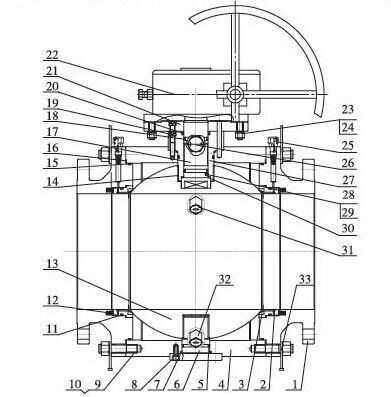

2 PIECE FORGED STEEL TRUNNION BALL VALVE
ITEM | PART NAME | MATERIAL |
1 | ADAPTER | A105 |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | BODY | A105 |
5 | O-RING | VITON |
6 | TRUNNION | A105+ENP |
7 | GASKET | 304SS/316SS+GRAPHITE |
8 | SCREW | A193 B7/BM |
9 | BOLT | ASTM A193 B7/BM |
10 | NUT | ASTM A194 2H/2HM |
11 | O-RING | VITON |
12 | SPRING | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | BEARING | AISI 1045+RPTFE聽 |
15 | O-RING | VITON |
16 | GASKET | 304SS/316SS+GRAPHITE |
17 | STEM | AISI 1040+ENP/AISI 1045+ENP |
18 | O-RING | VITON |
19 | SCREW | CARBON STEEL |
20 | PACKING | GRAPHITE/PTFE |
21 | CONNECTING PLATE | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | NUT | CARBON STEEL |
25 | GREASE FITTING(SEAT) | CARBON STEEL |
26 | GREASE FITTING(STEM) | CARBON STEEL |
27 | PACKING BOX | A105+ENP |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | THRUST WASHER | PTFE |
31 | DRAIN VALVE | CARBON STEEL |
32 | PLUG | CARBON STEEL |
33 | SUPPORT | CARBON STEEL |
Product Specifications :
API Series main connection size ：
NPS | in | 1/2 | 3/4 | 1 | 1-1/41-1/22 | 2-1/2 | 3 | 4 | 6 | 8 | 10 |
DN | mm | 15 | 20 | 25 | 32/40/50 | 65 | 80 | 100 | 150 | 200 | 25 |
L(RF) | mm | 108 | 117 | 127 | 140/165/178 | 191 | 203 | 229 | 394 | 457 | 533 |
L(BW) | mm | - | - | 165 | 178/191/216 | 241 | 283 | 305 | 457 | 521 | 559 |
L(RTJ)
| mm | 119 | 130 | 140 | 152/178/191 | 203 | 216 | 241 | 406 | 470 | 546 |
H | mm6 | 70 | 93 | 93 | 102/118/145 | 148 | 152 | 203 | 338 | 456 | 510 |
W | mm | 130 | 130 | 160 | 180/200/300 | 300 | 350 | 400 | 750 | 300 | 400 |
WT(RF) | kg | 3 | 4 | 5.5 | 7.6/8.5/12 | 18 | 24 | 40 | 82 | 185 | 300 |
Full port class 300 :
NPS | in | 1/2 | 3/4 | 1 | 1-1/41-1/22 | 2-1/2 | 3 | 4 | 6 | 8 |
DN | mm | 15 | 20 | 25 | 32/40/50 | 65 | 80 | 100 | 150 | 200 |
L(RF) | mm | 108 | 117 | 127 | 140/165/178 | 191 | 203 | 229 | 394 | 457 |
L(BW) | mm | - | - | 165 | 178/191/216 | 241 | 283 | 305 | 457 | 521 |
L(RTJ)
| mm | 119 | 130 | 140 | 152/178/191 | 203 | 216 | 241 | 406 | 470 |
H | mm6 | 70 | 93 | 93 | 102/118/145 | 148 | 152 | 203 | 338 | 456 |
W | mm | 130 | 130 | 160 | 180/200/300 | 300 | 350 | 400 | 750 | 300 |
WT(RF) | kg | 3 | 4 | 5.5 | 7.6/8.5/12 | 18 | 24 | 40 | 82 | 185 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
