NPT 1 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China npt 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. NPT ONE PIECE THREADED BALL VALVE 1). Size:... Products D escription :...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China npt 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. NPT ONE PIECE THREADED BALL VALVE 1). Size:...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China npt 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

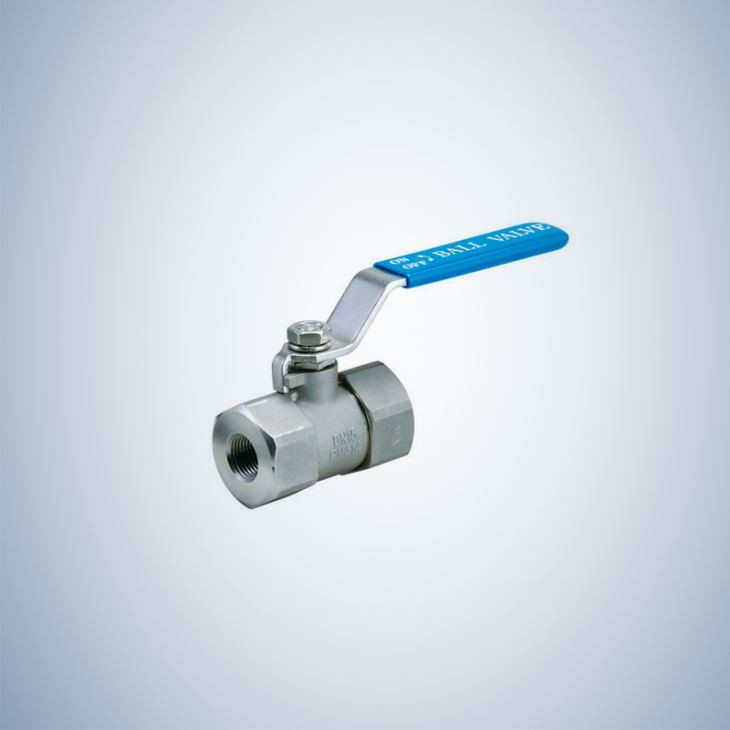

NPT ONE PIECE THREADED BALL VALVE
Product Specifications :
1). Size: 1/4”,3/8”,1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4”
2). Valve Body Material: 201/304/316/WCB/CF8/CF8M
3). Seat Material: PTFE,RPTFE (15% Glass Fiber),RPTFE(25% Carbon Fiber),PPL etc.
4). Available Connection: NPT,BSP,BSPT,DIN259/2999,SW/BW.Clamp,Flange
5). Design Standard: ASME B16.34
6). Handle: Lever Handle,Locking Device Handle Upon Request
7). Operation: Manual,Pneumatic,Electric.
Normal Pressure: | 1000psi |
Strength Testing Pressure: | PT 2.4,3.8,6.0,9.6Mpa |
Seat Testing Pressure(Low Pressure): | 0.6Mpa |
Applicable Temp: | -20°C-425°C |
Certification: | ISO9001-2008/CE/TS |
Sample Testing: | One Sample for free( Under $10),Freight Collect |
Packing: | Plastic Bag, Carton & Plywood Cases/According to customers’ requirement. |
Payment: | Usually T/T, but L/C also acceptable. |
Port: | NINGBO/SHANGHAI, Customers’ Request |
Delivery Time: | Usually Within 35days after receiving T/T deposit Payment |
Term of Delivery: | FOB/CNF/CIF, Customers’ Request |
Standards:
1. DESIGN AND MANUFACTURE: BS 5351/ ASME B16.34
2. FACE TO FACE DIMENSIONS: MANUFACTURER’S SPECIFICATION
3. THREAD ENDS DIMENSION: ASME B1.20.1
4. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
5. NORMAL PRESSURE: ASME B16.34
6. NORMAL PRESSURE: ASME B1

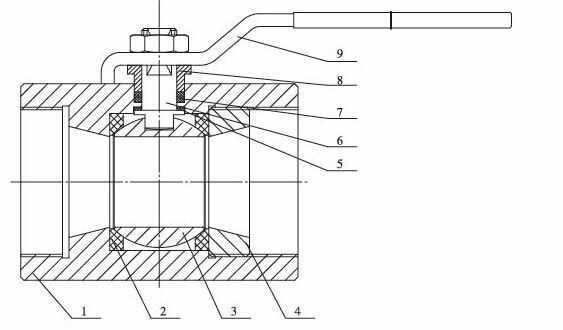

ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | BONNET | A216 WCB |
5 | THRUST WASHER | RPTFE |
6 | STEM | A276 410 |
7 | PACKING | GRAPHITE/PTFE |
8 | GLAND FLANGE | A216 WCB |
9 | LEVER | STAIN LESS |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
