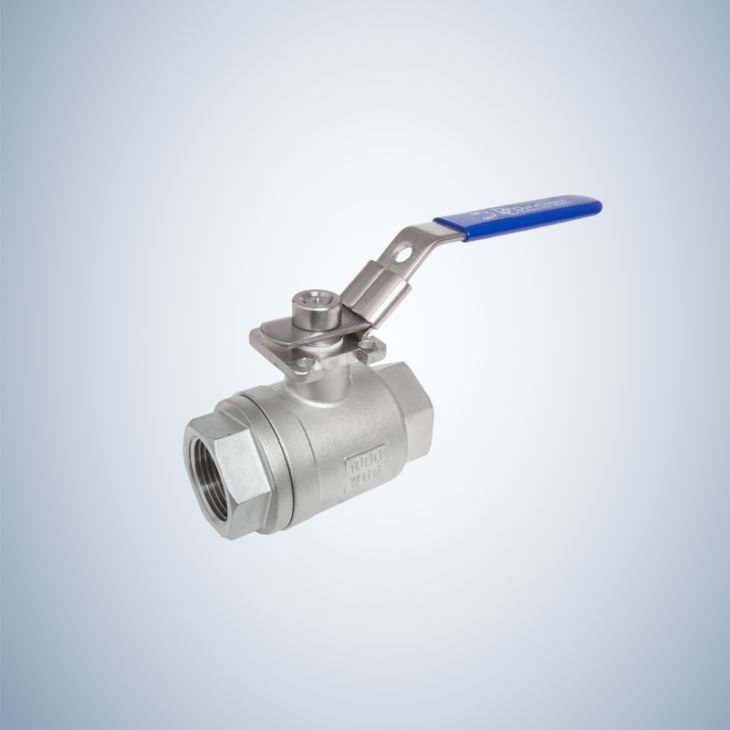

1 Inch 2 Piece Threaded Ball Valve

1 Inch 2 Piece Threaded Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 1 inch 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 1 inch two piece threaded ball valve standards: design features: 1.full......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 1 inch 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 1 inch two piece threaded ball valve standards: design features: 1.full...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 1 inch 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

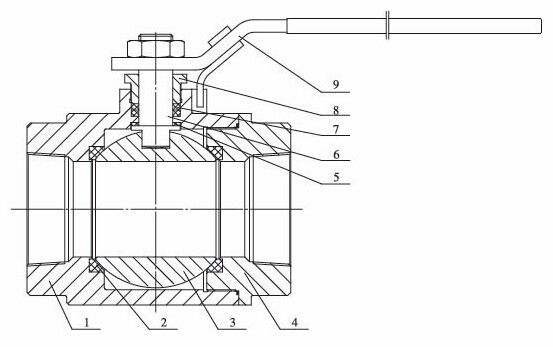

1 inch two piece threaded ball valve



PART NAME

MATERIAL


1

BODY

A216 WCB

2

SEAT

PTFE/RPTFE

3

BALL

A105+ENP

4

BONNET

A216 WCB

5

THRUST WASHER

RPTFE

6

STEM

A276 410

7

PACKING

GRAPHITE/PTFE

8

GLAND FLANGE

A216 WCB

9

LEVER

STAIN LESS



Product Specifications :

standards:

1. design and manufacture:

bs 5351/ asme b16.34

2. face to face dimensions:

manufacturer’s specification

3. thread ends dimension:

asme b1.20.1

4. pressure-temperature ratings:

asme b16.34

5. normal pressure:

800psi-1000psi

6. normal diameter:

nps 1/2″~2″


design features:

1.full port design

2.2 piece threaded body

3.floating ball type

4.blow-out proof stem

5.fire safe design

6.anti-static device

7.with locking device



product description
1. name:  1/4" 316 female npt threaded 2 pcs ball valve
2. size: dn15-dn100,1/2"-12"  or  as required
3. standards: din,3a,sms,iso,idf
4. material: ss304,ss316l
5. max working pressure: 10bar
6. max working temp: 120 °c
7. type: manual , pneumatic
8. seal ring:  silicon, epdm, vi ton, ptfe or required
9. connection: welded, threaded, clamped & flange ended
10. sample: sample and freight cost can be negotiable
11. applications: pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
