Manual Operated Triple Offset Triple Eccentric Butterfly Valves
Products Details : Shenyang EO Valve Co.,Ltd is a leading China manual operated triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. MANUAL OPERATED HARD SEAL TRIPLE OFFSET BUTTERFLY VALVE......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China manual operated triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. MANUAL OPERATED HARD SEAL TRIPLE OFFSET BUTTERFLY VALVE...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China manual operated triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

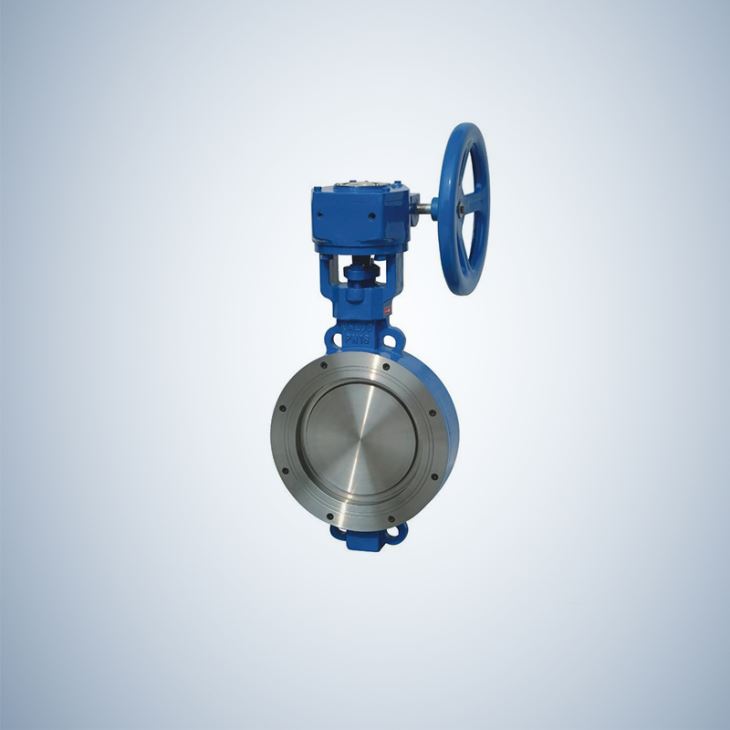

MANUAL OPERATED HARD SEAL TRIPLE OFFSET BUTTERFLY VALVE
TRIPLE OFFSET BUTTERFLY VALVE :
APPLICATION :
1. Water Treatment Plant
2. Breweries
3. Drilling Rigs
4. Heating & Air Conditioning
5. Paper Industry
6. Chemical Industry
7. Gas Plant
8. Pneumatic Conveyors
9. Sugar Industry
10. Waste Effluent Treatment Plant
11. Cooling Water Circulation
12. Compressed Air
MATERIAL LIST
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM RING | SS+GRAPHITE/PTFE |
3 | PIN | A276 410 |
4 | DISC | A216 WCB |
5 | SCREW | CARBON STEEL |
6 | SEAT GLAND | CARBON STEEL |
7 | STEM | A182 F6A |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
Product Specifications :
STANDARD :
1. DESIGN AND MANUFACTURE: API 190/MSS SP-67/MSS SP-68
2. FACE TO FACE DIMENSIONS: API 609/BS 5155
3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”/NPS 26”~36”): ASME B16.5/AMSE B16.47
4. BW ENDS DIMENSIONS: ASME B16.25
5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
6. PRESSURE: CLASS 150~CLASS600
7. SIZE: NPS 2″~36″
DESCRIPTION :
Nominal Diameter: DN80~DN4000, NPS3~NPS160;
Nominal Pressure: PN6~PN100, CL150~CL600;
Design Standard: EN593, API609, ASME B16.34
End Connection: Flange, wafer, butt weld
Body Material: A216 WCB, A352 LCB, A217 WC6, A351 CF8, A351 CF8M
Working temp: -196℃~570℃.
Thanks for your visiting.
We look forward to your inquiry.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
