WOG1000 3 Piece Bolted Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China wog1000 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WOG 1000 THREE PIECE BOLTED BALL VALVE Description 1)Material: SS304,......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China wog1000 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WOG 1000 THREE PIECE BOLTED BALL VALVE Description 1)Material: SS304,...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China wog1000 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

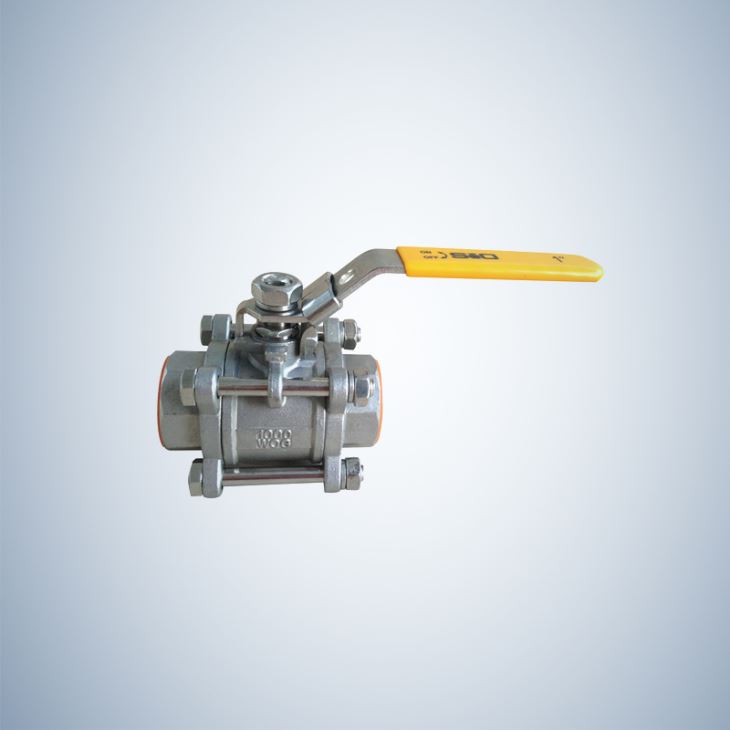

WOG 1000 THREE PIECE BOLTED BALL VALVE
Product Specifications :
Description
1)Material: SS304, 304L, 316, 316L, SS201
2)Size: 1/4''-4'&DN6-DN100
3)Certificate: ISO9001: 2000, CE
4)Working pressure: 1000psi(6.4MPa)
5)Connection end: Optional BSPT\NPT\DIN2999, BW/SW/Flange/Clamp
6)Suitable medium: Water, oil, gas, air and some corrosive liquid
Three piece bolted ball valve specification
Nominal pressure | PN | 1.6, 2.5, 4.0, 6.4 | MPA | ||
Strength testing pressure | PT | 2.4, 3.8, 6.0, 9.6 | |||
Gas sealing testing pressure(low pressure) | 0.6 | ||||
Sealing testing pressure(high pressure) | 1.8, 2.8, 4.4, 7.1 | ||||
Applicable medium | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R | ||
Water, Oil, Gas | acid | Acetic acid | |||
| Applicable temperature | -40~180°C | ||||

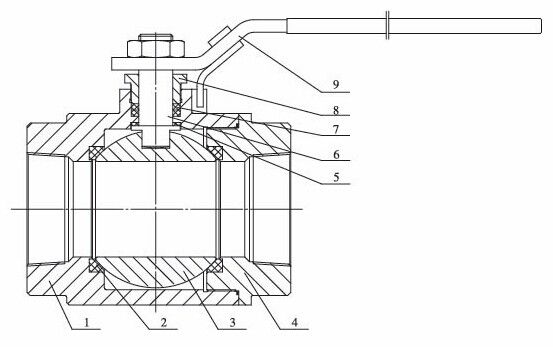

Main external dimensions:
Size | 1/4" | 3/8" | 1/2' | 3/4" | 1" | 1" | 1" | 2" |
D | 5.0 | 7.0 | 9.2 | 12.5 | 15.0 | 20.0 | 24.5 | 32 |
L | 40 | 45 | 58 | 60 | 72 | 78 | 83 | 10 |
H | 35 | 37 | 43.5 | 47 | 50 | 57 | 69 | 74.5 |
E | 64 | 70 | 90 | 90 | 103 | 103 | 127 | 127 |
Weight(kg) | 55 | 95 | 165 | 250 | 405 | 625 | 850 | 1400 |
Features:
1. Full Port
2. API607 4th Edition Fire-safe Design Available (W306A)
3. Anti-static Configuration
4. Blow-out Proof Stem
5. Live Loaded Stem Seal
6. Integrated Mounting Pad
7. Fully Encapsulated Body Seals
8. Locking Handle
9. Variety of seat and seal material: Suitable for severe applications
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
