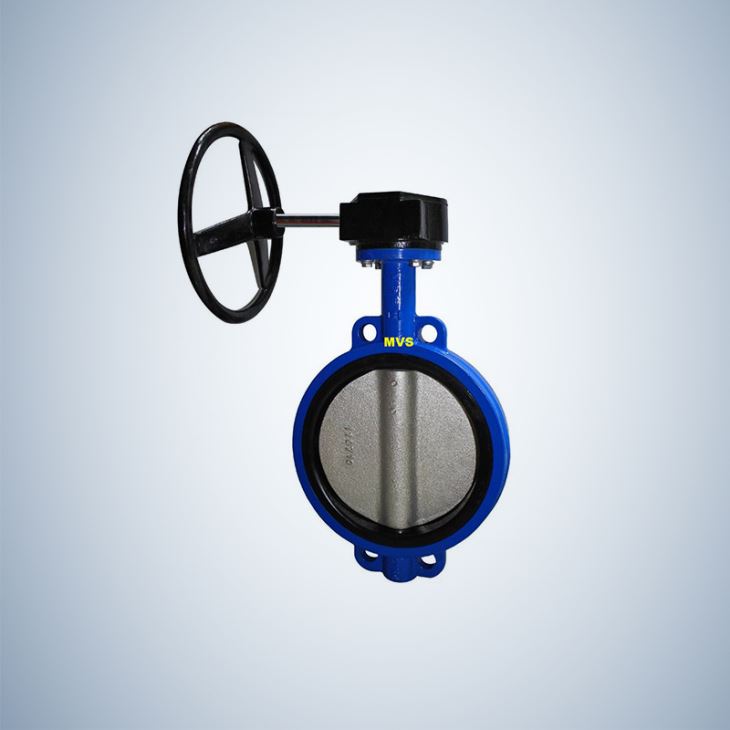

Wafer Type Concentric Butterfly Valve

Wafer Type Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China wafer type concentric butterfly valve, gear butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WAFER TYPE CONCENTRIC BUTTERFLY VALVE DETAILED......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China wafer type concentric butterfly valve, gear butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WAFER TYPE CONCENTRIC BUTTERFLY VALVE DETAILED...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China wafer type concentric butterfly valve, gear butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Product Applications :

It is widely used in pipelines as control or throttling apparatus for supply and drainage pipeline of potable water, seawater, waste water, petrochemical industry, energy and power, shipping, food and drug, natural gas, coal gas, HVAC and fire protection systems as well as the building pipelines.



Product Specifications :

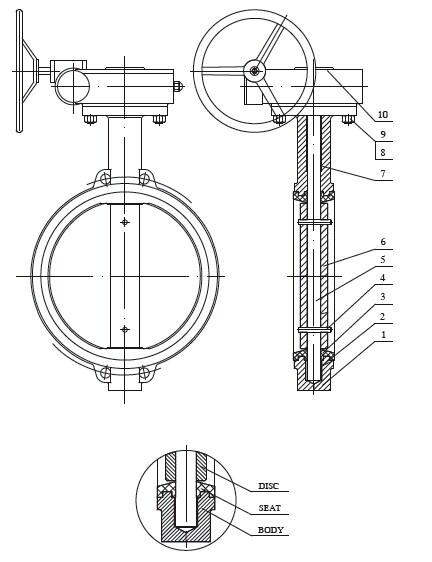

WAFER TYPE CONCENTRIC BUTTERFLY VALVE


ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

BUSHING

PTFE

3

SEAT

PTFE/RUBBER

4

PIN

A276 410

5

STEM

A182 F6

6

DISC

A216 WCB

7

BUSHING

PTFE

8

GEAR OPERATOR

ASSEMBLY


DETAILED FEATURES:

1) Sizes: DN40-DN600

2) Pressure: PN10/PN16/CLASS150

3) Temperature:

EPDM liner:-10Deg. C-120Deg. C

NBR liner:-10 Deg. C-82 Deg. C

Vi-ton liner: -10 Deg. C-150 Deg. C

4) Material:

A. Body: Cast iron/Ductile iron/WCB/Stainless Steel

B. Disc: DI/CF8/CF8M/C95400

C. Seat: NBR/EPDM/PTFE

D. Shaft: SS420/SS316

E: Bushing: Glass backed PTFE /Lubricated bronze

F. Operation: Malleable iron lever/Aluminum Lever/Gear/Pneumatic/Electrical


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details :  4-5 weeks after receipt of down payment by T/T

Payment : T/T, L/C, Western Union and PayPal
