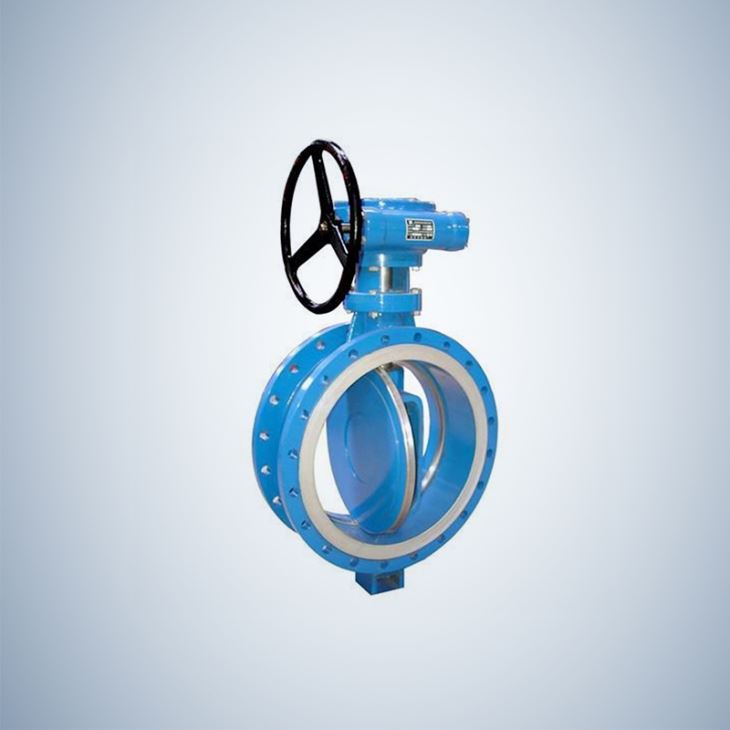

Double Flange Type Concentric Butterfly Valve

Double Flange Type Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China double flange type concentric butterfly valve, flange butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DOUBLE FLANGE CONCENTRIC BUTTERFLY......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China double flange type concentric butterfly valve, flange butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DOUBLE FLANGE CONCENTRIC BUTTERFLY...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China double flange type concentric butterfly valve, flange butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Product Applications :

It is widely used in transmission fluid to the drainage pipes, fire, air-conditioning, gas, petroleum, chemicals, water treatment, municipal, pipeline engineering and shipbuilding role as the control fluid.



DOUBLE FLANGE CONCENTRIC BUTTERFLY VALVE

Manual Butterfly Valve Features :

This product adopts three-eccentric structure, has no friction between valve plate and valve seat, high flow rate and long service life and is able to increasingly tighten.



Product Specifications :

1) Model Number: cast iron butterfly valve

2) Material: Casting

3) Port Size: 2"-36"

4) Normal pressure: Class 150-class 300

5) End flange dimension: ASME B16.5

6) Face to face dimension: API 609

7) Inspection and test: API 598

8) Pressure-temp rating: ASME B16.34

9) Design & Manufacture: API 609

10) Temperature of Media: Medium Temperature

11) Color: Blue or as per the client's request



MAIN DIMENSIONS

DN

A

B

C

D

E

F

G

H

L

mm

Inch

50

2"

92

60

8

16

100

53

266.7

32

52

65

2.5"

102

76

8

16

108

61

266.7

32

52

80

3"

102

89

8

16

114

68

266.7

32

52

100

4"

116

114

10

16

136

85

266.7

32

52

125

5"

125

141

10

16

162

99

266.7

32

52

150

6"

125

165

10

16

174

111

266.7

32

52

200

8"

138

219

11

19

230

145

359

50

75.2


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details : 4-5 weeks after receipt of down payment by T/T

Payment:T/T, L/C, western union

Thanks for your visiting.

We look forward to your inquiry.
