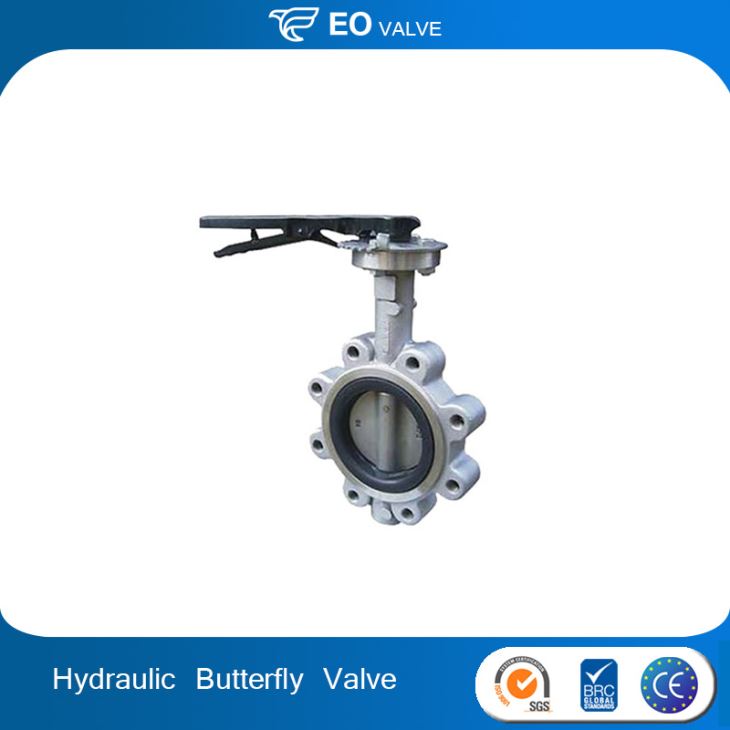

Dn 80 Wafer Hydraulic Actuator Butterfly Valve
Dn 80 Wafer Hydraulic Actuator Butterfly Valve;Material:Casting, Cast iron , Ductile iron , Packing:plywood box or according to speci,Application:General, Water , Gas , Oil , Chem.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Low Pressure, PN10, PN16, PN25, Class 125 |
| Power: | Manual |
| Material: | Casting, Cast iron , Ductile iron , WCB , Stainless Steel |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | DN50 to DN1400MM |
| Place of Origin: | China (Mainland) |
| Model Number: | wafer butterfly valve |
| Brand Name: | EO |
| Application: | General, Water , Gas , Oil , Chemical industry |
| Connection: | Wafer; Flange |
| Demension: | DN40 to DN1200MM |
| operation: | hand lever , gear box , electric actuator , hydraulic actuator |
| Standard: | DIN, BS, GS, AWWAC504, Gost |
| Colour: | Red , Green , Grey , Blue |
| Packing: | plywood box or according to specific |
Dn 80 Wafer Hydraulic Actuator Butterfly Valve
Product Description
Standards
Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598

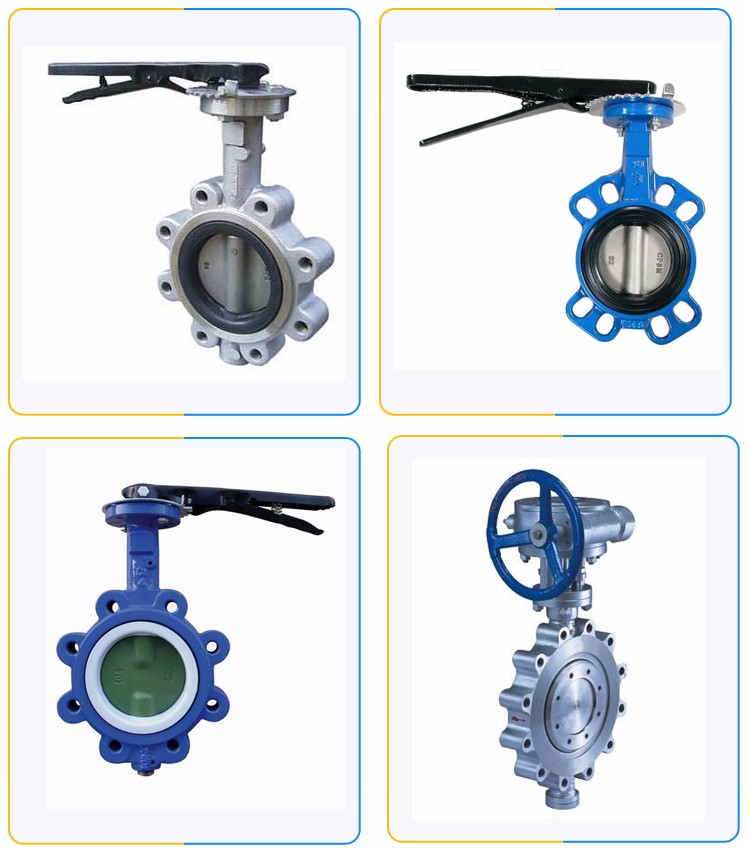

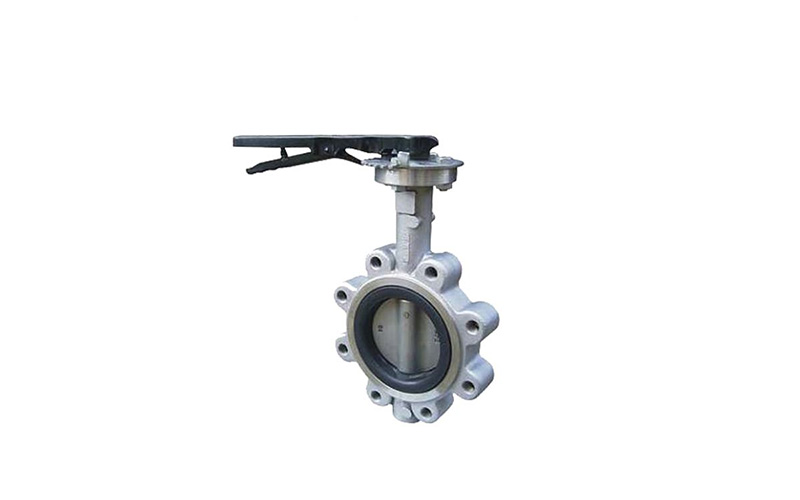

Product Pictures

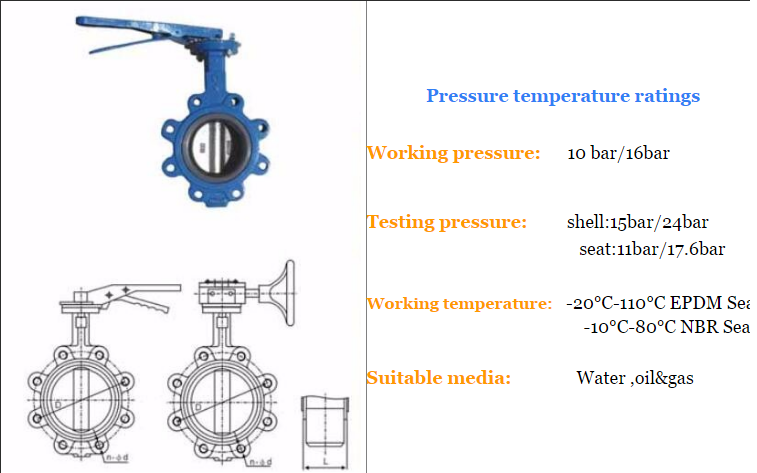

Performance
Nominal diameter: DN50-DN1200
Nominal pressure PN: 1.0, 1.6, 2.0, 2.5MPa
Testing pressure (water) Ps (MPa):
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure
End flange :ANSI B16.1/ASME B16.45 B16.5/BS 4504/AS 2129/BS 4504/DIN 2501/ISO 7005/JIS
5 K 10K 16K
Face to face : API 609/ISO 5752/BS 5155/EN 558/DIN 3202 1K
Top flange : ISO 5211
Normal pressure : DN40-DN600 PN1.0/1.6MPa(150/200psi)

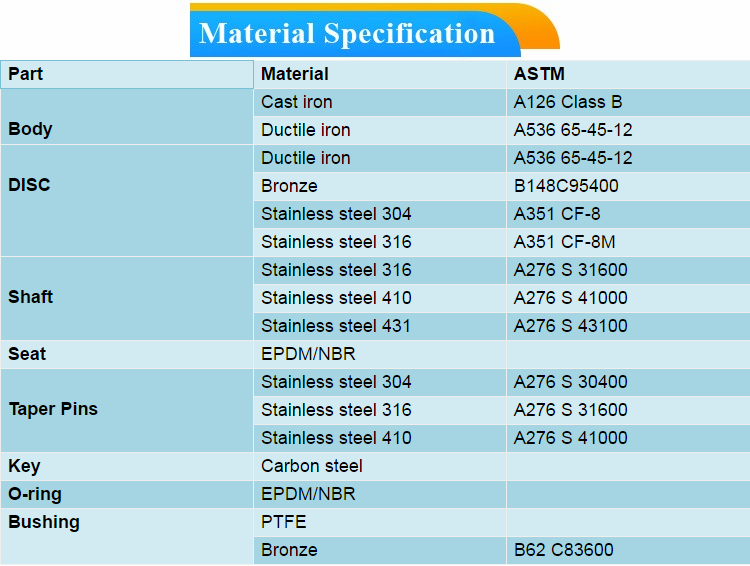

Body : CI/DI/WCB/AL-Bronze/CF8/CF8M(cast iron/ductile iron/carbon steel/Aluminum bronze)
Disc : CI/DI/WCB/AL-Bronze/CF8/CF8M/1.4529/1.4462(cast iron/ductile iron/carbon steel
/Aluminum bronze/duplex stainless stell)
Stem : WCB/SS304/SS316/SS410/SS431/MONEL K500/17-4PH
Seat : NBR(Buna-N)/Hypalon/EPDM/Viton/Nature rubber/PTFE/Abrasion resistant rubber/
Heat resistant EPDM
Suitable
temperature : -20~200°C(depending on pressure,medium and material)
Suitable medium : Flesh water,sawage,sea water,air,vapor,food,medicine,oils,alkais,salt etc.
Nominal diameter :DN40-DN1200
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
