Disc Double Flange Concentric Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China disc double flange concentric butterfly valve, double disc valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DISC DOUBLE FLANGE CONCENTRIC BUTTERFLY......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China disc double flange concentric butterfly valve, double disc valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DISC DOUBLE FLANGE CONCENTRIC BUTTERFLY...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China disc double flange concentric butterfly valve, double disc valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

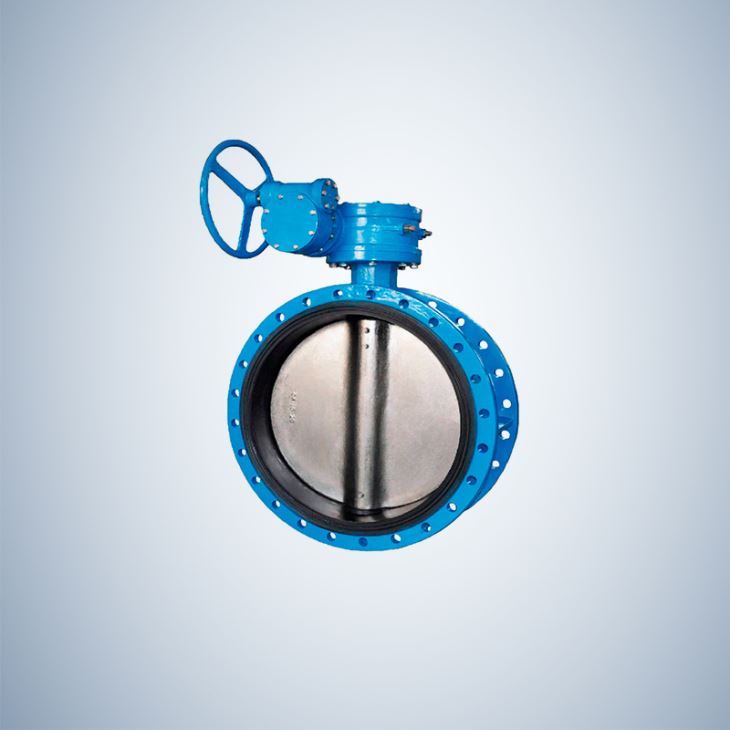

DISC DOUBLE FLANGE CONCENTRIC BUTTERFLY VALVE
Product Specifications :
QUICK DETAILS
1) Model Number: cast iron butterfly valve
2) Material: Casting
3) Port Size: 2"-36"
4) Normal pressure: Class 150-class 300
5) End flange dimension: ASME B16.5
6) Face to face dimension: API 609
7) Inspection and test: API 598
8) Pressure-temp rating: ASME B16.34
9) Design & Manufacture: API 609
10) Temperature of Media: Medium Temperature
11) Color: Blue or as per the client's request
DESIGN FEATURES
1. SIMPLE STRUCTURE AND SEALING PERFORMANCE
2. GOOD FLOW REGULATING FUNCTION AND BI-DIRECTIONAL SEALING FEATURE
STANDARD
1. DESIGN AND MANUFACTURE: | API 609 |
2. FACE TO FACE DIMENSIONS: | API 609 |
3.FLANGE ENDS DIMENSIONS: NPS1/2”~24” | ASME B16.5 |
4. PRESSURE-TEMPEARTURE RATINGS: | ASME B16.34 |
5. PRESSURE: | CLASS 150 |
6.SIZE: | NPS 2″~16″ |
MATERIAL LIST
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | BUSHING | PTFE | PTFE | PTFE |
3 | SEAT | PTFE/RUBBER | PTFE/RUBBER | PTFE/RUBBER |
4 | PIN | A276 410 | A276 304 | A276 316 |
5 | STEM | A182 F6 | A182 F304 | A182 F316 |
6 | DISC | A216 WCB | A352 LCC | A351 CF8M |
7 | GEAR OPERATOR | ASSEMBLY | ||
GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR ETC.ARE AVALIABLE
NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
