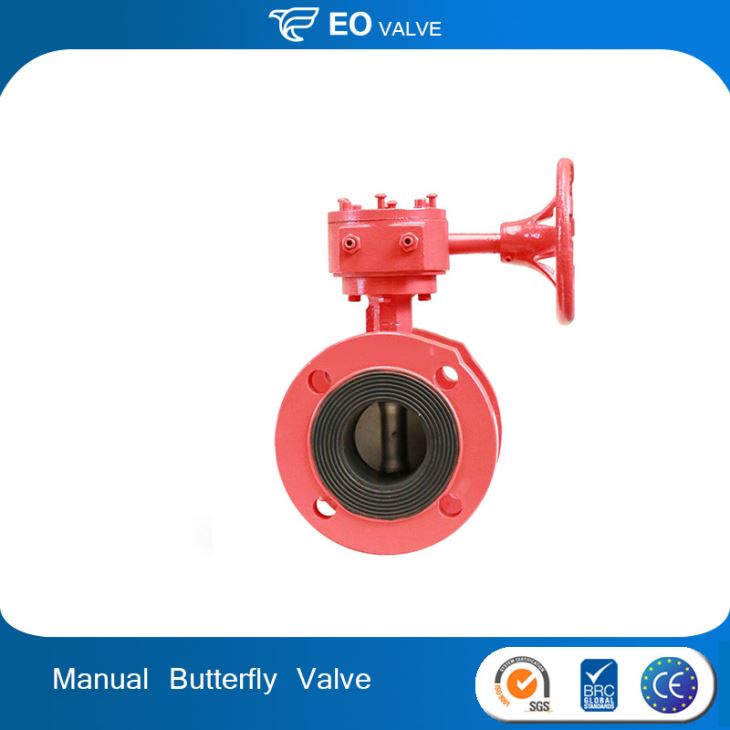

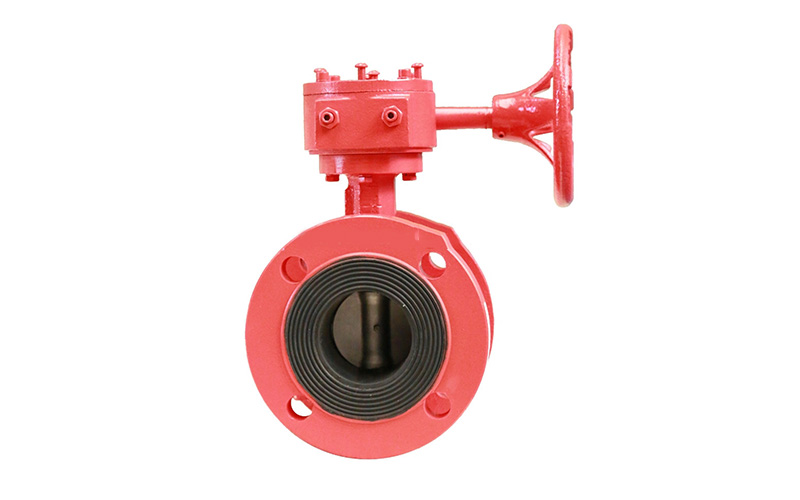

300PSI Manual FM Approved Butterfly Valves

300PSI Manual FM Approved Butterfly Valves

300PSI Manual FM Approved Butterfly Valves;Temperature range: -40°c to 232 °c depending on the medium and selected body/seat materials,Operating Pressure:Max 232 psi(16 bar) for DN50-DN300.

Send Inquiry



Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly, Centreline
Pressure:Low Pressure, 300PSI
Power:Manual
Material:Casting
Temperature of Media:Medium Temperature
Media:Water
Port Size:DN100-DN600
Place of Origin:China (Mainland)
Model Number:Butterfly Valve
Brand Name:EO
Application:General
Name:300PSI Manual FM Approved Butterfly Valves
Body:DI
Disc:DI
Seat:Resilient Seat
Connection:Lug/Wafer/Flange
Weight:depend on size
Paint:Painting or Spray
Color:depend on custom






1,High quality and competitive prices

2,CE,DNV,ISO 9001 approved

3,WRAS,DVGW rubber avaibable

Face to Face:API 609 Category A

                        MSS SP-67

                        BS 5155 Series 4

                        ISO 5752 Series 20

End connection:ANSI 16.1 CLASS 125 ,B16.5 Class 150

                             EN1092-2 PN10.PN16/

                             JIS 5K,10K ,16K

Top Flange: ISO 5211

Tightness Check: API 598 Table 5

Temperature range: -40°c to 232 °c depending on the medium and selected body/seat materials

Operating Pressure:Max 232 psi(16 bar) for DN50-DN300

Max 150 psi(10 bar) fro DN350-DN1200


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
