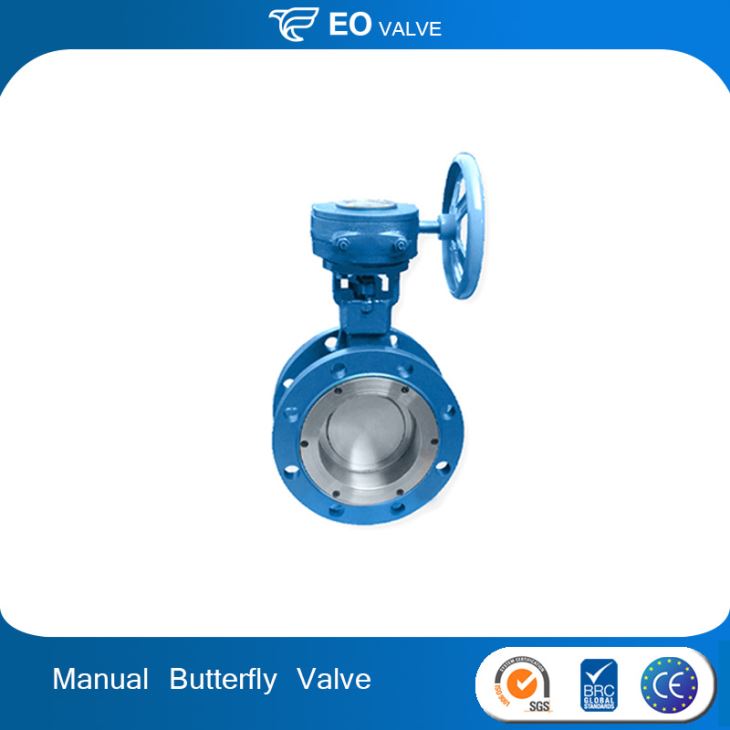

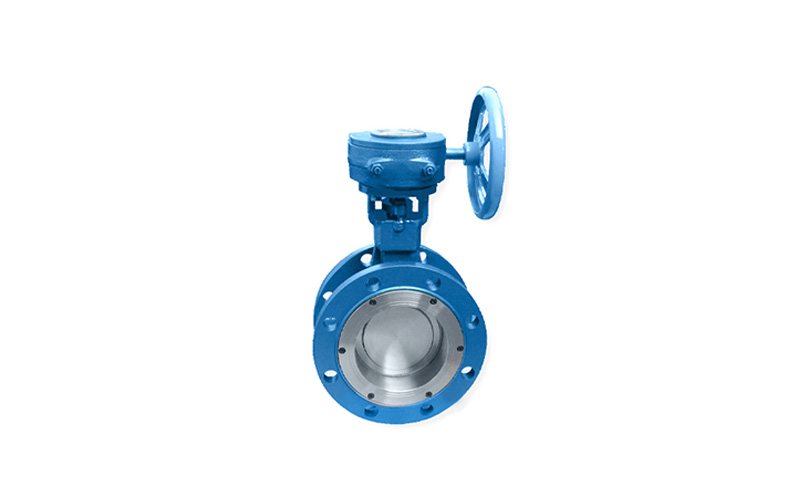

Antirust Worm Gear Operated Double Flange Butterfly Valve

Antirust Worm Gear Operated Double Flange Butterfly Valve

Triple eccentric butterfly valve series is the newly developed long life and energy saving products, the sealing is metal to metal or seal ring to metal, stainless steel plate and composite graphite to metal. Suitable for working condition of high temperature and high pressure. Triple eccentric butterfly valve is widely used in petroleum, natural gas, piped gas and medicine food industry.

Send Inquiry



Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:PN1-PN600
Power:Hydraulic, Manual, Pneumatic, Solenoid
Material:Carbon Steel, Stainless Steel, Brass, Aluminum
Temperature of Media:Normal Temperature
Media:Oil, Water, Gas, Acid, Base
Port Size:DN16-DN2000
Place of Origin:China (Mainland)
Model Number:EO-BUV085
Brand Name:EO
Application:General, Oil, Water, Gas, Acid, Base
International Standard:DIN, ASTM, GB, ISO, ANSI, AISI, JPI, JB
Driving Mode:Pneumatic, Manual, Hand Wheel, Handle, Lever, Chain, Worm Wheel
Joint Type:Threaded, Flange, Welded, Wafer, Butt-joint, Lug, Tri-clamp, Sleeve
Purpose & Usage:Cut-off Valve, Shut-off Valve
Surface Finish:Enamel
Machining Equipment:NC Lathing Machine, NC Boring Machine, Drilling Machine
Testing Equipment:Hydrolic Testing Machinging
Inspection:Hydro Test, Shell Test, Seal Test




antirust worm gear operated double flange triple eccentric butterfly valve manual butterfly valve



Product Description:

Butterfly valve, include Lug type, wafer type, flange type and Triple eccentric type products been produced in EO enterprise, the Lug and Wafer type Butterfly valves are designed for shutoff and isolation service of liquids and gases, thin profile, on center disc provides high flow capacity. Body wall thickness confirms to the requirement of ANSI class 125 and AWWA standards.



Triple eccentric butterfly valve series is the newly developed long life and energy saving products, the sealing is metal to metal or seal ring to metal, stainless steel plate and composite graphite to metal. Suitable for working condition of high temperature and high pressure.  Triple eccentric butterfly valve is widely used in petroleum, natural gas, piped gas and medicine food industry.


Product Specifications:
TypeFlanged / Wafer / Lug / Triple eccentric
Size50-2000 mm/ 2"-80"
BodyDuctile Iron / WCB / CF8 / CF8M
DiscDuctile Iron / WCB / CF8 / CF8M / AL bronze
SeatPTFE / RPTFE / EPDM / Buna N / Viton / SS304+Graphite
Stem17-4-PH SS ASTM A564 Type 630 / ASTM A479 SS410
Operation LeverGearbox / Pneumatic / Electric Actuator
Temperature

(-)40°C to (+)200°C (for Soft Seated Valves)

(-)100°C to (+)600°C (for Metal Seated Valves)

Pressure ASMEClass 150 / 300 / 600 / 900




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
