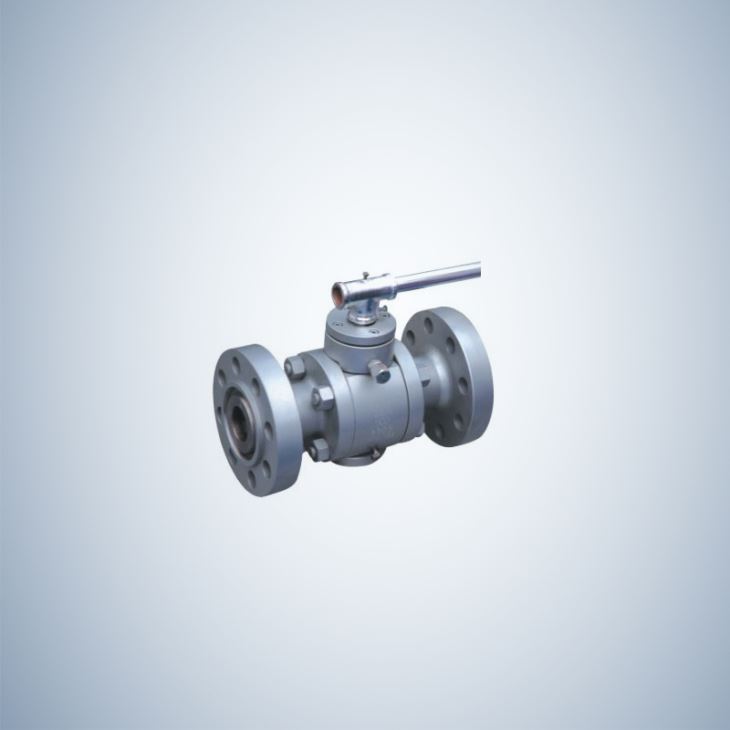

A105 Forged Steel Trunnion Ball Valve with Lever Operation
Products Details : Shenyang EO Valve Co.,Ltd is a leading China a105 forged steel trunnion ball valve with lever operation, fixed ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. A105 Forged Steel Trunnion......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China a105 forged steel trunnion ball valve with lever operation, fixed ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. A105 Forged Steel Trunnion...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China a105 forged steel trunnion ball valve with lever operation, fixed ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
A105 Forged Steel Trunnion Ball Valve with Lever
ITEM | PART NAME | MATERIAL |
1 | ADAPTER | A105 |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | BODY | A105 |
5 | O-RING | VITON |
6 | TRUNNION | A105+ENP |
7 | GASKET | 304SS/316SS+GRAPHITE |
8 | SCREW | A193 B7/BM |
9 | BOLT | ASTM A193 B7/BM |
10 | NUT | ASTM A194 2H/2HM |
11 | O-RING | VITON |
12 | SPRING | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | BEARING | AISI 1045+RPTFE聽 |
15 | O-RING | VITON |
16 | GASKET | 304SS/316SS+GRAPHITE |
17 | STEM | AISI 1040+ENP/AISI 1045+ENP |
18 | O-RING | VITON |
19 | SCREW | CARBON STEEL |
20 | PACKING | GRAPHITE/PTFE |
21 | CONNECTING PLATE | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | NUT | CARBON STEEL |
25 | GREASE FITTING(SEAT) | CARBON STEEL |
26 | GREASE FITTING(STEM) | CARBON STEEL |
27 | PACKING BOX | A105+ENP |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | THRUST WASHER | PTFE |
31 | DRAIN VALVE | CARBON STEEL |
32 | PLUG | CARBON STEEL |
33 | SUPPORT | CARBON STEEL |
Product Specifications :
Design description:
1.Full port design
2.BB,Bolted bonnet ,split body
3.Trunnion mounted ball type
4.Blow-out proof stem
5.Fire durable construction
6.Anti static device
7.Stopper device
8.ISO5211 mounting pad
9.Flange ends,and butt weld ends
10.Available with gear box
API Series main connection size
Full port Class 150 ：
NPS | in | 1/2 | 3/4 | 1 | 1-1/41-1/22 | 2-1/2 | 3 | 4 | 6 | 8 | 10 |
DN | mm | 15 | 20 | 25 | 32/40/50 | 65 | 80 | 100 | 150 | 200 | 25 |
L(RF) | mm | 108 | 117 | 127 | 140/165/178 | 191 | 203 | 229 | 394 | 457 | 533 |
L(BW) | mm | - | - | 165 | 178/191/216 | 241 | 283 | 305 | 457 | 521 | 559 |
L(RTJ)
| mm | 119 | 130 | 140 | 152/178/191 | 203 | 216 | 241 | 406 | 470 | 546 |
H | mm6 | 70 | 93 | 93 | 102/118/145 | 148 | 152 | 203 | 338 | 456 | 510 |
W | mm | 130 | 130 | 160 | 180/200/300 | 300 | 350 | 400 | 750 | 300 | 400 |
WT(RF) | kg | 3 | 4 | 5.5 | 7.6/8.5/12 | 18 | 24 | 40 | 82 | 185 | 300 |
Full port class 300 ：
NPS | in | 1/2 | 3/4 | 1 | 1-1/41-1/22 | 2-1/2 | 3 | 4 | 6 | 8 | 10 |
DN | mm | 15 | 20 | 25 | 32/40/50 | 65 | 80 | 100 | 150 | 200 | 25 |
L(RF) | mm | 108 | 117 | 127 | 140/165/178 | 191 | 203 | 229 | 394 | 457 | 533 |
L(BW) | mm | - | - | 165 | 178/191/216 | 241 | 283 | 305 | 457 | 521 | 559 |
L(RTJ)
| mm | 119 | 130 | 140 | 152/178/191 | 203 | 216 | 241 | 406 | 470 | 546 |
H | mm6 | 70 | 93 | 93 | 102/118/145 | 148 | 152 | 203 | 338 | 456 | 510 |
W | mm | 130 | 130 | 160 | 180/200/300 | 300 | 350 | 400 | 750 | 300 | 400 |
WT(RF) | kg | 3 | 4 | 5.5 | 7.6/8.5/12 | 18 | 24 | 40 | 82 | 185 | 300 |
Material list
ITEM | PART NAME | MATERIAL |
1 | ADAPTER | A105 |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | BODY | A105 |
5 | O-RING | VITON |
6 | TRUNNION | A105+ENP |
7 | GASKET | 304SS/316SS+GRAPHITE |
8 | SCREW | A193 B7/BM |
9 | BOLT | ASTM A193 B7/BM |
10 | NUT | ASTM A194 2H/2HM |
11 | O-RING | VITON |
12 | SPRING | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | BEARING | AISI 1045+RPTFE聽 |
15 | O-RING | VITON |
16 | GASKET | 304SS/316SS+GRAPHITE |
17 | STEM | AISI 1040+ENP/AISI 1045+ENP |
18 | O-RING | VITON |
19 | SCREW | CARBON STEEL |
20 | PACKING | GRAPHITE/PTFE |
21 | CONNECTING PLATE | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | NUT | CARBON STEEL |
25 | GREASE FITTING(SEAT) | CARBON STEEL |
26 | GREASE FITTING(STEM) | CARBON STEEL |
27 | PACKING BOX | A105+ENP |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | THRUST WASHER | PTFE |
31 | DRAIN VALVE | CARBON STEEL |
32 | PLUG | CARBON STEEL |
33 | SUPPORT | CARBON STEEL |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
