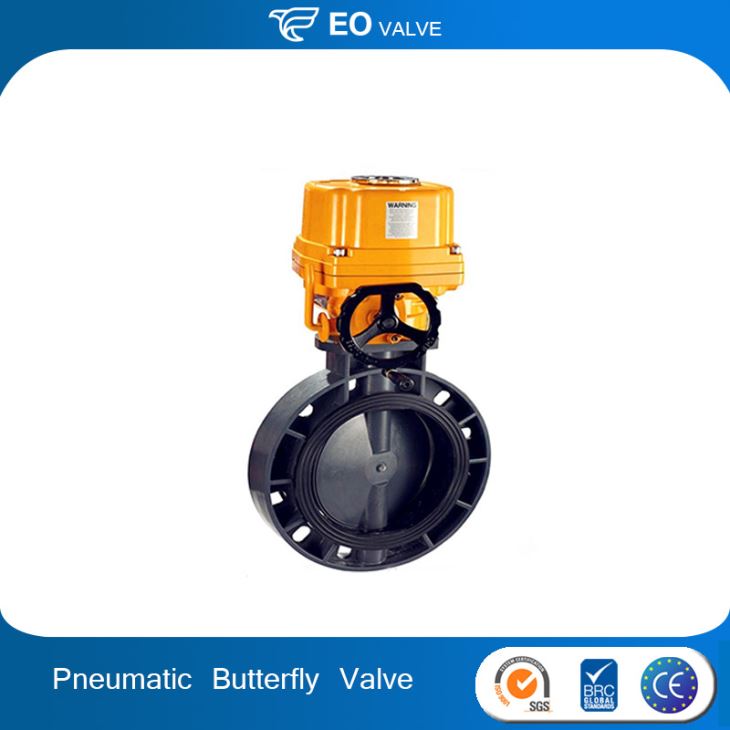

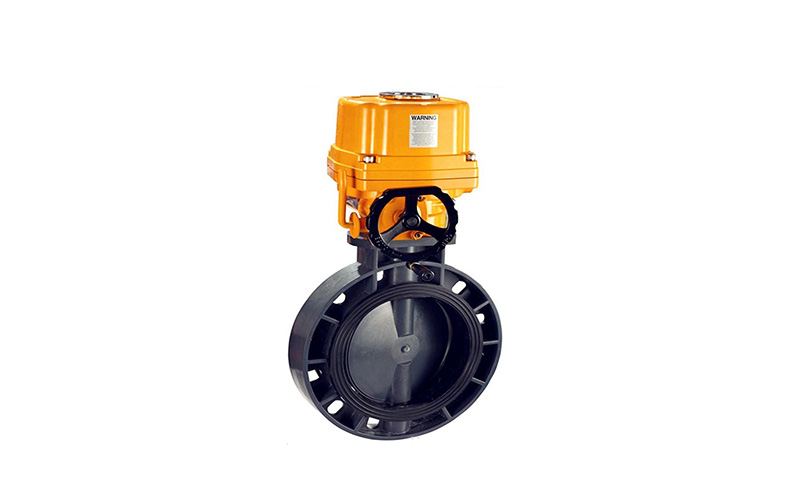

Pneumatic PVC Butterfly Valve

Pneumatic PVC Butterfly Valve

Pneumatic PVC Butterfly Valve;Disc:PVC/UPVC/CPVC/PPH/PP/PE,Seat:EPDM/BUNA/NBR/NR/PTFE/HYP,Body:PVC/UPVC/CPVC/PPH/PP/PE,Suitable Medium: acid, water,gas,oil,etc.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:Low Pressure
Power:Manual
Material:Plastic
Temperature of Media:Low Temperature
Media:Water
Port Size:DN40-DN2400
Place of Origin:China (Mainland)
Model Number:D71X
Brand Name:EO
Application:General
Product name:Pneumatic PVC Butterfly Valve
Disc:PVC/UPVC/CPVC/PPH/PP/PE
Seat:EPDM/BUNA/NBR/NR/PTFE/HYPALON/VITON/NEOPRENE
Color:Optional
Certificates:ISO9001/CE
Suitable Medium:acid, water,gas,oil,etc
Connection:wafer
PN:1.0~1.6MPa
Body:PVC/UPVC/CPVC/PPH/PP/PE
Working Temperature:0~60℃


pneumatic pvc butterfly valve

butterfly valve

pvc butterfly valve

pneumatic pvc butterfly valve



Pneumatic PVC Butterfly Valve Dimensions  :



1. Connection Form: Flange type, Wafer type

2. Design Standard: API 609, BS EN 593, GB T12238, MSS SP-67

3. Face to Face Standard: API 609, BS 5155, ISO 5752

4. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K

5. End Flange: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 5155

6. Top Flange: ISO5211

7. Test: API 598, ISO9001, ASTM, ANSI, DIN, BS, JIS

8. Coating: Epoxy powder coating, or coating as customers' requirement

9. Certificate: ISO9001:2000, ISO2531, EN545, QS-9000 SGS, EN598, BS4772, DIN3352


Material for Pneumatic PVC Butterfly Valve:

Materials List
Part NameMaterials
Body

PVC: ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT200

UPVC: ASTM A536 65-45-12, DIN 1693 GGG40,

                          EN1563 EN-GJS-400-15, GB12227 QT450-10

CPVC: ASTM A351 CF8, CF8M, CF3, CF3M

PP: ASTM A216 WCB

Stem

Zinc Plated Steel

Stainless Steel: ASTM A276 Type 316, Type 410, Type 420, ASTM A582 Type 416

Taper PinPVC: ASTM A276 Type 304, Type 316, EN 1.4501
SeatNBR, EPDM, Neoprene, PTFE, Viton
Disc

PVC: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10

UPVC: ASTM A351 CF8, CF8M, CF3, CF3M; EN 1.4408, 1.4469, 1.4501

CPVC: ASTM B148 C95400

O-RingNBR, EPDM, Neoprene, Viton
BushingPTFE, Nylon, Lubricated Bronze
BonnetPVC ASTM-A-536, GGG500-7


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
