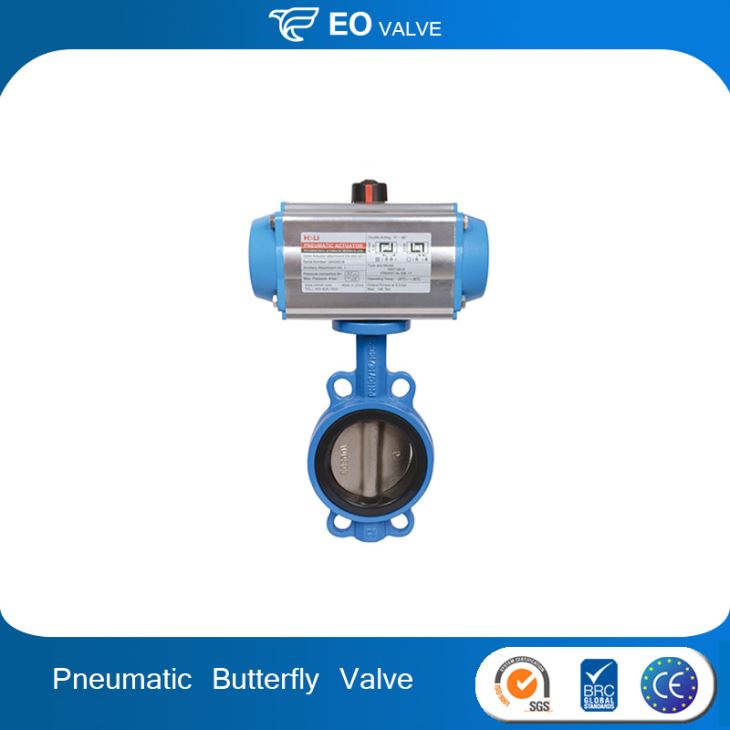

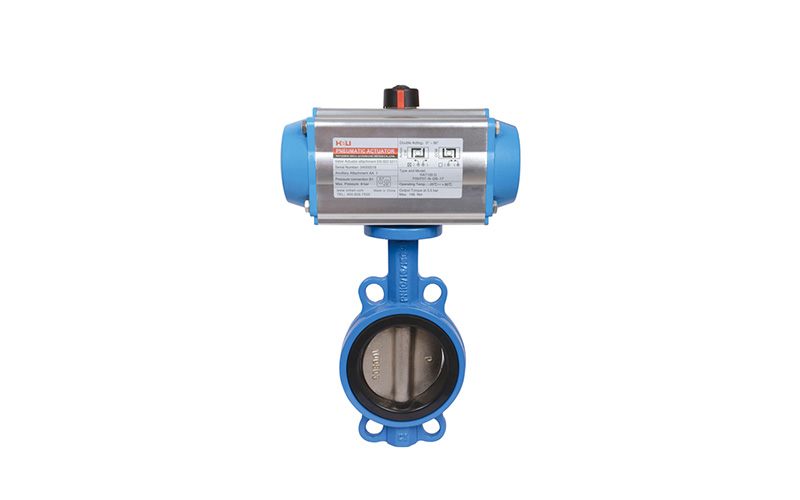

Wafer Pneumatic Actuator Butterfly Valve
Wafer Pneumatic Actuator Butterfly Valve;Standard:API, EN, ANSI, BS, DIN, JIS,Body material:Cast iron/Ductile iron/Cabon stee.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | D71X |
| Brand Name: | EO |
| Application: | General, Butterfly valve |
| Suitable media: | Water, oil, gas |
| Standard: | API, EN, ANSI, BS, DIN, JIS |
| Dimension: | DN40-DN1200 |
| Certification: | ISO9001:2008 |
| Working Pressure: | pn16 |
| OEM: | Avaliable |
| Color: | Blue or as customer's requirement |
| Body material: | Cast iron/Ductile iron/Cabon stee |

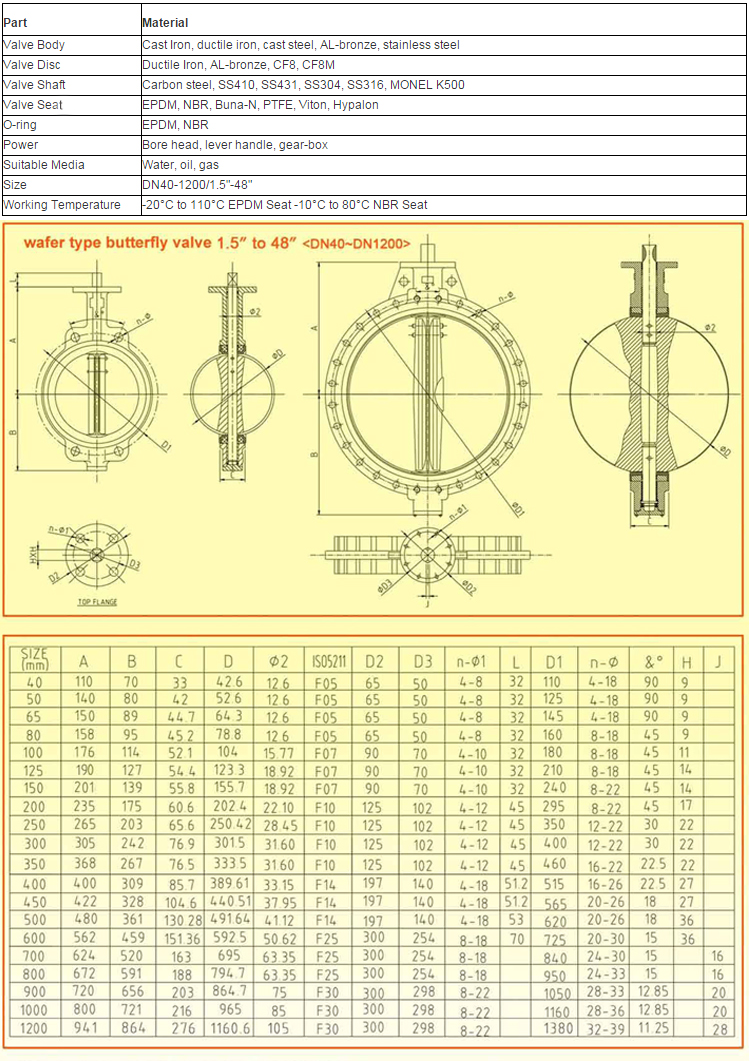

| ECHNICAL DATA: | |
| Nominal diameter: | DN40-1200/1.5"-48" |
| Face to face: | API609, DIN3202 K1, ISO5752, BS5155, EN558 |
| Flange accommodation: | AS 2129 "D","E" BS 10:D","E" JIS 5K/10K/16K ASME B16.1 125LB ASME B16.5 150LB BS 4504 PN6/PN10/PN16 DIN 2501 PN6/PN10/PN16 ISO 7005 PN6/PN10/PN16 |
| Design standard: | API609, BS5155, EN593, MSS SP-67 |
| Top flange: | ISO 5211(according to the customer's need) |
| Temperature range: | -20℃to+200℃(depending on pressure,medium and materal) |
| Test inspection: | APL 598EN 12266-1 |
| Suitable medium: | freshwater,wastewater,sewage,seawater,air,vapor,food,oils, medicine alkailis,salt,etc. |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
