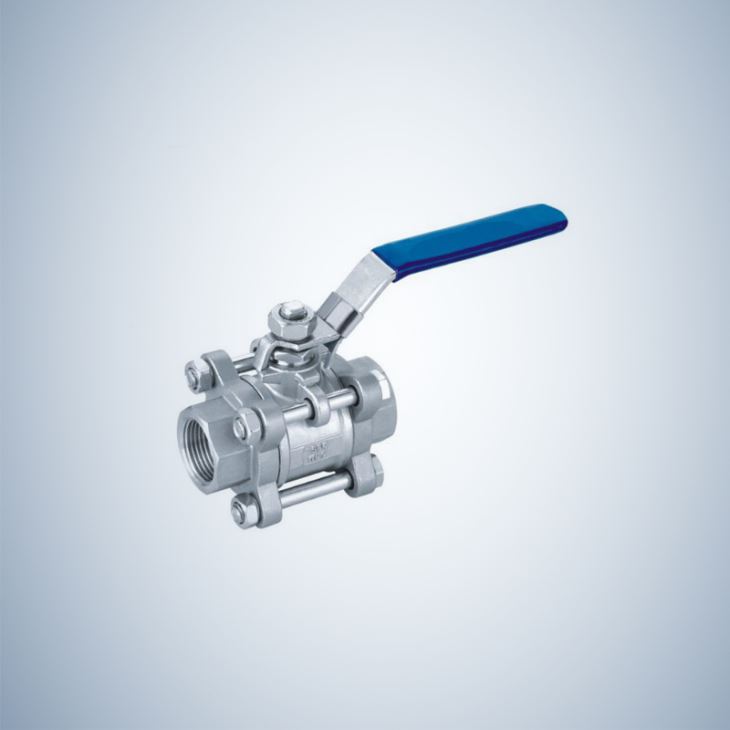

Threaded End 3 Piece Bolted Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China threaded end 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. THREADED END THREE PIECE BOLTED BALL VALVE Three piece bolted ball......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China threaded end 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. THREADED END THREE PIECE BOLTED BALL VALVE Three piece bolted ball...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China threaded end 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
THREADED END THREE PIECE BOLTED BALL VALVE
Product Specifications :
Three piece bolted ball valve specification
Nominal pressure | PN | 1.6, 2.5, 4.0, 6.4 | MPA | ||
Strength testing pressure | PT | 2.4, 3.8, 6.0, 9.6 | |||
Gas sealing testing pressure(low pressure) | 0.6 | ||||
Sealing testing pressure(high pressure) | 1.8, 2.8, 4.4, 7.1 | ||||
Applicable medium | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R | ||
Water, Oil, Gas | acid | Acetic acid | |||
| Applicable temperature | -40~180°C | ||||
Main external dimensions:
Size | 1/4" | 3/8" | 1/2' | 3/4" | 1" | 1" | 1" | 2" |
D | 5.0 | 7.0 | 9.2 | 12.5 | 15.0 | 20.0 | 24.5 | 32 |
L | 40 | 45 | 58 | 60 | 72 | 78 | 83 | 10 |
H | 35 | 37 | 43.5 | 47 | 50 | 57 | 69 | 74.5 |
E | 64 | 70 | 90 | 90 | 103 | 103 | 127 | 127 |
Weight(kg) | 55 | 95 | 165 | 250 | 405 | 625 | 850 | 1400 |
Standard
Design A cc: ASME B16.25/GB 12224
Thread A cc: ANSI B1.20.1
BS 21/2799
DIN 259/2999
ISO 228
Inspection&Testing A cc: API598
Features:
1. Full Port
2. API607 4th Edition Fire-safe Design Available (W306A)
3. Anti-static Configuration
4. Blow-out Proof Stem
5. Live Loaded Stem Seal
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
