Stainless Steel Triple Offset Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China stainless steel triple offset butterfly valve, cf8m stainless butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL HARD SEALING......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China stainless steel triple offset butterfly valve, cf8m stainless butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL HARD SEALING...
Products Description :
Shenyang EO Valve Co.,Ltd is leading China stainless steel triple offset butterfly valve, cf8m stainless butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

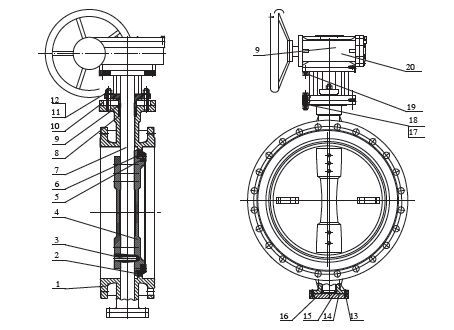

MATERIAL LIST
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM RING | SS+GRAPHITE/PTFE |
3 | PIN | A276 410 |
4 | DISC | A216 WCB |
5 | SCREW | CARBON STEEL |
6 | SEAT GLAND | CARBON STEEL |
7 | STEM | A182 F6A |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
APPLICATION :
1. Water Treatment Plant
2. Breweries
3. Drilling Rigs
4. Heating & Air Conditioning
5. Paper Industry
6. Chemical Industry
7. Gas Plant
8. Pneumatic Conveyors
9. Sugar Industry
10. Waste Effluent Treatment Plant
STAINLESS STEEL HARD SEALING TRIPLE OFFSET BUTTERFLY VALVE
Product Specifications :
MATERIAL OPTION :
Carbon steel | A216 Gr. WCB , WCC , WCA , etc |
Low temperature steel | A352 Gr. LCB , LCC , LC1 , etc |
Cr-Mo steel | A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
Stainless Steel | A351 Gr. CF8 , CF3 , CF3M , CF8C , etc |
Alloy steel | CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
Super duplex | A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
Aluminum bronze | B148 C95500 , C95600 , C95800 , etc |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
