Products Details :

Shenyang EO Valve Co.,Ltd is a leading China stainless steel 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL SMALL MINI ONE PIECE THREADED BALL VALVE Small...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China stainless steel 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

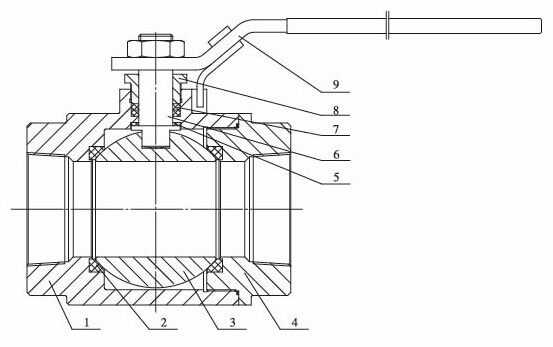

STAINLESS STEEL SMALL MINI ONE PIECE THREADED BALL VALVE


PART NAME

MATERIAL


1

BODY

A216 WCB

2

SEAT

PTFE/RPTFE

3

BALL

A105+ENP

4

BONNET

A216 WCB

5

THRUST WASHER

RPTFE

6

STEM

A276 410

7

PACKING

GRAPHITE/PTFE

8

GLAND FLANGE

A216 WCB

9

LEVER

STAIN LESS



Product Specifications :

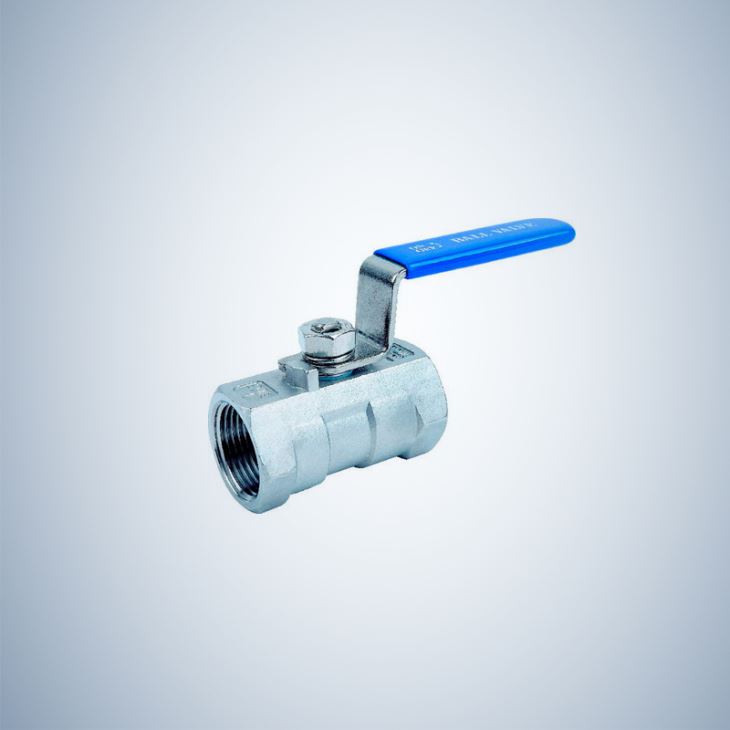

Small mini one piece threaded ball valve
Working Pressure: 1.6-6.4MPa
Temperature: -20~232C~350C
Applicable Medium: Water, Oil, Gas

1PC ball valve Main Material
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
7. ISO-5211 Mounting Pad for Actuator Available



Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-604Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Available Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flange
8). Port: Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (Option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Gas, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598


Design features:

1. REDUCED PORT DESIGN

2. 1 PIECE THREADED BODY

3. FLOATING BALL TYPE

4. BLOW-OUT PROOF STEM

5. ANTI-STATIC DEVICE

6. WITH LOCKING DEVICE


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
