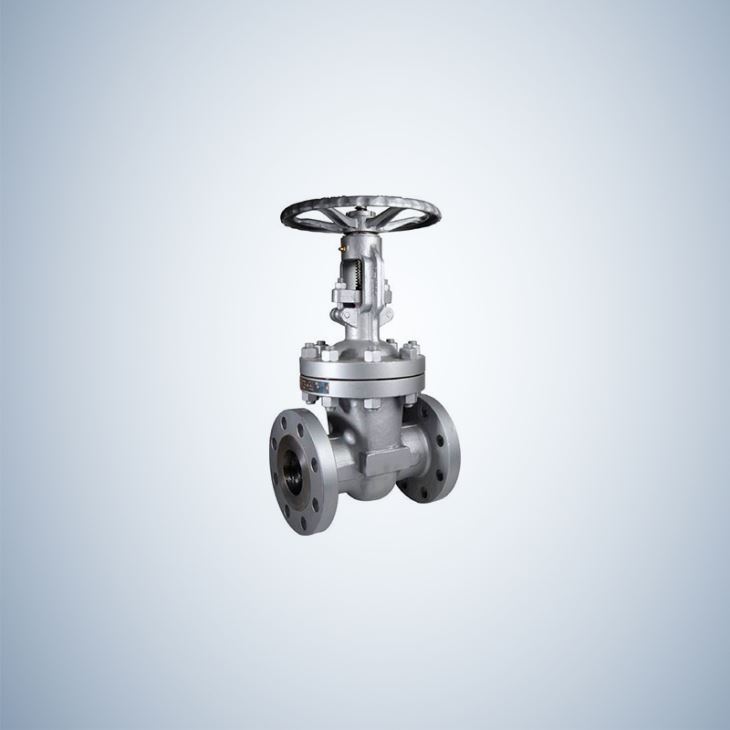

API 600 Cast Steel Flange Ends Gate Valve
Product Standard:
1. DESIGN AND MANUFACTURE: | API600/ASME B16.34/BS1414 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10 |
3. FLANGE ENDS DIMENSIONS: | NPS1/2inch~24inch: ASME B16.5 |
NPS26inch~36inch: ASME B16.47 | |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
6. NORMAL PRESSURE: | CLASS 150~1500 |
7. NORMAL DIAMETER: | NPS 2″~36″ |
Design Features:
Bolted bonnet
Outside screw and yoke(OS&Y)
Rising stem and non-rising handwheel
Flexible wedge, fully guided
Metal-to-metal seat
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Flange end: Raised face or ring type joint
Butt weld end and Socket weld end optional
Bill of Material:
1 | PARTNAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A216 WCB | A352 LCC | A351 CF8M |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE /304SS/316SS METAL RING | ||
6 | BONNET | A216 WCB | A352 LCC | A351 CF8M |
7 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8M |
8 | NUT | A194 2H/2HM | A194 7/7M | A194 8M |
9 | BACKSEAT BUSHING | A276 410 | A276 304 | A276 316 |
10 | PACKING | GRAPHITE/PTFE | ||
11* | LANTERN RING | A276 410 | A276 304 | A276 316 |
12 | GLAND FLANGE | A216 WCB | ASTM A352 LCC | A351 CF8 |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
15 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
16 | STEM NUT | A439 D2/Cu-ALLOY | ||
17 | YOKE | A216 WCB | A352 LCC | A351 CF8 |
18 | HANDWHEEL | STEEL/DUCTILE IRON | ||
| SEALING FACE OVERLAY | API TRIMS AVAILABLE | ||
Dimensions and weight:
Class 150
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 750 | 900 |
NPS | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 30 | 36 |
L(RF) | 178 | 191 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 407 | 432 | 457 | 508 | 610 | 711 |
L1(BW) | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 | 915 | 1016 |
L2(RTJ) | 191 | 203 | 216 | 241 | 267 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 | 622 | 724 |
H(OPEN) | 400 | 490 | 508 | 585 | 740 | 773 | 995 | 1160 | 1375 | 1569 | 1765 | 1978 | 2219 | 2611 | 3197 | 3737 |
W | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 600 | 600 | 680 | 750 | 915 | 915 |
RF(Kgs) | 18 | 28 | 30 | 50 | 70 | 85 | 128 | 220 | 310 | 450 | 550 | 700 | 910 | 1130 | 2780 | 3700 |
BW(Kgs) | 15 | 22 | 26 | 40 | 68 | 77 | 118 | 200 | 290 | 435 | 510 | 650 | 880 | 1100 | 2650 | 3520 |
Class 300
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
NPS | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
L2(RTJ) | 232 | 257 | 298 | 321 | 397 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 |
H(OPEN) | 470 | 525 | 533 | 633 | 800 | 805 | 1024 | 1232 | 1460 | 1645 | 1841 | 1988 | 2208 | 2603 |
W | 200 | 200 | 250 | 250 | 35 | 350 | 400 | 450 | 500 | 600 | 600 | 680 | 750 | 915 |
RF (Kgs) | 24 | 44 | 48 | 73 | 124 | 144 | 226 | 350 | 580 | 715 | 1050 | 1235 | 1655 | 2320 |
BW (Kgs) | 20 | 35 | 37 | 54 | 100 | 110 | 174 | 285 | 495 | 615 | 940 | 1090 | 1500 | 2100 |
Class 600
DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 660 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
L2(RTJ) | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 |
H(OPEN) | 474 | 520 | 547 | 703 | 913 | 1077 | 1276 | 1490 | 1623 | 1816 | 2260 | 2260 | 2900 |
W | 250 | 250 | 250 | 300 | 450 | 500 | 600 | 680 | 750 | 850 | 960 | 960 | 1100 |
RF (Kgs) | 35 | 55 | 72 | 126 | 265 | 444 | 700 | 940 | 1310 | 1610 | 2070 | 2405 | 3810 |
BW (Kgs) | 32 | 47 | 64 | 103 | 218 | 374 | 570 | 830 | 1012 | 1217 | 1760 | 2000 | 3200 |
Class 900
DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
L2(RTJ) | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 |
H(OPEN) | 620 | 705 | 695 | 825 | 1065 | 1320 | 1540 | 1840 | 2135 | 2380 | 2580 | 2780 | 3130 |
W | 300 | 350 | 350 | 400 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1100 | 1100 |
RF (Kgs) | 95 | 128 | 125 | 192 | 378 | 635 | 900 | 1550 | 2170 | 3070 | 3930 | 5120 | 7800 |
BW (Kgs) | 80 | 110 | 105 | 165 | 330 | 520 | 730 | 1300 | 1800 | 2650 | 3400 | 4300 | 6500 |
Product Specifications :
Product Features:
1). Size: 1/2"-36".
2). Material:CF8, CF8M, CF3, CF3M. 304 ,304L,316,316L. WCB, WCC etc are available
3). Class: 150LB, 300LB, 600LB, 900LB,1500LB, 2500LB
4). Suitable medium: water, oil, air and some corrosive liquid
5). Temperature range: -20°C - 425°C
6). Operate: handwheel, pneumatic, actuator
7). Design and manufacture: API 6D & API 600
8). Inspection and Test: API 6D & API 598
9). Flange end dimension: ASME B16.5 & MSS-SP-44
10). Butt-welding end dimension: ASME B16.25
11). Face to face: API 6D & ASME B16.10
12).Certificate: API, CE, TS, ISO, AZ,Gost
Bill of Material:
1 | PARTNAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A216 WCB | A352 LCC | A351 CF8M |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE /304SS/316SS METAL RING | ||
6 | BONNET | A216 WCB | A352 LCC | A351 CF8M |
7 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8M |
8 | NUT | A194 2H/2HM | A194 7/7M | A194 8M |
9 | BACKSEAT BUSHING | A276 410 | A276 304 | A276 316 |
10 | PACKING | GRAPHITE/PTFE | ||
11* | LANTERN RING | A276 410 | A276 304 | A276 316 |
12 | GLAND FLANGE | A216 WCB | ASTM A352 LCC | A351 CF8 |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
15 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
16 | STEM NUT | A439 D2/Cu-ALLOY | ||
17 | YOKE | A216 WCB | A352 LCC | A351 CF8 |
18 | HANDWHEEL | STEEL/DUCTILE IRON | ||
SEALING FACE OVERLAY | API TRIMS AVAILABLE | |||
