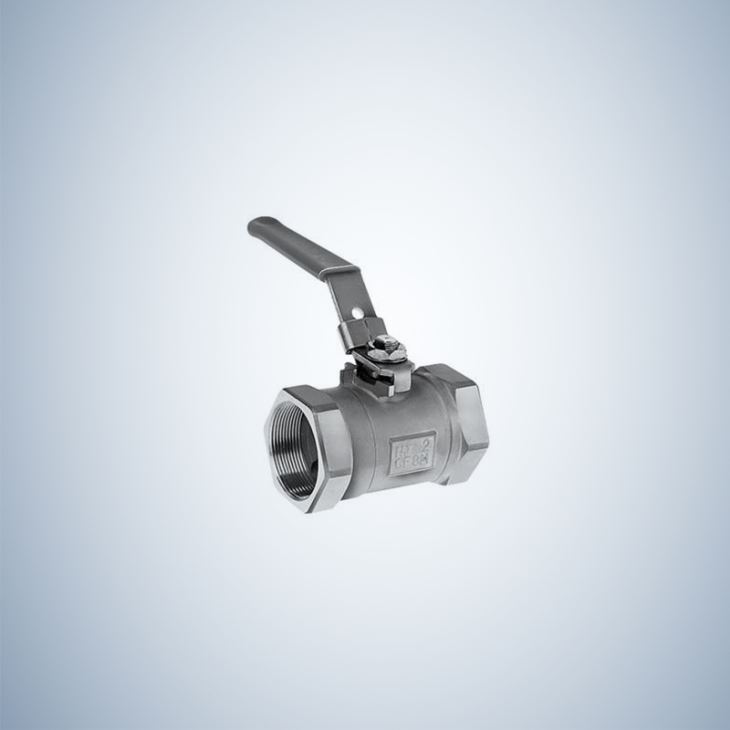

Cf8M Mini 1 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cf8m threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CF8M ONE PIECE THREADED BALL VALVE The Advantage of Ball Valve 1,Fluid resistance......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cf8m threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CF8M ONE PIECE THREADED BALL VALVE The Advantage of Ball Valve 1,Fluid resistance...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cf8m threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
CF8M ONE PIECE THREADED BALL VALVE
Product Specifications :
The Advantage of Ball Valve
1,Fluid resistance small
2.Structure simple, small size, light weight.
3.Closely reliable, sealed surface material widely used plastic
4.Easy to operate, the closing rapidly, from open all around, as long as there 90E, facilitate remotecontrol.
5.Maintenance convenience ,Ball valve structure simple.
6.Ball valve whole or in the open all closed, spheroid and the sealed surface with medium ,valve seat separation medium through,
will not cause the valves sealed surface erosion.
7.Widely range in application
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | BONNET | A216 WCB |
5 | THRUST WASHER | RPTFE |
6 | STEM | A276 410 |
7 | PACKING | GRAPHITE/PTFE |
8 | GLAND FLANGE | A216 WCB |
9 | LEVER | STAIN LESS |
1PC Ball Valve FEATURES:
W.P:2000 WOG(PN150) | Reduce Port : 1/4" ~ 2" |
Blow-out Proof Stem | ASME B16.34 Wall thickness |
Forged body NACE MR0175 | PED97/23/CE(CE0036) Approved |
Inspection Testing:API598,EN12266 | Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1 |
1PC ball valve DIMENSIONS (mm)
SIZE \ ITEM | d | H | E | S | L | CV FACTOR |
1/4" | 5 | 29 | 61 | 175 | 46.5 | 1 |
3/8" | 7 | 35 | 80 | 21 | 51 | 2.5 |
1/2" | 9.2 | 66 | 104 | 28.5 | 56 | 5.5 |
3/4" | 12.5 | 69 | 107 | 34.5 | 65 | 10 |
1" | 15 | 75 | 118 | 40.5 | 76 | 15.5 |
1.1/4" | 20 | 78 | 146 | 53.5 | 92 | 20 |
1.1/2" | 25 | 85 | 148 | 57.5 | 98 | 37 |
2" | 32 | 98 | 150 | 73 | 114 | 60 |
Features:
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
