2 Inch Forged Steel Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 2 inch forged steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 2 inch...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 2 inch forged steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 2 inch forged steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

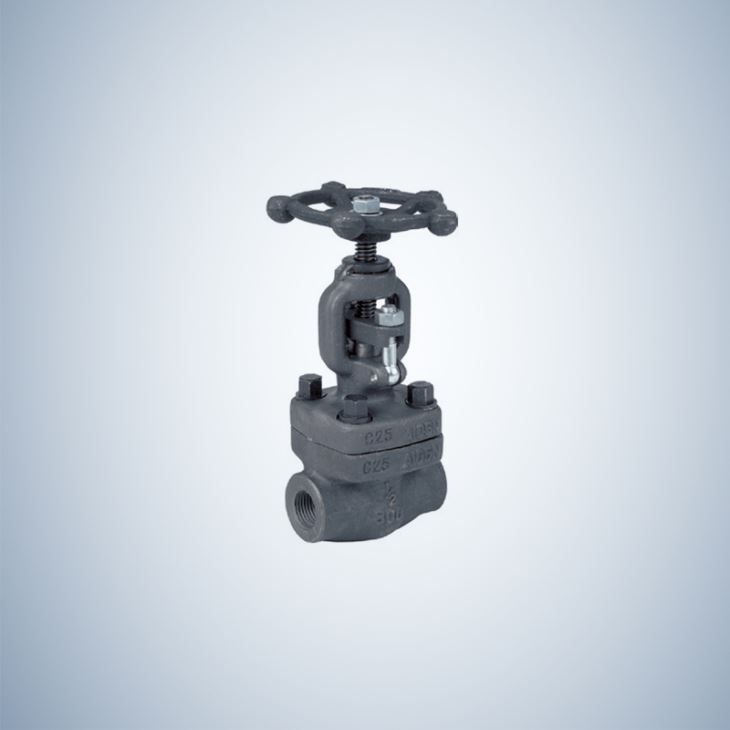

2 Inch Forged Steel Bolted Bonnet Gate Valve.
Product Specifications :
STANDARDS:
DESIGN AND MANUFACTURE | API 602(BS 5352) |
DESIGN AND MANUFACTURE | ASME B16.10 OR MANUFACTURER'S SPECIFICATION |
FLANGE ENDS DIMENSIONS | ASME B16.5 |
BW ENDS DIMENSIONS | ASME B16.25 |
SOCKET WELD ENDS DIMENSIONS | ASME B16.11 |
THREADED ENDS DIMENSIONS | ASME B1.20.1 |
PRESSURE-TEMPERATURE RATINGS | ASME B16.34 |
NORMAL PRESSURE | CLASS 150-1500 |
NORMAL DLAMETER | NPS1/2"~2" |
Design Feature:
1. BOLTED BONNET OR WELDED BONNET
2. WEDGE TYPE: SOLID WEDGE
3. BACK SEAT DESIGN
4. STEM IS INTEGRALLY FORGED AND CONNECTED WITH WEDGE BY T-JOINT
5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS
6. OUTSIDE SCREW AND YOKE (OS&Y)
MATERIAL LIST:
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A105 | A350 LF2 | A182 F316 |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A105 | A350 LF2 | A182 F316 |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING | ||
6 | BONNET | A105 | A350 LF2 | A182 F316 |
7 | BOLT | A193 B7/B7M | A320 L7/ L7M | A193 B8M |
8 | STEM PACKING | GRAPHITE / PTFE | ||
9 | GLAND | 276 410 | 276 410 | A276 316 |
10 | GLAND FLANGE | A105 | A350 LF2 | A182 F316 |
11 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
12 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
13 | STEM NUT | A276 420 /Cu-ALLOY | ||
14* | HANDWHEEL | STEEL/ DUCTILE IRON | ||
ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE
NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST

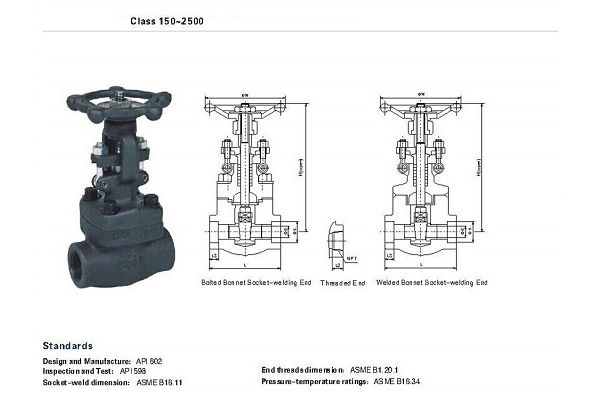

Technical Drawing:
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
