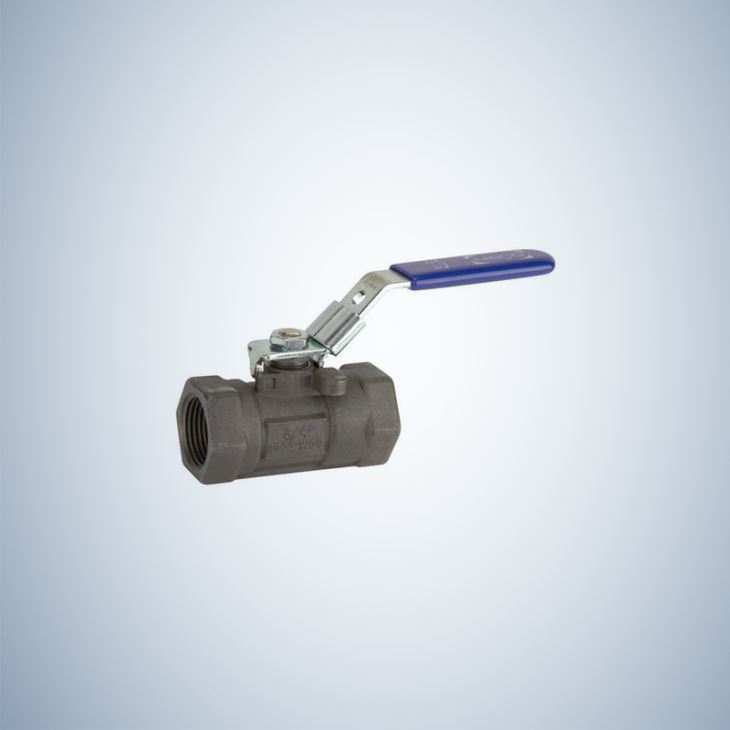

Cast Iron 1 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast iron 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CAST IRON ONE PIECE THREADED BALL VALVE Materials of main parts:......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cast iron 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CAST IRON ONE PIECE THREADED BALL VALVE Materials of main parts:...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cast iron 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
CAST IRON ONE PIECE THREADED BALL VALVE
Product Specifications :
Materials of main parts:
| Name of parts | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R |
Body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12MoTi |
CF8 | CF8M | ||
Ball | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
304 | 304 | 316 | |
Stem | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
304 | 304 | 316 | |
Seal ring | PTFE | ||
Packing | PTFE | ||
Specifications:
| Nominal pressure | PN | 1.6, 2.5, 4.0, 6.4 | MPA | ||
Strength testing pressure | PT | 2.4, 3.8, 6.0, 9.6 | |||
Gas sealing testing pressure(low pressure) | 0.6 | ||||
Sealing testing pressure(high pressure) | 1.8, 2.8, 4.4, 7.1 | ||||
Applicable medium | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R | ||
Water, Oil, Gas | citric acid | Acetic acid | |||
Applicable temperature | -40~180°C | ||||
Main external dimensions:
DN | G | d | L | H | W |
6 | 1/4" | 5 | 40 | 28 | 70 |
10 | 3/8" | 7 | 45 | 30 | 70 |
15 | 1/2" | 9 | 56 | 34 | 90 |
20 | 3/4" | 12 | 60 | 38 | 90 |
25 | 1" | 15 | 70 | 50 | 110 |
32 | 1¼" | 20 | 80 | 56 | 120 |
40 | 1½" | 25 | 85 | 60 | 130 |
50 | 2" | 32 | 100 | 65 | 140 |
65 | 2½" | 38 | 118 | 72 | 180 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
