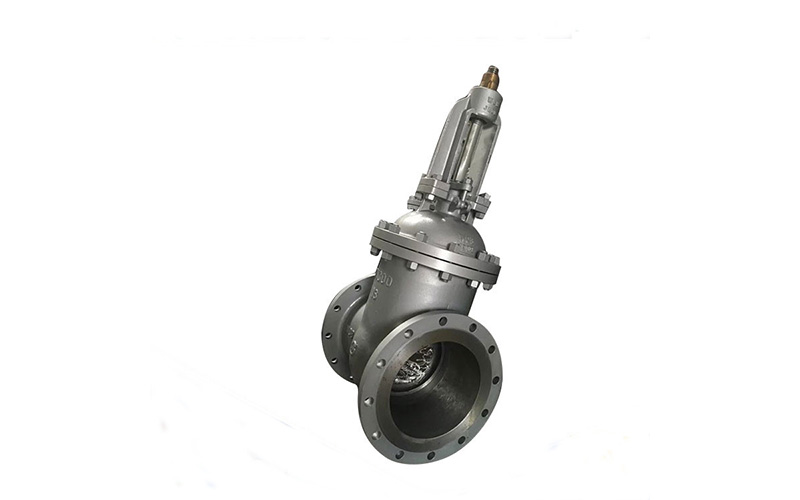

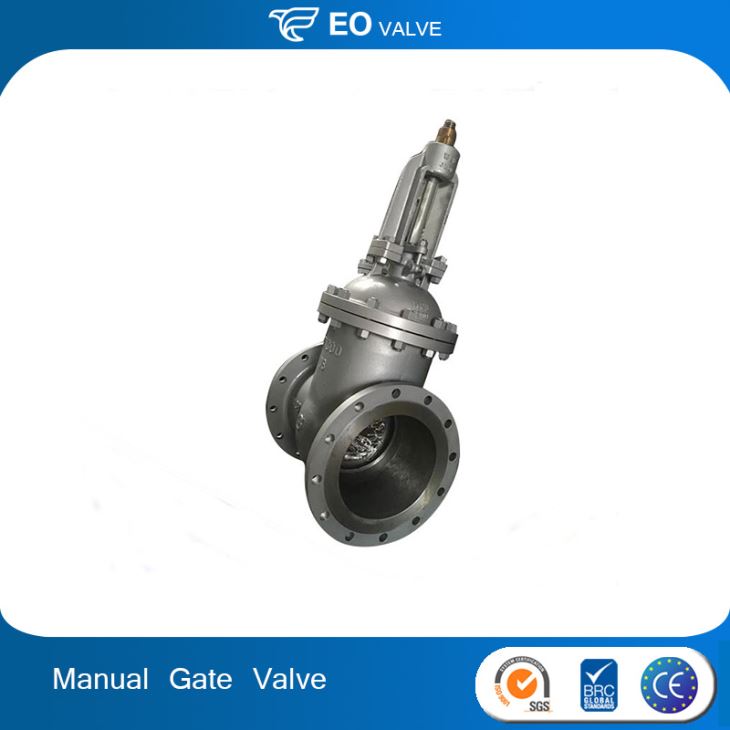

Cast Steel Dn40 Gate Manual Valve
Cast Steel Dn40 Gate Manual Valve;Structure:Gate,Pressure:Medium Pressure,Temperature of Media:Medium Temperature,Application:General.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Gate |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | DN40-DN600 |
| Place of Origin: | China (Mainland) |
| Brand Name: | EO |
| Application: | General |
| Name: | Wheel Operated Cast Iron Geat Valv |
| Part name | ASTM Material | ||
| 18Cr-18Ni | 18Cr-9Ni-2Mo | 17Cr-9M0-2Mo | |
| Body | A351-CF8 | A351-CF8M | A351-CF3M |
| Bonnet | A351-CF8 | A351-CF8M | A351-CF3M |
| ball | A351-CF8 | A351-CF8M | A351-CF3M |
| Stem | A182-F304 | A182-F316 | A182-F316L |
| Bonnet gasket | Graphite+304 | Graphite+316 | Graphite+316L |
| Bonnet stud | A193-B8 | A193-B8M | A193-B8M |
| Bonnet stud nut | A194-8 | A194-8M | A194-8M |
| Packing | Graphite | ||
| Gland | A276-304 | A276-316 | A276-316L |
| Gland flange | A351-CF8 | A351-CF8M | A351-CF8M |
| Eyebolt pin | A276-304 | A276-316 | A276-316 |
| Eyebolt | A193-B8 | A193-B8 | A193-B8 |
| Eyebolt nut | A194-8 | A193-B8 | A193-B8 |
| Crease fitting | Carbon steel ni plated | ||
| Yokesleeve | Aluminum-bronze | ||
| Yokesleeve jam nut | A276-304 | ||
| Handwheel | Malleable iron | ||
| Handwheel nut | Carbon steel | ||
