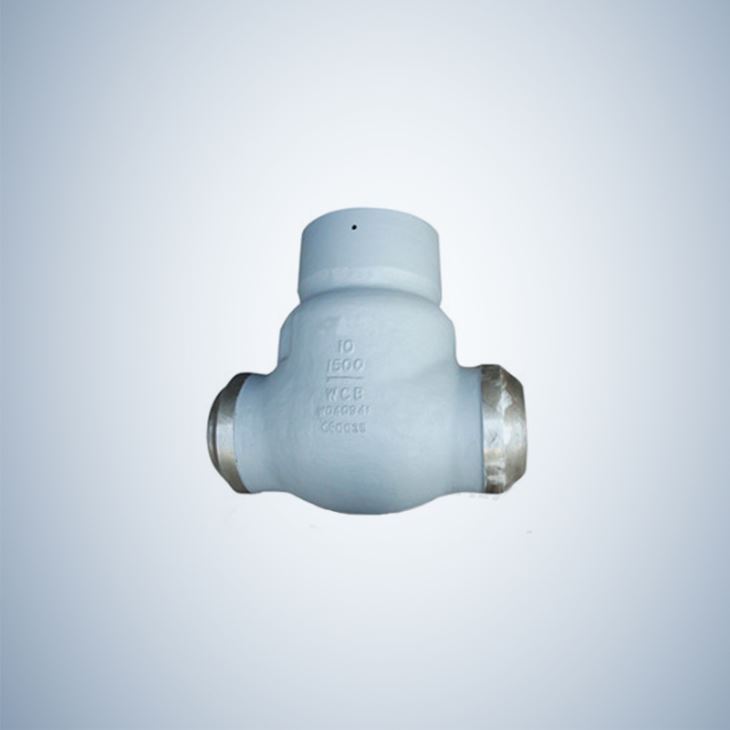

Cast Steel Pressure Sealing Check Valve BW Ends

Cast Steel Pressure Sealing Check Valve BW Ends

Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast steel pressure sealing check valve bw ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China cast steel pressure sealing check valve bw ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China cast steel pressure sealing check valve bw ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Cast Steel Pressure Sealing Swing Check Valve Butt Weld Connection.

Product Specifications :

TANDARDS :

1. DESIGN AND MANUFACTURE:

BS 1868/ASME B16.34/API 6D

2. FACE TO FACE DIMENSIONS:

ASME B16.10

3. FLANGE ENDS DIMENSIONS:

NPS1/2”-24”

 ASME B16.5

NPS 26”-36”

ASME B16.47

4. BW ENDS DIMENSIONS:

ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

6. NORMAL PRESSURE:

CLASS 900~2500

7. NORMAL DIAMETER:

NPS 2″~24″


Design Feature:

1. Pressure Seal  Bonnet(PSB) Design

2. Swing Disc: Disc Is Fastened Securely To Disc Hanger With a Lock Nut And Copter Pin

3. Seat Type: Welder Seat Or Integral Seat

4.Main Material:ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M etc.


Material Option :

Carbon steel

ASTM A216 WCB , WCC , WCA , etc

Low temperature steel

ASTM A352 LCB , LCC , LC1 , etc

Cr-Mo steel

ASTM A217 WC6 , WC9 , C5 , C12 , C12A , etc

Stainless Steel

ASTM A351CF8 , CF8M , CF3 , CF3M , CF8C , etc

Alloy steel

CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc

Super duplex

A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc

Aluminum bronze

B148 C95500 , C95600 , C95800 , etc

Monel

M30C , M35-1 , CZ100 , etc

Inconel

CY40 inconel 600 , etc

Hastelloy

CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc

Incoloy

CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc


Our Advantage :

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
