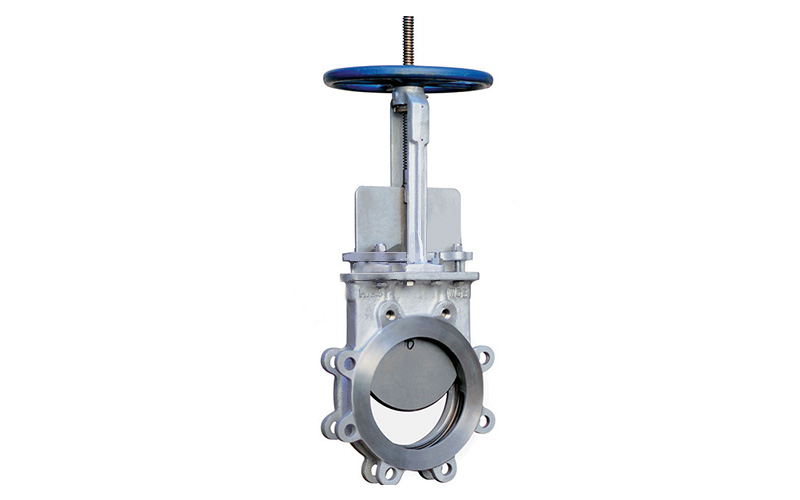

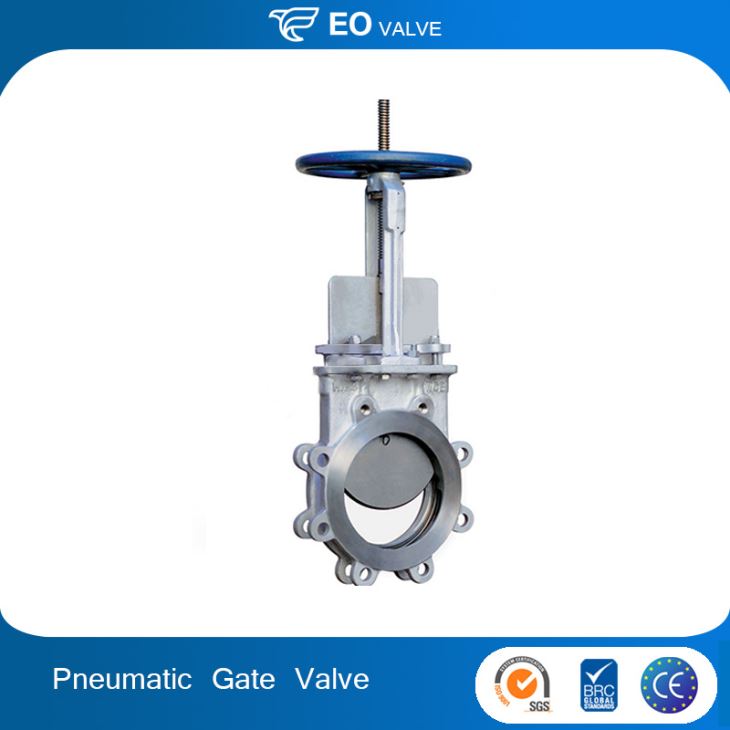

Hydraulic/Pneumatic/Electric Cast Steel Knife Gate Valve
Hydraulic/Pneumatic/Electric Cast Steel Knife Gate Valve;Structure:Gate,Place of Origin:China (Mainland).Brand Name:EO,type:knive gate valve,Standard:API.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Gate |
| Material: | Various, stainless steel |
| Place of Origin: | China (Mainland) |
| Model Number: | knife gate valve |
| Brand Name: | EO |
| Application: | General |
| type: | knive gate valve |
| connection: | Flange /BW /lUG |
| Standard: | API |
| Medium: | Base Oil Water Gas |
| Operated: | handle Operated |
| Name: | H |
Features:
CLASS 150lb~2500lb CAST Steel Flange Gate Valves
OS&Y, Rising stem, Flexible Wedge, Single Wedge, full bore
Bolted Bonnet/Bolted Body, Threaded or Welded seat ring /Insert Seat
Replaceable seat
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Size: 50mm-1050mm
Pressure: 150lb-2500lb
Standards:
Design and Manufacture: ANSIB16.34, API600 API6D, API603,BS1414
Face to face(end to end): ANSIB16.10, API6D
Flanged connection: 2″~24″to ANSIB16.5,
26″~36″to MSS-SP-44 to API605 on Request
Test and inspection: API598,API6D
Butt welded end: ANSIB16.5
