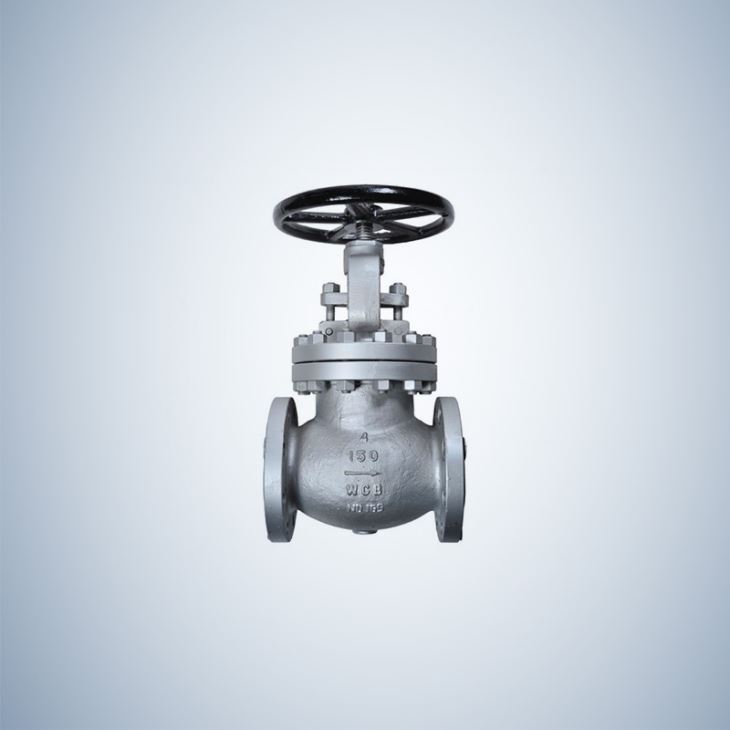

150Lb 4 Inch Cast Steel Bolted Bonnet Globe Valve

150Lb 4 Inch Cast Steel Bolted Bonnet Globe Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 150lb 4inch cast steel bolted bonnet globe valve, 4 inch globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. ASTM WCC / LCC / LCB API Cast Steel......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd  is a leading China 150lb 4inch cast steel bolted bonnet globe valve, 4 inch globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. ASTM WCC / LCC / LCB API Cast Steel...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 150lb 4inch cast steel bolted bonnet globe valve, 4 inch globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


ASTM WCC / LCC / LCB API Cast Steel Flange Type Manual Operated Glove Valve

Product Specifications :

Design Standard:  BS 1873, ASME B16.34, DIN3356

Face to Face: ASME B16.10, EN 558, DIN 3202

End Flange: ASME B16.5, DIN 2501

Butt welding Ends:  ASME B16.25, DIN3239

Inspection and Test: API 598, DIN3230


Products Range:

Size:  2" ~ 24"

Rating: ANSI 150lb ~ 600lb

Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim: Per API 600

Operation: Hand wheel, Gear, Electric, Pneumatic, Hydraulic optional


Design Features:

Straight pattern body design

OS&Y, outside screw and yoke

Tapered, globe, or plug disc

Bolted bonnet, back seal structure

Impact hand wheel for 10" and above

Extended stem design for low temperature

ISO top flange for Bare stem globe valve


Parts Material:

NO.

Part Name

Material



01

Body

ASTM A216WCB

ASTM A351 CF8

ASTM A351 CF8M

02

Seat Ring

ASTM A216+13Cr

ASTM A351 CF8

ASTM A351 CF8M

03

Disc

ASTM A105+13Cr

ASTM A182 F304

ASTM A182 F316

04

Split Ring

C.S

S.S

316S.S

05

Disc Cover

C.S

S.S

316S.S

06

Stem

ASTM A182 F6a

ASTM A182 F304

ASTM A182 F316

07

Gasket

304+Graphite

304+Graphite

316+Graphite

08

Bonnet

ASTM A216WCB

ASTM A351 CF8

ASTM A351 CF8M

09

Stud

ASTM A193 B7

ASTM A193-B8

ASTM A193-B8M

10

Nut

ASTM A194 2H

ASTM A194-8

ASTM A194-8M

11

Backseat

ASTM A216+13Cr

ASTM A351 CF8

ASTM A351 CF8M

12

Packing

Graphite

Graphite

Graphite

13

Bushing

ASTM A216 F6a

S.S

S.S

14

Gland

ASTM A216WCB

ASTM A351 CF8

ASTM A351 CF8M

15

Pin

C.S

S.S

S.S

16

Gland Bolt

ASTM A193 B7

ASTM A193-B8

ASTM A193-B8M

17

Gland Nut

ASTM A194 2H

ASTM A194-8

ASTM A194-8M

18

Stem Nut

ZcuAl10Fe3

ZcuAl10Fe3

ZcuAl10Fe3

19

Screw

C.S

S.S

304S.S

20

Hand wheel

ASTM A395

ASTM A395

ASTM A395

21

H.W. Lock Nut

C.S

S.S

S.S



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
