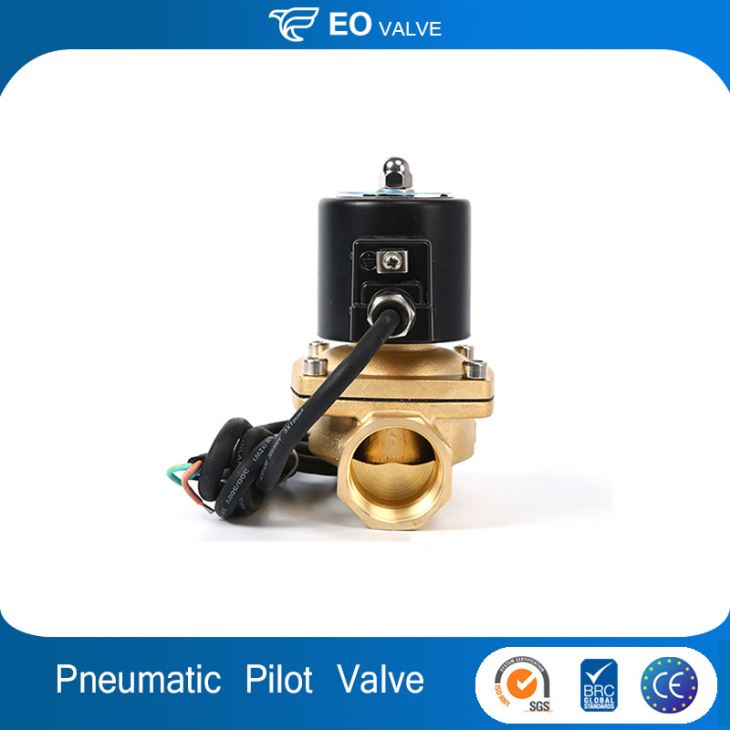

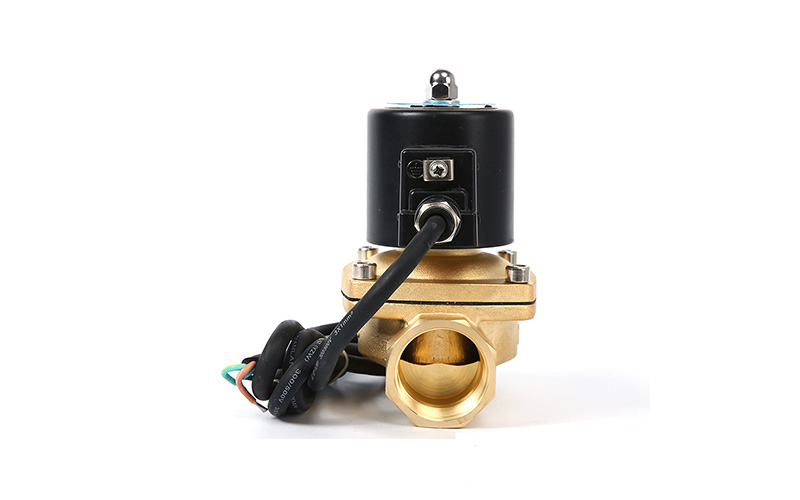

Brass Explosion Protection Pneumatic Control Solenoid Valve
Brass Explosion Protection Pneumatic Control Solenoid Valve;Structure:Control,Pressure:Medium Pressure,Material:Brass,Media:Water,Place of Origin:China (Mainland).

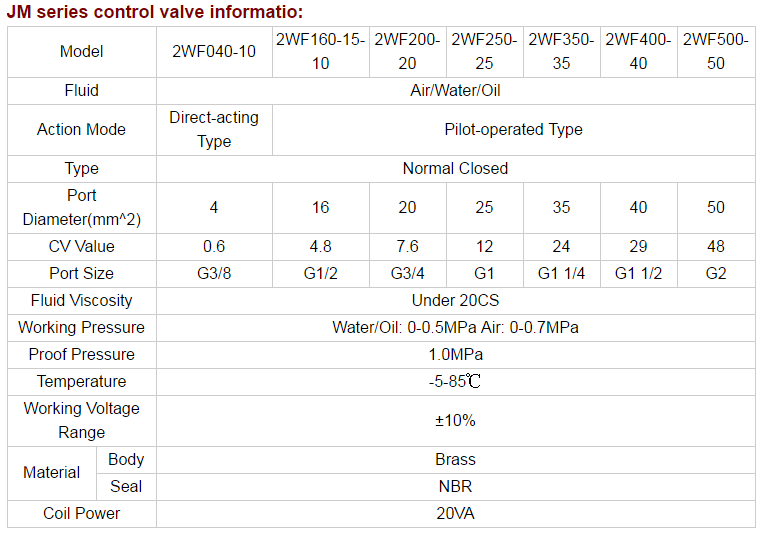

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Brass |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | 1/2 |
| Place of Origin: | China (Mainland) |
| Model Number: | 2WF160-15-10 |
| Brand Name: | EO |
| Certification: | CQC,ROHS |
| Action Mode: | Pilot-operated Type |
| Type: | Normal Closed |
| Port Diameter(mm^2): | 16 |
| CV Value: | 4.8 |
| Fluid Viscosity: | Under 20CS |
| Working Pressure: | Water/Oil: 0-0.5MPa Air: 0-0.7MPa |
| Working Voltage Range: | ±10% |
| Coil Power: | 20VA |
