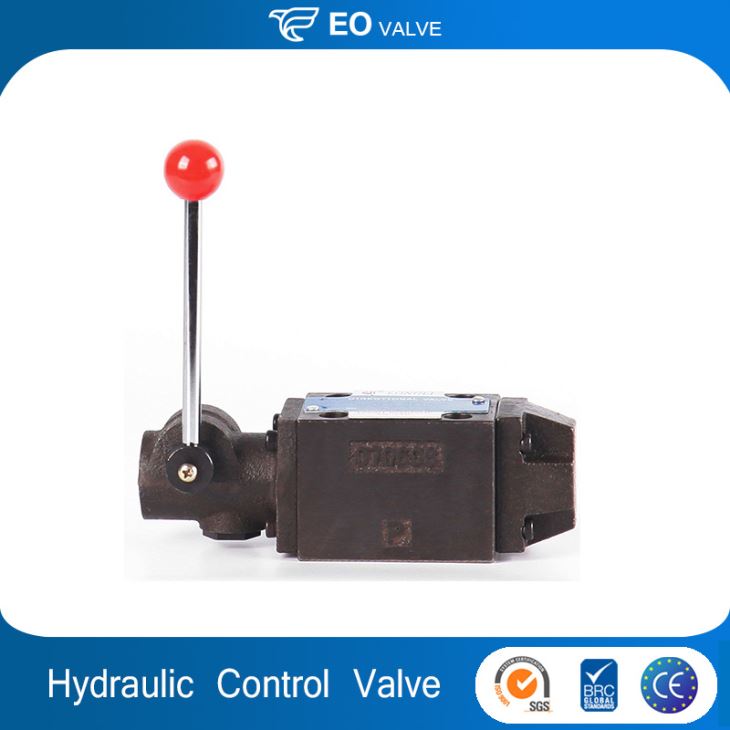

Manual Directional Control Hydraulic Valve Directional Control Valves
Manual Directional Control Hydraulic Valve Directional Control Valves;Material:Casting,Media:Oil,Place of Origin:China (Mainland),Application:General,Certificate:ISO9001,Max.Pressure:up to 35Mpa.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | High Pressure |
| Power: | Hydraulic |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Oil |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | 4WMM6 |
| Brand Name: | EO |
| Application: | General |
| Product name: | Directional control valves |
| Certificate: | ISO9001 |
| Color: | Customer's request |
| Body material: | Cast Steel |
| Max. Flow: | up to 450 L/min |
| Max.Pressure: | up to 35Mpa |
| Fluid: | Mineral oil or Phosphate ester |
| Temperature range: | -30~+80℃ |
| Type: | Rexroth |
| Model: | 4WMM6 |

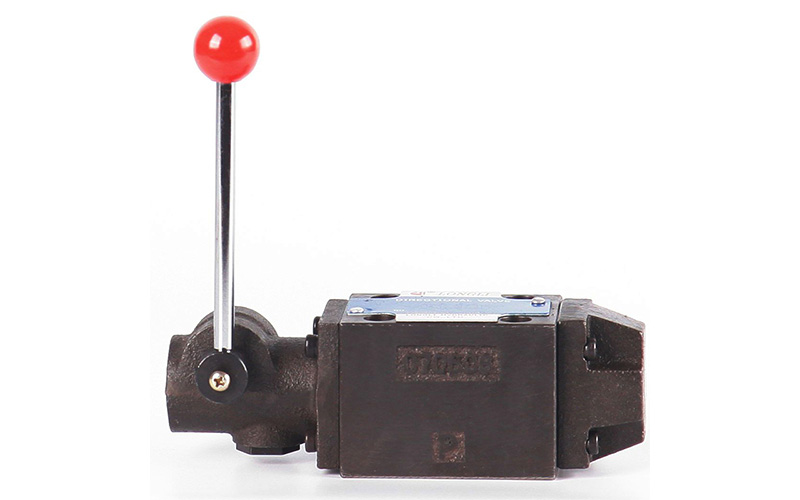

Directional valves type WMM & WMR are lever operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; lever; control spool; return springs. A full array of spools are possible with variations for detented operation on both 2-position or 3-position functions. Flow and pressure rates from 4000 PSI to 5000 PSI and 16 GPM to 32 GPM cover a wide range of applications.
