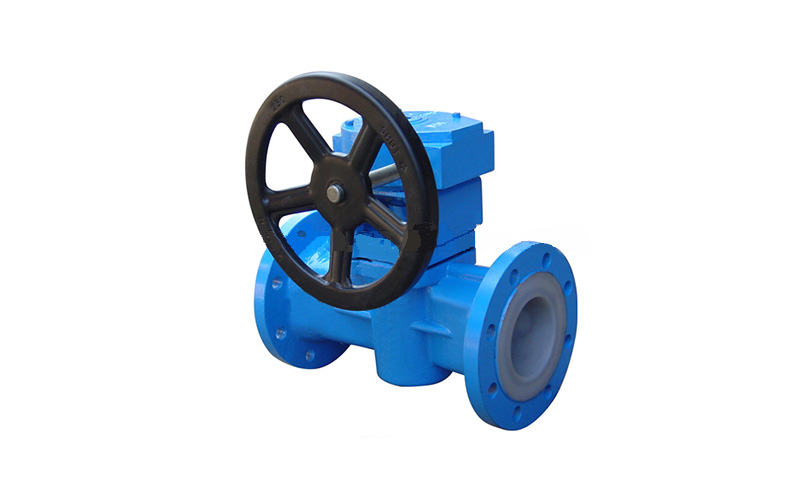

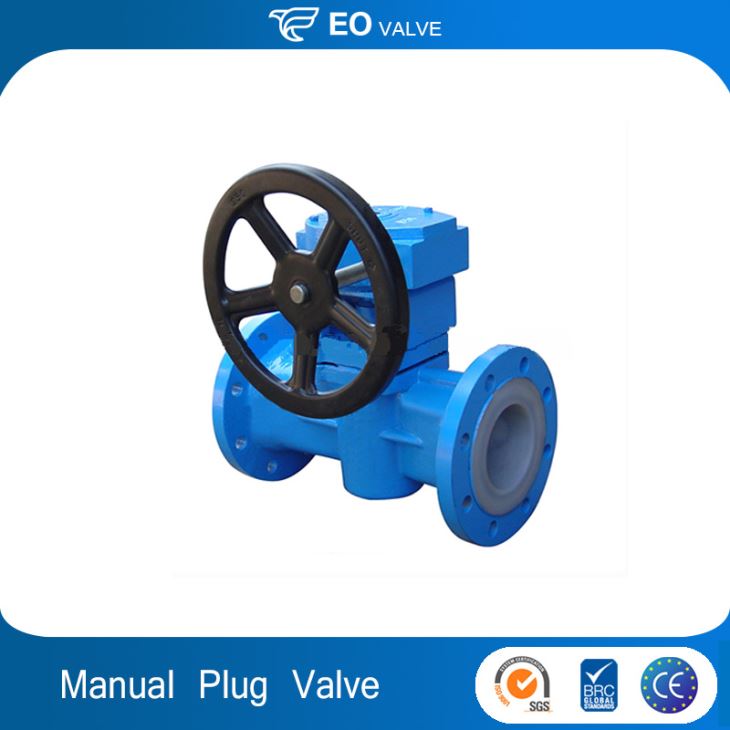

Carbon Steel Manual Twin Seal Plug Valve
Carbon Steel Manual Twin Seal Plug Valve;Temperature of Media:-46℃~560℃ based on material,Port Size:DN15-600(1/2"~24"),Place of Origin:China (Mainland),Model Number:BZ943X,Brand Name:EO,Face to Face Standard:ANSI B16.10; GB/T12221.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Plug |
| Pressure: | Class150lb~2500lb; PN20~100MPa,etc |
| Power: | Handlever, Worm Gear, Pneumatic, Electric |
| Material: | Cast Iron, WCB+HCR,WCC+HCR,CF8,CF8M,CF3,CF3M |
| Temperature of Media: | -46℃~560℃ based on material |
| Media: | Water, Oil, Gas, LNG, Sea Water, etc |
| Port Size: | DN15-600(1/2"~24") |
| Place of Origin: | China (Mainland) |
| Model Number: | BZ943X |
| Brand Name: | EO |
| Application: | General |
| Connection Type: | Flanged, Welding, Sleeve Type |
| Design & Manufacturer Standard: | API594,AIP6D,ASME B16.34;CB/T12240/GB/T22130/HG/T3704 |
| Face to Face Standard: | ANSI B16.10; GB/T12221 |
| Connection Standard: | ANSI B16.5, ANSI B16.47A,ANSI B16.47B;GB/T17241.6/GB/T9113.1 |
| Pressure Test Standard: | API598/API6D;GB/T13927 |
| Packing Material: | Flexible Graphite, PTFE |
| Plug Material: | WCB+ENP,A105,ECC+ENP,CF8,CF8M,CF3,CF3M |
| Standard Range: | ASME, API, DIN, GB,etc |
| Color: | To Order |
Plug Valve Main Parts Material:
| Parts Name | Material |
| Body | Cast Iron, WCB+HCR,WCC+HCR,CF8,CF8M,CF3,CF3M |
| Bonnet | Cast Iron, WCB,WCC,CF8,CF8M,CF3,CF4M |
| Stem | A182 F6A,A182 F304,A182 F316,A182F304L,A182 F316L |
| Plug | WCB+ENP,A105,ECC+ENP,CF8,CF8M,CF3,CF3M |
| O Ring | FPM, Silicon Rubber, Vition, NBR |
| Gland | 410,SS304,SS316 |
| Handwheel | Carbon Steel,WCB,WCC |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
